Disel Feeding Stringing Equipment 12T Pump 24V Electric System 4000×2300×2300mm
Price:
negotiable
MOQ:
1 set
Delivery Time:
30 days
Brand:
GALAXY
Product Description
Stringing Equipment 12T in Main Variable Pump German Rexroth and Hydraulic Instrument German
Product Presentation

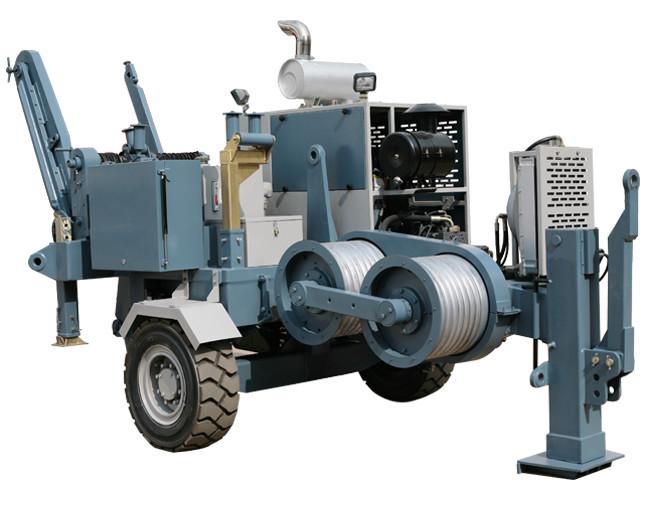

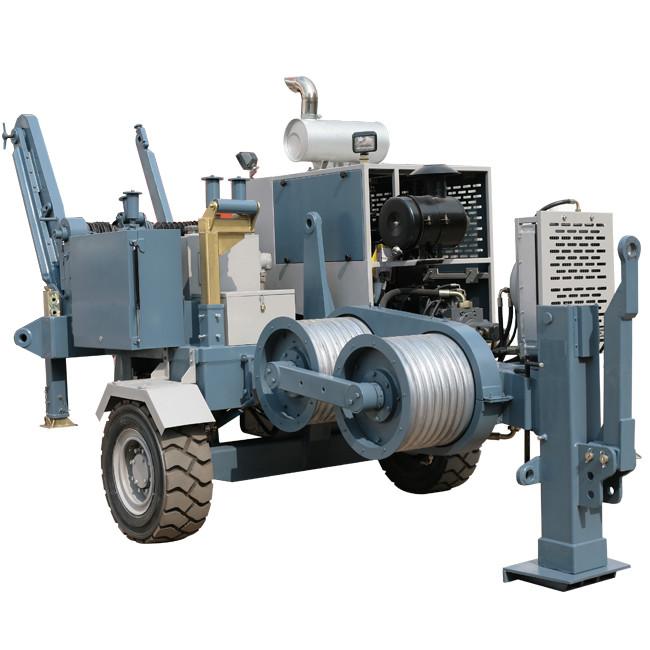

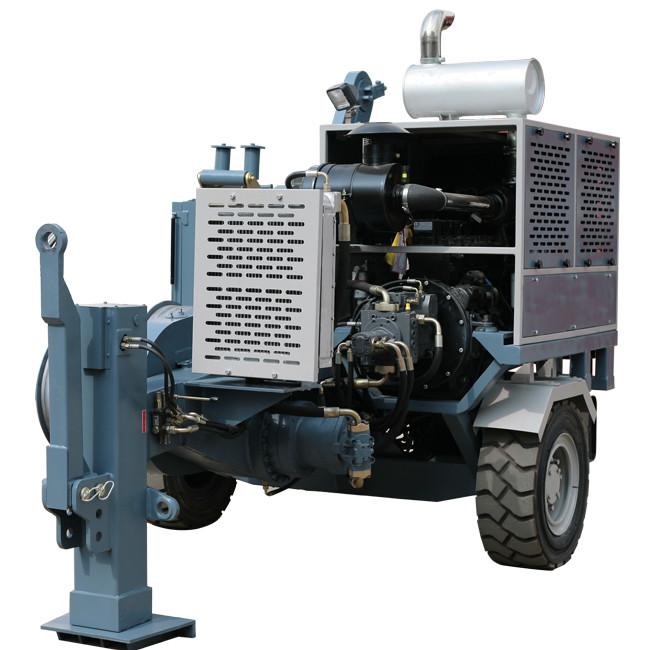

Hydraulic puller fit to pull one rope in stringing operations of overhead transmission lines.
One hydraulic circuit lets to vary continuously the speed in both directions by operating one only control device.
- One pair of multigrooved steel capstans fit for stringing obe steel rope.
- Machine control panel equipped with hydraulic dynamometer and mechanical metercounter.
- Device for setting the pull force, that adjust the speed in order to maintain the force set.
- Chassis with rigid axle, overrun brake and detachable drawbar for towing at low speed in workplace.
- Hydraulic back stabilisers and manual front stabilisers.
- Attachments for anchorage and for lifting.
- Heat exchanger to cool the oil in the hydraulic circuit.
- Reelwinder fit for a 1600-mm-dia reel, with automatic ropewinder.
Structure Parameter
| Diameter of traction wheel | 600mm |
| Dimensions of the whole machine | 4000×2300×2300mm |
| Allow for maximum connector diameter | 1400mm |
| maximum wire rope diameter | 24mm |
| Slot number | 10 |
| Total weight | 4800kg |
Performance Parameter
| Maximum tractive force | 120KN |
| Maximum sustained traction | 100KN |
| Correspending speed | 2.5km/h |
| Maximum sustained tractive speed | 5km/h |
| Corresponding tension | 50KN |
Main Configuration Instructions
| Engine | imported |
| Main variable pump | German Rexroth |
| The main motor, reduction gears | German Rexroth |
| Tailstock motor | America Eton |
| hydraulic instrument | German |
Engine
| Feeding | diesel |
| Cooling system | water |
| Electric system | 24V |
