3.5T Transmission Line Equipment Cable Pulling Oil Cooling System Total 2200kg
Transmission Line Equipment Hydraulic Puller-Tensioner Equipment 3.5T with imported Engine
Structure Parameter
| Bottom diameter of tension wheel groove | 1200mm |
| Trial traverse diameter | 34mm |
| Total weight | 2200kg |
| Boundary dimension | 4000×2000×2300mm |
Performance Parameter
| Maximum intermittent tension | 35KN |
| Maximum pull | 35KN |
| Maximum sustained pull | 20KN |
| Correspending speed | 4.5km/h |
Main Configuration Instructions
| Engine | imported |
| Reduction gear | German Rexroth |
| Hydraulic motor | German Rexroth |
| Pressure gage | German |
| Pressure pump | German Rexroth |
Engine
| Feeding | diesel |
| Cooling system | water |
| Electric system | 24V |
Product Introduction

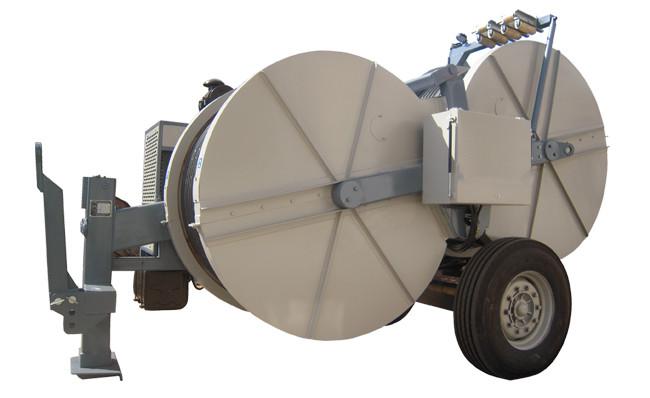

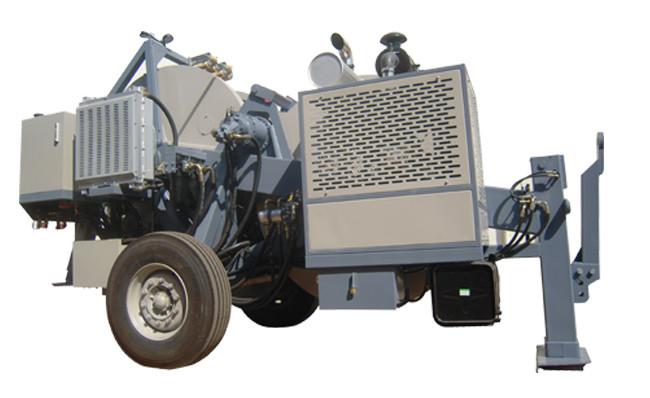

Hydraulic puller-tensioner GX35TP designed to operate either as a tensioner and a puller, fit to string one rope or conductor.
One hydraulic circuit lets to tension at constant force even varying the speed of stringing.
- pairs of steel capstans lined with multi-grooved nylon sectors.
Device to control low-force tensioons(1-15KN), fit for OPGW cables.
-
Chassis with rigid axle, manual brake and detachable drawbar for towing at low speed in workplace.
-
Stabilisers, share and attachments for anchoring the machine.
-
Oil cooling system.
-
Auxiliary hydraulic circuit for additional equipment.
-
Grounding connection point.
