Diesel 77kw 103hp Puller Machine Transmission Line Stringing Equipment
Price:
Negotiable
MOQ:
1 set
Delivery Time:
45 days
Brand:
GALAXY
Product Description

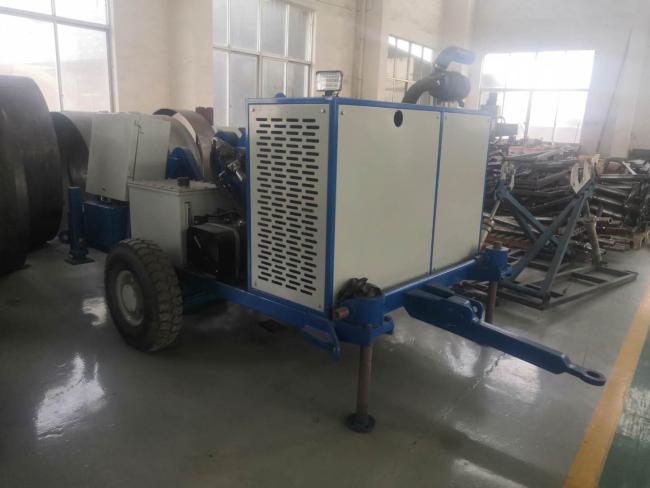

Diesel 77kw 103hp Puller Machine Transmission Line Stringing Equipment
GS-60 Hydraulic Puller
Performance
| Max intermittent pull | 60kN |
| Max continuous pull | 50kN |
| Speed at max pull | 2.5km/h |
| Max speed | 5km/h |
| Pull at max speed | 25kN |
Characteristics
| Bull-wheel diameter | 450mm |
| Groove number | 7 |
| Max rope diameter | 18mm |
| Max diameter of rope reel | 1400mm |
| Total weight | 3500kg |
| Overall dimension (length*width*height) | 3800×2100×2300mm |
- Diesel: 77kw(103hp)
- Cooling system: water
- Electrical system: 24V
- Engine: imported
- Hydraulic meter: German
- Operating handle: German Rexroth
- hydraulic pump: German Rexroth
- Main motor: German Rexroth
- speed reducer: German Rexroth
- Tail bracket hoisting motor: American Eton
Configuration
► Hydraulic dynamometer with set-point and automatic control of maximum pull
► Hydraulic oil cooling system
► Hydraulic front stabilizer
► Grounding connection point
► Control instruments for hydraulic system and diesel engine
► On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
Hydraulic Transmission
- Closed hydraulic circuit for step less speed variation in both rotating directions.
- This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
![]()
![]()
