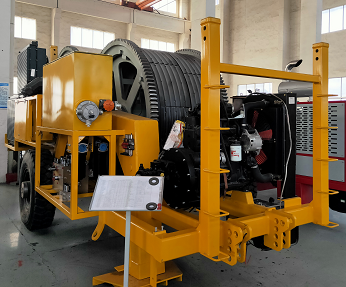

GL2x80 Hydraulic Tensioner

The machine allows for the tension stringing of twin-bundle conductor of 1000mm² in flat lands; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics

Bull-wheel diameter: 1850mm

Groove number: 2x6

Max conductor diameter: 48.75mm

Total weight: 10000kg

Overall dimension (length*width*height):5520×2280×2850mm

Performance

Max tension: 2x100kN / 1x200kN

Rated tension: 2x80kN / 1x160kN

Speed at max tension: 2.5km/h

Max feeding speed: 5km/h

Pull at max speed: 2x40kN/1x80kN

Max reverse pulling force: 2x40kN/1x80kN

Max reverse pulling speed: 3km/h

Main configuration

Engine: imported

Hydraulic pump: German Rexroth/Dnish Danfoss

Main motor:German Rexroth/French Leduc

Speed reducer: German Rexroth

Hydraulic meter: German

Operating handle: German Rexroth

Engine

Diesel 97kw(130hp)

Cooling system water

Electrical system 24V

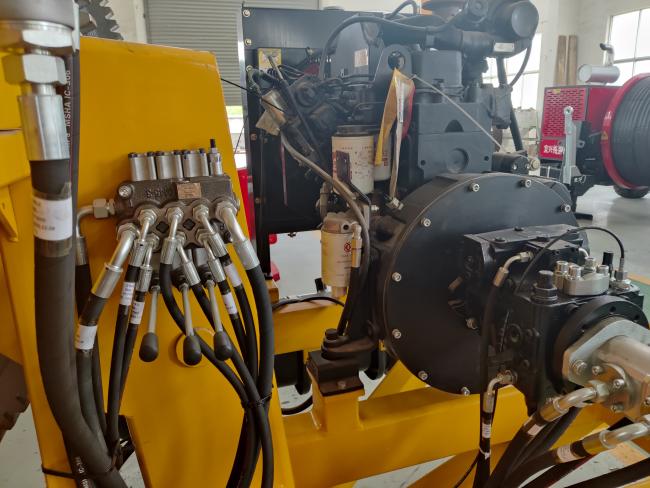

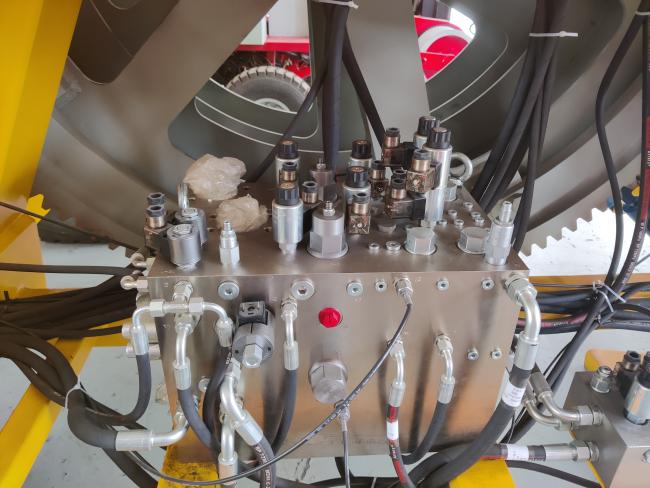

Hydraulic Transmission

The machine can realize step less speed.

The machine is provided with tension presetting system.

Configuration

2 negative self-acting hydraulic brakes

2 hydraulic dynamometers

Hydraulic oil cooling system

2 digital meter counters

2 digital speed meters

Control instruments for hydraulic system and diesel engine

Rigid axle for towing at max speed of 30km/h with mechanical parking brake

Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor

Grounding connection point

Additional Devices

Lighting system for the trailer

2 hydraulic rope/conductor clamp (extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Digital speed and meter counter

Air brake system for the trailer
