7m/Min Underground Cable Pulling Equipment Rated Force 3.5KN Cable Conveyor AC380V
Price:
negotiable
MOQ:
1 set
Delivery Time:
30 days
Brand:
GALAXY
Product Description

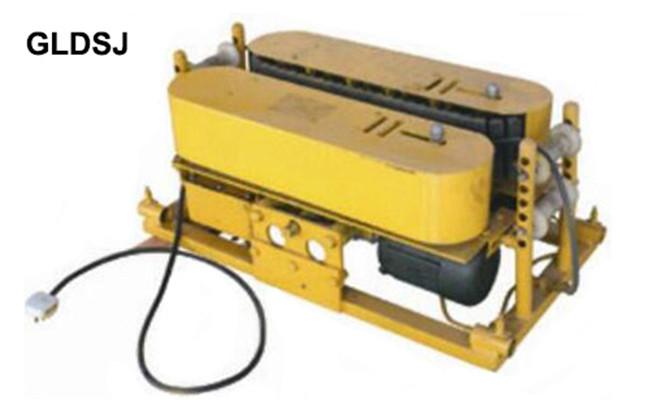

Underground Cable Pulling Equipment Rated Force 3.5KN GLDSJ Cable Conveyor
Performance
| Model | Cable diameter | Power | Rated force | Speed | Clamping force | Motor power | Dimensions | Weight |
| mm | KN | m/min | kN | kW | mm | kgs | ||
| DSJ-3 | 25~165 | AC380v | 3.5 | 7 | <2.7 | 2*1.10 | 980*500*440 | 166 |
| DSJ-5 | 25~180 | AC380v | 5.5 | 7 | <2.7 | 2*1.10 | 980*500*440 | 180 |
| DSJ-8B | 25~185 | AC380v | 8.5 | 7 | <2.7 | 2*1.50 | 1220*730*480 | 265 |
Description
This cable conveyor is used to string large diameter electric power cable and communication cable.
With bilateral track structure, there are rubber covered on the track, it won't damage the cable insulation
