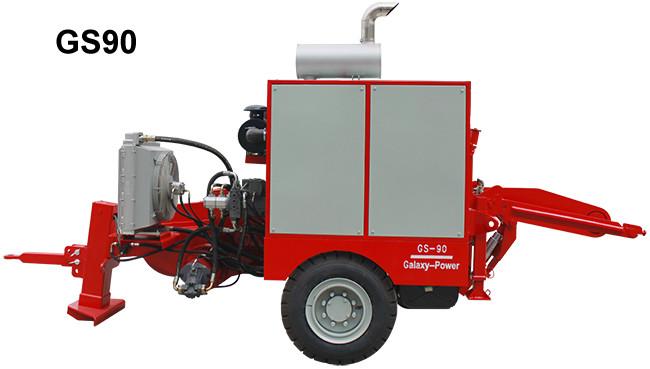

Engine imported 118kw 158hp Hydraulic Pulley Max Intermittent Pull 90kN
Price:
Negotiable
MOQ:
1 set
Delivery Time:
10-30days
Brand:
GALAXY
Product Description
Engine imported 118kw 158hp Hydraulic Pulley Max Intermittent Pull 90kN
Max Intermittent Pull 90kN Engine imported 118kw(158hp) Hydraulic Pulley
| Model |
Max intermittent pull |
Max continuous pull |
Speed at max pull |
Max speed |
Pull at max speed |
Bull-wheel diameter |
Groove number |
Max rope diameter |
Max diameter of rope reel |
Total weight |
Overall diaension |
| kN | kN | km/h | km/h | kN | mm | mm | mm | kg | mm | ||
| GS40 | 40 | 30 | 2.5 | 5 | 20 | 400 | 7 | 16 | 1200 | 3000 |
3600*2600 *2200 |
| GS60 | 60 | 50 | 2.5 | 5 | 25 | 450 | 7 | 18 | 1400 | 3500 |
3800*2100 *2300 |
| GS90 | 90 | 80 | 2.5 | 5 | 40 | 540 | 8 | 21 | 1400 | 4680 |
4000*2200 *2100 |
| GS120 | 120 | 100 | 2.5 | 5 | 50 | 600 | 10 | 24 | 1400 | 4800 |
4000*2300 *2300 |
| GS150 | 150 | 120 | 2.5 | 5 | 60 | 600 | 10 | 24 | 1600 | 5500 |
4300*2300 *2400 |
| GS180 | 180 | 150 | 2.5 | 5 | 75 | 700 | 10 | 27 | 1400 | 6800 |
4300*2360 *2380 |
| GS220 | 220 | 180 | 2.5 | 5 | 90 | 760 | 10 | 30 | 1600 | 6800 |
5300*2360 *2750 |
| GS280 | 280 | 250 | 2.5 | 5 | 120 | 960 | 11 | 38 | 1600 | 12800 |
5800*2500 *2850 |
| GS380 | 380 | 350 | 2.5 | 5 | 170 | 960 | 11 | 38 | 1900 | 13600 |
6000*2600 *2800 |
| Model |
Diesel (kw(hp)) |
Cooling system |
Electrical system (V) |
Engine | Main pump | Main motor speed reducer | Tail bracket hoisting motor | Hydraulic meter | Operating handle |
| GS40 | 77(103) | Water | 24 | imported | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS60 | 77(103) | Water | 24 | imported | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS90 | 118(158) | Water | 24 | imported | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS120 | 129(173) | Water | 24 | imported | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS150 | 129(173) | Water | 24 | imported | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS180 | 239(320) | Water | 24 | imported | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS220 | 239(320) | Water | 24 | imported | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS280 | 298(400) | Water | 24 | imported | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS380 | 440(590) | Water | 24 | imported | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| Hydraulic Transmission |
| Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur. |
