239kw 320hp Overhead Line Stringing Equipment Hydraulic Pulley Long Life
Transmission Line Equipment 239kw(320hp) Hydraulic Pulley With imported Engine
Hydraulic Transmission
Closed hydraulic circuit for reducing speed changes in both directions of rotation. The machine is equipped with a pull preset system that maintains the preset tension value (when the speed drops to “0”) by automatically adjusting the operating speed based on possible friction and unexpected loads.
| Model |
Max intermittent pull |
Max continuous pull |
Speed at max pull |
Max speed |
Pull at max speed |
Bull-wheel diameter |
Groove number |
Max rope diameter |
Max diameter of rope reel |
Total weight |
Overall diaension |
| kN | kN | km/h | km/h | kN | mm | mm | mm | kg | mm | ||
| GS40 | 40 | 30 | 2.5 | 5 | 20 | 400 | 7 | 16 | 1200 | 3000 |
3600*2600 *2200 |
| GS60 | 60 | 50 | 2.5 | 5 | 25 | 450 | 7 | 18 | 1400 | 3500 |
3800*2100 *2300 |
| GS90 | 90 | 80 | 2.5 | 5 | 40 | 540 | 8 | 21 | 1400 | 4680 |
4000*2200 *2100 |
| GS120 | 120 | 100 | 2.5 | 5 | 50 | 600 | 10 | 24 | 1400 | 4800 |
4000*2300 *2300 |
| GS150 | 150 | 120 | 2.5 | 5 | 60 | 600 | 10 | 24 | 1600 | 5500 |
4300*2300 *2400 |

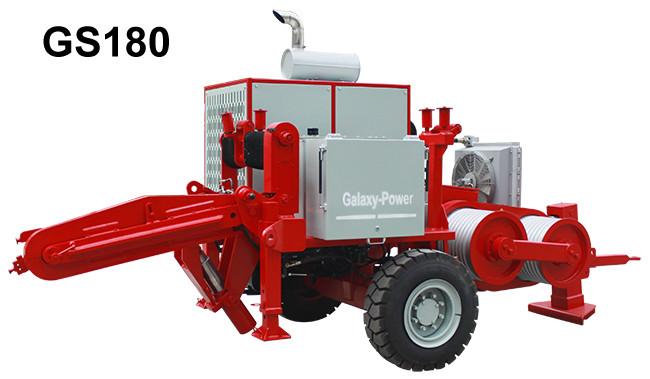

| GS180 | 180 | 150 | 2.5 | 5 | 75 | 700 | 10 | 27 | 1400 | 6800 |
4300*2360 *2380 |
| GS220 | 220 | 180 | 2.5 | 5 | 90 | 760 | 10 | 30 | 1600 | 6800 |
5300*2360 *2750 |
| GS280 | 280 | 250 | 2.5 | 5 | 120 | 960 | 11 | 38 | 1600 | 12800 |
5800*2500 *2850 |
| GS380 | 380 | 350 | 2.5 | 5 | 170 | 960 | 11 | 38 | 1900 | 13600 |
6000*2600 *2800 |
| Model |
Diesel (kw(hp)) |
Cooling system |
Electrical system (V) |
Engine | Main pump | Main motor speed reducer | Tail bracket hoisting motor | Hydraulic meter | Operating handle |
| GS40 | 77(103) | Water | 24 | imported | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS60 | 77(103) | Water | 24 | imported | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS90 | 118(158) | Water | 24 | imported | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS120 | 129(173) | Water | 24 | imported | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS150 | 129(173) | Water | 24 | imported | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS180 | 239(320) | Water | 24 | imported | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS220 | 239(320) | Water | 24 | imported | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS280 | 298(400) | Water | 24 | imported | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS380 | 440(590) | Water | 24 | imported | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
