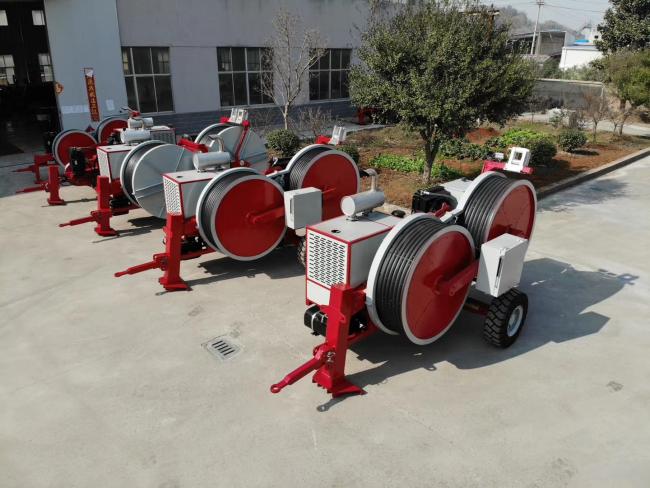

2x40KN High Tensioner 1500mm Bull-wheel Diameter Transmission Line Equipment
2x40KN High Tensioner 1500mm Bull-wheel Diameter Transmission Line Equipment
2x40KN Transmission Line Equipment Description:
The overhead transmission line tension stringing equipments are widely used in overhead transmission Line Conductor
or OPGW tension stringing project. We are the only one to supply whole set of stringing equipment and tools
for transmission line construction
2x40KN Transmission Line Equipment Features:
1) This Tensioner adopts the wear resistant MC nylon lining segments.
2) The infinitely variable pay-off tension can make the constant tension stringing come true.
3) Due to the spring applied hydraulically released multi-plate brake, when the hydraulic failure happens,
it can still work automatically to ensure the safe operation.
4) The groove space is ultra wide.
5) Also be equipped with the hydraulic -power output interface, which is used to connect the shaft bracket of hydraulic wire.
6) Serves to string various types of conductor and earth wires, either one-pull-one or one-pull-two is available.
| Maximum Tension(kN) | 2×45 or 1×90 |
| Continuous Tension(kN) | 2×40 or 1×80 |
| Maximum speed (km/h) | 5 |
| Bullwheel bottom of groove diameter (mm) | Φ1500/1300 |
| Number of grooves | 2×5 |
| Maximum suitable conductor diameter (mm) | Φ40 |
| Dimensions (mm) | 4300 ×2250 ×2700 |
| Weight(kg) | 5800 |
| Engine | imported |
| Hydraulic pump | GermanRexroth/Dnish Danfoss |
| Main motor | German Rexroth/French Leduc |
| Speed reducer | German Rexroth |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
Galaxy power industry limited was established in 2018, a high-tech enterprise in China, We are specializing in
R & D, manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic
puller, tensioner, underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing
accessories and technical service for customer. Galaxy has developed as one of the largest stringing
equipment and tools manufacturer in China which supply more than 200 varieties kinds of goods now.
Production Line:
We have five production lines.
Main configurations of our machine are from Germany and USA
Engine: American imported
Main pump: German Rexroth
Main motor: German Rexroth
Speed reducer: German Rexroth
Tail bracket hoisting motor: Amercian Eton
Hydraulic meter: German
Operating handle: German Rexroth
OEM&ODM:
We can do OEM/ODM. All of our products comply with international quality standards and are greatly
appreciated in a variety of different markets throughout the world.Our products sell in Australia,
Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc.
Our products are also very popular and best-selling in China.
