GL1x40KN 4T Hydraulic Tensioner Transmission Wire Stringing Equipment
Price:
Negotiable
MOQ:
1set
Delivery Time:
15-25 days
Brand:
GALAXY
Product Description

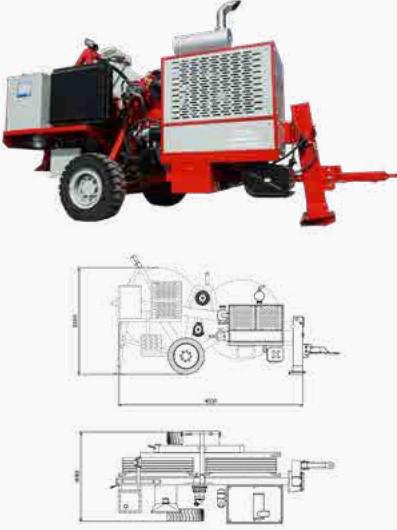

GL1x40KN 4T Hydraulic Tensioner Transmission Wire Stringing Equipment
4T Wire Stringing Equipment HYDRAULIC TENSIONER GL1×40
Operated with 50kN tension machine, this machine is mainly applied in hilly and flat lands for tension
stringing of 500kV conductors, and because of the great convenience brought by the reverse traction
function, it is the better choice for the construction in small projects of transmission lines such as the
modification works of rural and urban networks
4T Wire Stringing Equipment Performance :
Max intermittent tension 45kN
Max continuous tension 40kN
Speed at max pull 2.5km/h
Max speed 5km/h
Tension at max speed 20kN
Max reverse pulling force 35kN
4T Wire Stringing Equipment Engine :
Diesel 77kw(103hp)
Cooling system water
Electrical system 24V
4T Wire Stringing Equipment Characteristics :
Bull-wheel diameter 1300mm
Max conductor diameter 40mm
Max Optical fiber cable diameter 21mm
Groove width 55mm
Groove number 5
Total weight 3430kg
Overall dimension 4000×2000×2300mm
4T Wire Stringing Equipment Main Configuration :
Engine imported
Hydraulic pump GermanRexroth/Dnish Danfoss
Main motor German Rexroth/French Leduc
Speed reducer German Rexrothn
Hydraulic meter German WIKA
Operating handle German Rexroth
Configuration:
·Hydraulic dynamometers
·Hydraulic oil cooling system
·Mechanical meter counters
·Grounding connection point
·Hydraulic power pack to control drum stands with hydraulic motor
Hydraulic Transmission :
·The machine can realize step less speed
·The machine is provided with tension presetting system
Additional Devices :
·Lighting system for the trailer
·Air brake system for the trailer (extra charge)
·Hydraulic conductor clamps for drum change operations (extra charge)
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
·Digital speed and meter counter
