5 Grooves 1x40KN 4T Relese Conductor Wire Hydraulic Cable Tensioner Machine
Price:
Negotiable
MOQ:
1set
Delivery Time:
15-25 days
Brand:
GALAXY
Product Description

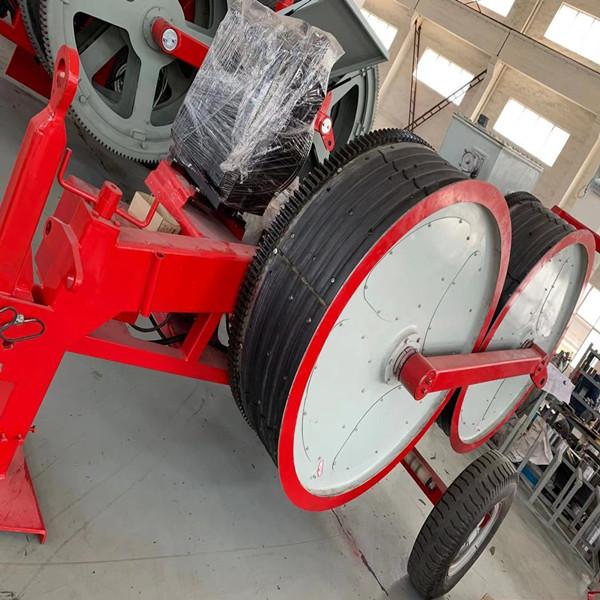

SA-ZY40 5 Grooves 1x40KN 4T Relese Conductor Wire Hydraulic Cable Tensioner Machine
1x40KN Hydraulic Tensioner Machine Description :
GL1x40 KN is suitable for tension stringing single conductor, OPGW or earth wire, pilot wire rope on overhead transmission line.
It is equipped diesel engine for pulling back and rewinding operation.
1x40KN Hydraulic Tensioner Machine Performance :
|
Max intermittent tension 45kN
Max continuous tension 40kN
Speed at max pull 2.5km/h
Max speed 5km/h
Tension at max speed 20kN
Max reverse pulling force 35kN
|
1x40KN Hydraulic Tensioner Machine Engine :
|
Diesel 77kw(103hp)
Cooling system water
Electrical system 24V
|
1x40KN Hydraulic Tensioner Machine Characteristics :
|
Bull-wheel diameter 1300mm
Max conductor diameter 40mm
Max Optical fiber cable diameter 21mm
Groove width 55mm
Groove number 5
Total weight 3430kg
Overall dimension 4000×2000×2300mm
|
1x40KN Hydraulic Tensioner Machine Main Configuration :
|
Engine imported
Hydraulic pump GermanRexroth/Dnish Danfoss
Main motor German Rexroth/French Leduc
Speed reducer German Rexrothn
Hydraulic meter German WIKA
Operating handle German Rexroth
|
Configuration :
·Hydraulic dynamometers
·Hydraulic oil cooling system
·Mechanical meter counters
·Grounding connection point
·Hydraulic power pack to control drum stands with hydraulic motor
Hydraulic Transmission :
·The machine can realize step less speed
·The machine is provided with tension presetting system
Additional Devices :
·Lighting system for the trailer
·Air brake system for the trailer (extra charge)
·Hydraulic conductor clamps for drum change operations (extra charge)
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
·Digital speed and meter counter
