10/350μs Type 1 Power Surge Arrester 50KA Lightning Protection Device Plastic
Price:
Negotiable
MOQ:
100 Piece/Pieces
Delivery Time:
Shipped in 25 days after payment
Brand:
BRITEC
Product Description
Type 1 Power Surge Arrester 10/350μs (50KA) Features:
• 10/350μs (50kA 3P) Suitable for TN-C systems
• Nominal discharge current In(8/20μs) : 50kA
• The Type 1 surge protector is mainly installed in the main inlet cabinet of the building as the first-level lightning protection of the building power distribution system.
• With indication window and remote control contacts.
• Maximum continuous operating voltage Uc 150VAC/275VAC/320VAC
• BR-50GR series are Type 1 surge protective devices designed to discharge high current surges without any damage to the back-up electrical equipment.
• limp(10/350μs) : 50kA
Type 1 Power Surge Arrester 10/350μs (50KA) Technology characteristic:
| Specification | BR-50GR 275 3P |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 1 + Type 2 |
| SPD dassification according to IEC61643-11 | Class I + Class II |
| Max continuous 0perating a.c. voltage Uc | 275V |
| Lightning impulse current (10/350µs) limp | 50kA |
| Nominal discharge current (8/20µs) In | 50kA |
| Maximun discharge current (8/20µs) Imax | 200kA |
| Voltage protection level Up | ≤1.8kV |
| Follow current extinguishing capability a.c. lfi | 3kA rms |
| Max. backup fuse | 350A gG |
| Response time tA | ≤100ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm² |
| Cross-section area (Max.) | 35mm² |
| Enclosure material | Thermoplastic UL94-V0 |

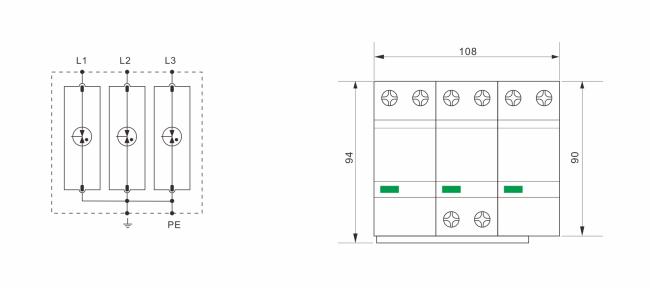

Dimension:
Type 1 Power Surge Arrester 10/350μs (50KA) Application:
• Used in the lightning protection zones concept at boundary LPZ0B-LPZ1.
• For protecting low-voltage consumer's installations against indirect lightning discharges.
• Protect electrical and electronic equipment against transients, originating from lightning, switching of transformers, lighting, and motors.
Type 1 Power Surge Arrester 10/350μs (50KA) Advantage:
• Unique designing, patent technology.
• High discharge capacity.
• Low residual voltage.
• DIN rail mountable and ease of installation.
• Quick thermal response self-protected design.
Type 1 Power Surge Arrester 10/350μs (50KA) Installation:
• Installed at the entrance point of the building, in the main distribution board of this installation.
• It should be used as part of lightning protection systems i.e. when lightning rods or meshed cages are installed.
• Must install SPD strictly according to the wiring diagram provided.
• Better to under the guidance of professional electrician.
• Green tab, normal work status, Red tab, failure status, need to be replaced Rapidly.
Type 1 SPD installation: Type 1 AC Surge Protection Device (SPD) are heavy-duty devices designed to be installed at the origin of AC installations equipped with a Lightning Protection System (LPS).
Type 1 SPD wiring diagram: 3 phase Surge Protector Installation: For a three-phase system, the SPD connects to L1, L2, L3 (live phases), N, and PE.
What does spd stand for in electrical: The Surge Protection Device (SPD) is a component of the electrical installation protection system.
Our Services:
• 21 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.
Shipping:
Company information:
Wenzhou Britec Electric Co., Ltd. is located in the Yueqing city. Britec is dedicated to development, manufacture, marketing and service of low voltage surge arrester products. The rapidly-developed regional economy and friendly investment environment ensure Britec’s sustainable developments and continuous innovations. It is professional in producing SPD.
FAQ:
Q1. Are you manufacturer or trading office?
A: We are manufacturer in Wenzhou, with the ability to export by ourselves.
Q2: Do you support OEM or ODM?
A: Yes, we support OEM & ODM.
Q3: How's your product markets?
A: Our products are welcomed among Europe, South America, Asia and certain countries in Africa, win us a good reputation.
Q4. How’s your warranty?
A: All our products are 5-years warranted.
