BR-25GR 25KA 2P Surge Protector Household Arrester 150V / 275V / 320V

Price Negotiable

Price: Negotiable

MOQ: 100 Piece/Pieces

Delivery Time: Shipped in 25 days after payment

Brand: BRITEC

Product Description

Surge Protector BR-25GR 25KA 2P Features:

• Suitable for 50/60Hz ac system

• Voltage protection level UP < 1.8Kv.

• Meet the SPD Type 1 test

• Standardized 35mm rail mounting.

• Used to suppress transient overvoltage, discharge surge energy, so as to protect the system circuit and equipment.

• Compliant with EN / IEC 61643-11 standards.

Surge Protector BR-25GR 25KA 2P Technology characteristic:

Specification	BR-25GR 2P
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1 + Type 2
SPD dassification according to IEC61643-11	Class I + Class II
Max continuous 0perating a.c. voltage Uc	275V
Lightning impulse current (10/350µs) limp	25kA
Nominal discharge current (8/20µs) In	25kA
Maximum discharge current (8/20µs) Imax	100kA
Voltage protection level Up	≤1.8kV
Short-circuit current rating lsccr	25kA rms
Max. backup fuse	315A gG
Response time tA	≤100ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Enclosure material	Thermoplastic UL94-V0

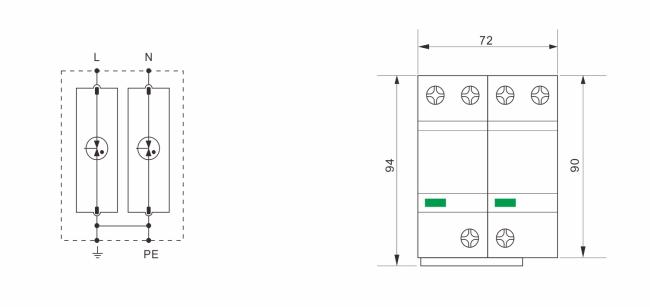

Dimension:

Surge Protector BR-25GR 25KA 2P Application:

• Suitable for 50/60Hz ac system

• Widely used in mobile communication base stations, microwave communication bureaus/stations, telecommunication rooms, industrial mining, civil aviation, financial securities and other power systems.

• Used to suppress transient overvoltage, discharge surge energy, so as to protect the system circuit and equipment.

• Against surges at direct lightning stroke (in presence of lightning conductor)and against indirect surges on the electrical networks.

Surge Protector BR-25GR 25KA 2P Advantage:

• High flame retardant, anti-corrosion.

• Reliable quality and long service life.

• Large discharge energy.

• High protection level.

Surge Protector BR-25GR 25KA 2P Installation:

• Type 1 or Type 1+2 SPD (Iimp ≥ 12.5 kA) compulsory at the installation source (main distribution board in secondary buildings).

• Installations more than 10 m high (apartment buildings, office buildings, hotels, etc): type 2 SPD recommended for protecting private areas and floor distributors (communal areas) in addition to a type 1 or type 1+2 SPDs.

• Installations with numerous private areas (apartment buildings, office buildings, etc): type 2 SPD where In ≥ 5 kA compulsory at the source of each private area if the type 1 or type 1+2 SPDs cannot be installed at the installation source.

Our product same as the L&T SPD device offers reliable protection against power surges caused by lightning strikes or electrical faults.

Class B SPD: Two-pole arrester in the specification class B for the protection of electrical consumer installations and equipment in case of overvoltage or direct lightning strikes.

Electrical spd meaning: Surge Protective Devices (SPD) are used to protect the electrical installation, which consists of the consumer unit, wiring and accessories, from electrical power surges known as transient overvoltages.

Our Services:

• 21 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Company Information:

Wenzhou Britec Electric Co., Ltd. is located in Yueqing city, which on the coast of the East China Sea. It is a professional manufacturer engaged in the development, production, sales and service of low-voltage surge protection device products. Equipped with domestic advanced production lines and sophisticated testing equipment. The company's leading products include AC surge protectors, DC surge protectors for low-voltage power distribution systems, data lightning protection devices, LED surge protectors etc.

Factory:

Shipping:

Certificate:

FAQ:

Q1: Are you a factory or trading company?
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.

Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.

Q3: Can I have a visit to your factory before the order?
A3: Welcome! Our factory address: Block 1, BoTongHuiGu Industrial Park, Yueqing Economic Developement Zone, Yueqing, Zhejiang, China.

Q4: What's about MOQ?
A4: First order MOQ=100pcs.
