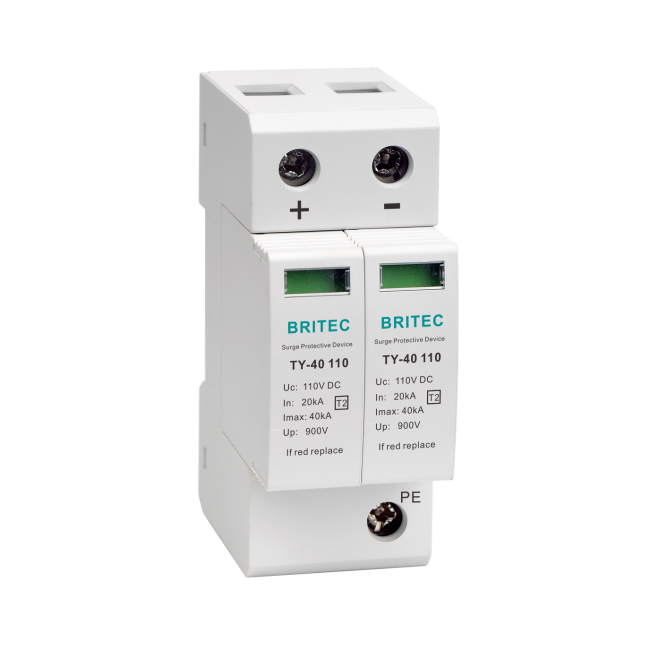

TY-40 110 DC SPD Pv Surge Protection Device Lightning Protection Surge Arrester surge protection dc
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
15 days after receipt of deposit
Brand:
BRITEC
Product Description
DC 110V 40kA Lightning Protector Type 2 Low Voltage Arrester Introduction:
• High current discharge ability, quick response, low residue voltage, safe and high reliability
• Designed according to IEC standards.
• Plastics shell of flame retardant materials (Class UL94-V0) can effectively prevent the occurrence of fire
• It is designed as module
• Automatic fault release device for over-current, over-heating protection
• The main module and the base are replaceable.
• Remote signal alarm connectors and local alarm color indication window
• It is suitable for equipment of DC power supply voltage LPZ2 protection zone of buildings.
• Easy installation, it can fix on 35mm DIN rail
DC 110V 40kA Lightning Protector Type 2 Low Voltage Arrester Product detail:
| 2 Mod | TY-40 110 |
| SPD classification according to IEC61643-31 | Class II |
| Max. Continuous Operating Voltage Uc | DC 110V |
| Nominal discharge current (8/20us) In | 20kA |
| Max. discharge current (8/20us) Imax | 40kA |
| Voltage protection level Up | ＜900V |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ |
| Operating state / fault indication | green / red |
| Technology | MOV |
| Format | Plug-in modular |
| Protection Mode | +/PE,-/PE |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 |
| Standards compliance | IEC 61643-31 / EN 61643-31 / UL1449 ed.4/GB 18802.1 |
Dimension:
DC 110V 40kA Lightning Protector Type 2 Low Voltage Arrester Application:
• DC surge protective device for protection of equipment from surge and transient over-voltage induced by lightning stroke.
• It is mainly applicable for the Direct Current surge protection and over voltage protection in the fields of low voltage DC power supply.
DC 110V 40kA Lightning Protector Type 2 Low Voltage Arrester Operating environment:
• Operating temperature: -40℃~+80℃
• Relative humidity:5%-95%
• Atmosphere pressure:70kPa~106kPa

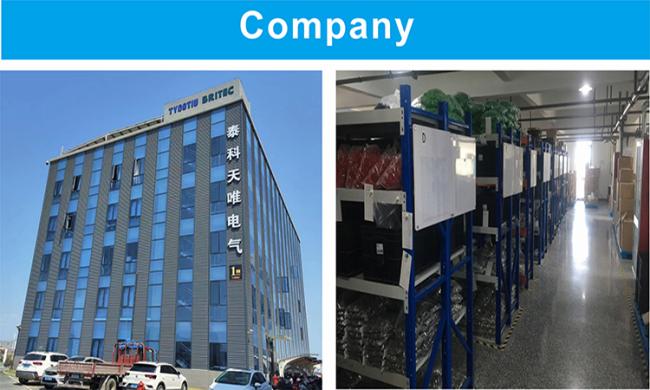

Company information:
