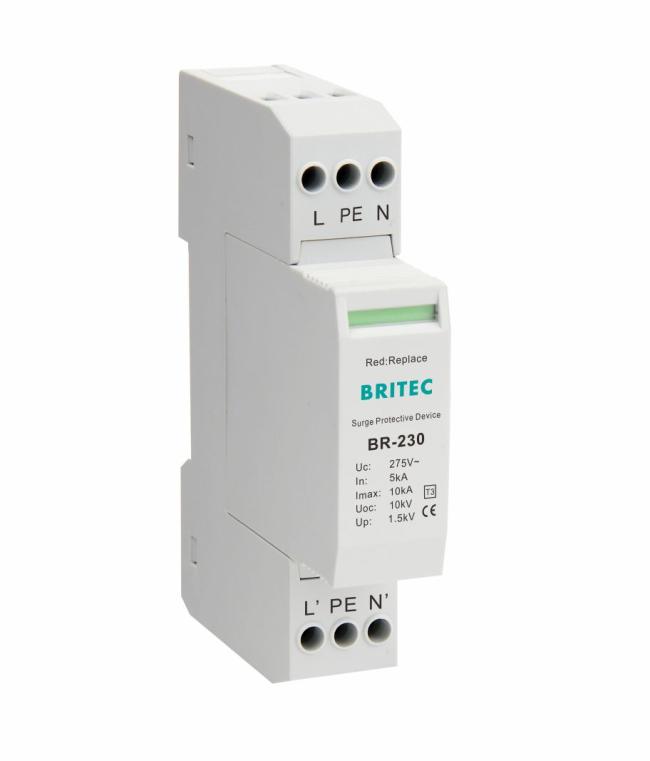

BR230-23 Type 3 Surge Protective Device 275V 10kA Surge Arrester SPD
The Surge Protective Device Type 3 provides reliable protection against damaging voltage surges in electrical systems. Designed to safeguard against indirect lightning strikes, utility switching, and other transient disturbances, this device ensures the safe operation of electrical equipment and appliances.
- Type 3 SPD classification for comprehensive surge protection
- Ultra-fast response time: ≤25ns
- Wide voltage rating: 30-275V
- Nominal operating voltage: 275V
- Maximum discharge current: 10kA
- Maximum discharge voltage: 1.5kV
- Durable thermoplastic UL 94-V0 material
- High-quality construction for reliable performance
| Parameter | Specification |
|---|---|
| Waveform | 8/20 |
| Protection Class | Type 3 |
| System | Low Voltage |
| Uoc | 10kV |
| Product Type | Surge Protective Device |
| Material | Thermoplastic UL 94-V0 |
| Nominal Operating Voltage | 275V |
| Response Time | ≤25ns |
BRITEC Surge Protective Device Type 3 is suitable for various applications including residential, commercial, and industrial buildings, telecommunications, data centers, HVAC systems, security systems, and electronic equipment protection.
- Brand: BRITEC
- Model: BR230-230
- Certifications: TUV, CB, CE, ROHS, ISO9001
- Minimum Order: 1 piece
- Supply Capacity: 1,000,000 units per month
- Delivery: Shipped within 15 days after payment
Each surge protector is carefully packaged in protective bubble wrap and sturdy cardboard boxes with additional filler material. We offer standard ground shipping via UPS, FedEx, or DHL, with expedited and international shipping options available.
