AC 275V SPD Power Surge Protection Device Whole House Lightning Surge Protector 4 Poles
AC 275V SPD High Quality 4 Poles Power Surge Protection Device
AC 275V SPD Power Surge Protection Device Features:
• Maximum current of endure the lightning stroke 40KA.
AC 275V SPD Power Surge Protection Device Technology characteristic:
| BR-40 275 4P | |
| SPD classification according to IEC61643-11 | Class II |
| Max. continuous operating a.c. voltage Uc | 275V |
| Nominal discharge current (8/20us) In | 20kA |
| Max. discharge current(8/20μs) Imax | 40kA |
| Voltage protection level Up | ≤1.3kV |
| Max. backup fuse | 125A gG |
| Degree of protection | IP20 |
| Enclosure material | Thermal plastic UL94-V0 |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ |
| Relative Humidity | ≤95% |
| For mounting on | 35mm Din rail |
| Color | White, Gray, Black, Red, Yellow and Customized |
| Operating state / fault indication | green / red |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| OEM | Yes |
Dimension:
AC 275V SPD Power Surge Protection Device Advantage:
• High energy surge protection.
Company Information:

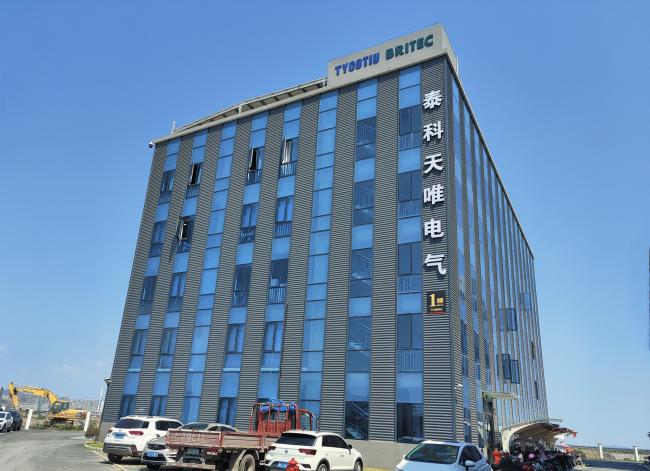

Britec is a specialized manufacturer of SPDs, founded in 2003. As a professional SPD manufacturer, we can supply all kinds of low voltage surge protection, and our products has been widely used in electric power, construction, and other fields. Our company has advanced testing equipment, which can ensure all of our products are excellent. Our products have gained CE, CB, and TUV certificated.
Production process:
Certification:
FAQ:
1. Are you trading company or manufacturer?
A: We are factory.
2. How long is your delivery time?
A: Generally it is 20 days, it is according to quantity.
3. Do you provide samples? Is it free?
A: Yes, we could provide samples, but it is not free.
4. What is your terms of payment?
A: Payment ≤5000USD, 100% in advance. Payment ＞5000USD, 30% T/T in advance, balance before shippment.
