Thermal Plastic Type 2 Surge Protection Device 70kA 1P + NPE AC SPD Surge Arrester

Price Negotiable

Price: Negotiable

MOQ: 200 piece / pieces

Delivery Time: 15-30 days after payment

Brand: BRITEC

Product Description

Thermal Plastic Type 2 Electrical Protection Device 70kA 1P+NPE AC Single Phase SPD Surge Arrester

Thermal Plastic Type 2 Surge Protection Device Feature:

• Type 2 Surge Protector

• Discharge currents : In : 30 kA / Imax : 70 kA

• Pluggable module by phase

• Remote Signalling in option

• IEC 61643-11 and EN 61643-11 compliance

• This product has passed the standard test of 8/20us (level II test).

• BR-70 series are designed to meet all your surge protection needs for any low voltage installation

Thermal Plastic Type 2 Surge Protection Device Product Details:

	BR150 70 1P+NPE	BR275 70 1P+NPE	BR320 70 1P+NPE	BR385 70 1P+NPE
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage _(L-N)Uc	150V	275V	320V	385V
Max. continuous operating a.c. voltage _(N-PE)Uc	255V	255V	255V	255V
Nominal discharge current (8/20us) In	40kA	40kA	40kA	40kA
Max. discharge current(8/20μs) Imax	70kA	70kA	70kA	70kA
Voltage protection level _(L-N)Up	≤1.0kV	≤1.7kV	≤2.0kV	≤2.3kV
Voltage protection level _(N-PE)Up	≤1.5kV	≤1.5kV	≤1.5kV	≤1.5kV
Follow current extinguishing capability (N-PE) a.c. Ifi	100Arms	100Arms	100Arms	100Arms
Max. backup fuse	200A gG	200A gG	200A gG	200A gG
Response time _(L-N/N-PE)tA	≤25ns/≤100ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20
Order Code	B8360	B8362	B8364	B8366
Order Code (With remote signaling)	B8361	B8363	B8365	B8367

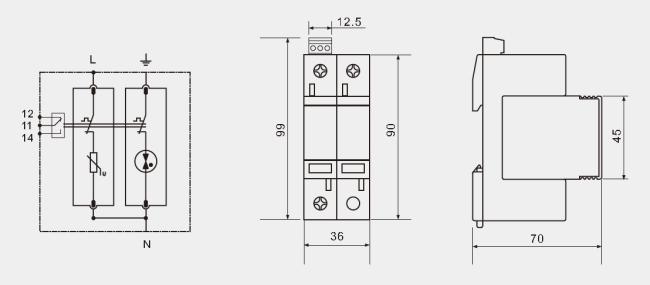

Dimension:

Thermal Plastic Type 2 Surge Protection Device Application:

• Protection of AC Power System

• Protection of power distribution system

• Protection of terminal devices

• Protect for sensitive electronic equipment, telecom centers, automatic control centers, intelligent buildings, industrial enterprises, and medical institutes.

• This SPD is particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high, for example: buildings equipped with lightning rods.

Thermal Plastic Type 2 Surge Protection Device Advantage:

• Eeasy to install in any standardized distribution pane or control cabinets.

• Equipped with a thermal disconnection device and provide real-time fault indicators thus allowing complete operational safety.

• The design of BR-70 is based on the use of a pluggable module that plugs into a matching receptacle. This makes replacement, and checking very easy without impairing the protection function.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester

• All products will be well packed before shipping

• Standard packaging, and you can also tell us your own requirements on packaging

• Faster delivery

• Individually Tested Prior to Shipment

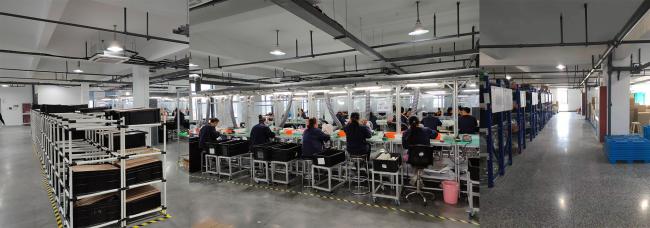

Product process:

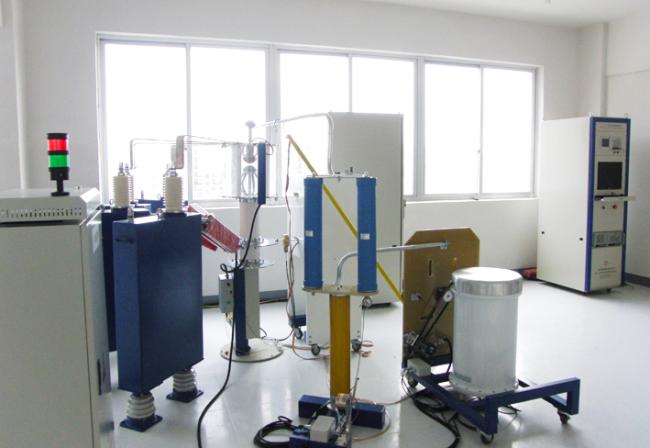

Test instrument:

Quality assurance:

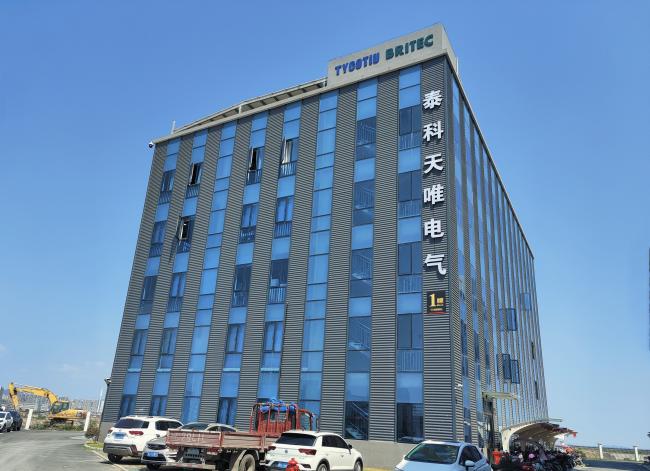

Company profile:

Wenzhou Britec Electric Co.,Ltd. is founded in 2003, which is a professional SPD manufacturer. And through the unremitting efforts of company leaders and employees, it has formed a one-stop service enterprise integrating technology, research and development, design, production and sales, and is committed to creating high-quality surge protection products. Our products have been tested and certified by testing agencies and hold certification certificates.

Why need surge arrester?

• Surge arrester are designed to interrupt and divert transient surge events to ground. Surge events are responsible for a big amount of damage annually and can be caused by electrical storms or bank switching on electrical distribution lines. These events can effect sensitive electrical equipment, telephone networks, and computer networks.

• SPDs designed to protect sensitive equipment, minimize preventative maintenance, and prevent unscheduled equipment downtime.
