BRPV3-1500 DC 1500V 3P PV Solar pv surge arrester 40ka Surge Protector dc spd dc spd 1500v 3 pole
1500V 40kA 3P dc solar PV surge protection device SPD solar arrester
solar arrester Feature:

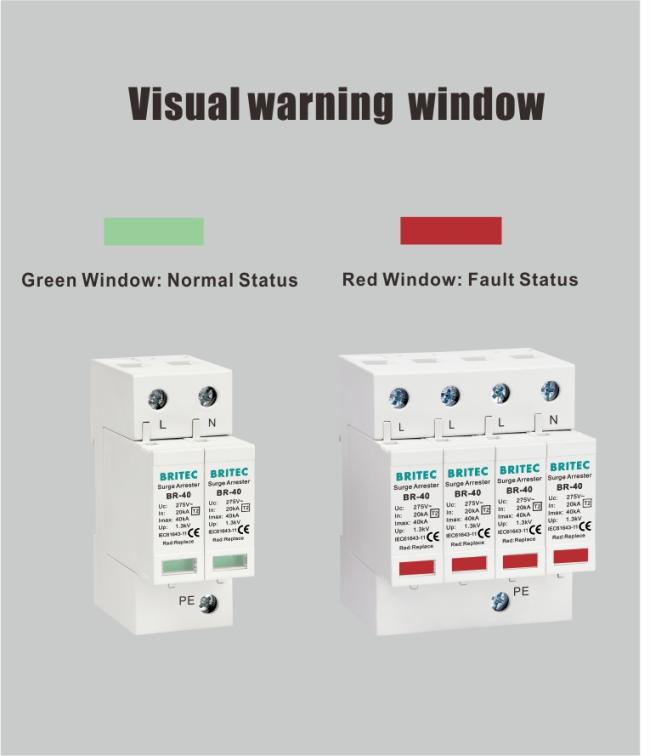

1. Indicator window is obvious (green is OK, red indicates failure)
2. Fully enclosed terminal
3. The shell is made of PC flame retardant material, fire insulation
4. Replaceable module
solar arrester Product Details:
| BRPV3 1500 | |
| SPD classification according to EN61643-31 | Type 2 |
| SPD classification according to EN50539-11 | Class II |
| Max. continuous operating dc voltage Ucpv | 1500V |
| Nominal discharge current (8/20us) In | 20kA |
| Max. discharge current (8/20us) Imax | 40kA |
| Voltage protection level [(DC+/DC-)→PE] Up | ≤5.2kV |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ |
| Operating state / fault indication | green / red |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 |
solar arrester Dimension:
SPD Type 2 for 1500 V DC photovoltaic systems
• Replaceable varistor modules with colour code
• Visual and remote signalling of varistor status
• Surge arrester for protection of DC side 1500 V systems in photovoltaic applications.
solar arrester Advantage:
Our Services:
Why need surge arrester?
Installation instruction:
Company profile:
Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!
Our certificate:
We got Certificate:TUV, CE, CB, IEC etc. ISO9001,ISO14001,ISO45001
Payment:
| Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment. |
| FOB | |||
| CIF | 30% T/T in advance, paid the balance against copy of B/L. | ||
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight. | ||
| Paypal | Amount lower than 5000usd. | ||
| Delivery Time | 15-30 days after receiving deposit. | ||
Factory:
FAQ:
Q1: How long is your products warranty?
A: The warranty period of our products is 5 Years.
Q2: How about inspection?
A: We have the whole inspection system from raw material to end products.
Q3: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.
