GCWM-2015 15kW/2450MHz CW Magnetron

GCWM-2015 is a directly-heated pure tungsten cathode, non-packaged, CW magnetron of metal ceramic construction. Its magnetic field must be supplied by electromagnet installed outside of magnetron. The cathode pinout and output terminal adopt Forced air, the anode use direct water cooling. Microwave power be output from axial antenna of magnetron, and it can directly launch into WR430 waveguide for microwave head of microwave system equipment.

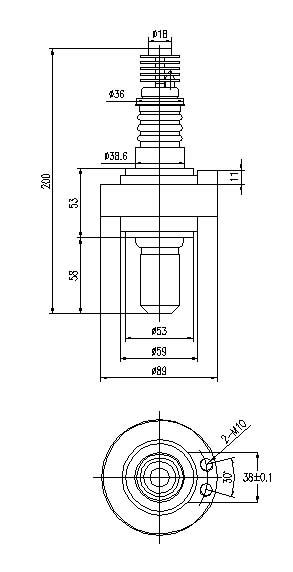

Main Parameter:

Specification Typical

Frequency: 2420-2480MHz 2450MHz

Output Power: 15 kW

Anode Voltage: Max. 12.6 kV

Anode Current: Max. 1.8 A

Filament Voltage(standby): 7.8V - 9.2V 8.5 V

Filament Current: 47 A

Electromagnet Current: 3.2 A

Cooling:

Anode cooling water flow rate: 8 l/min

Filament terminal air cooling: 0.1 m3/min

Output ceramic window air cooling: 0.3 m3/min
