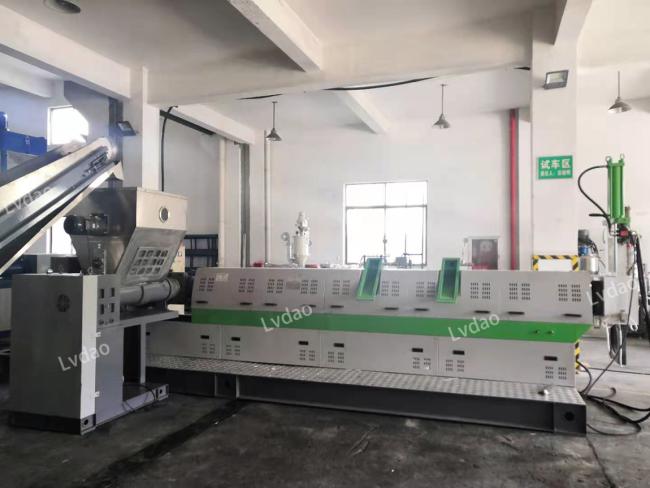

High Output Waste Film Plastic Recycling Granulating Machine Line
LDS series plastic pelletizing machine
Usage:
Side feeder plastic recycling machine can also recycle soft film and hard scrap.dry material and wet material.It is new design and powerful.
The capacity is from 100kg/h-500kg/h.Side feed can avoid the blocking caused by force feeder,especially for high capacity machine.It can improve the capacity when solve the feeding problem.
Features:
1) It is suitable for both soft film and hard scrap,dry material and wet material.
2) You can choose crusher with blower or conveyor to feeder the material according to your demand.
3) Side feed can avoid the blocking caused by force feeder,especially for high capacity machine.
4) You can choose water tank or hot cutting system.
| Model | Screw dia.(mm) | Long dia. ratio | Output(kg/h) | Power(kw) | Rotate speed(r/min) |
| LDS-SJP-120-115 | Ø120,Ø115 | 28:1,10:1 | 150-200 | 45/15 | 10-75 |
| LDS-SJP-130-120 | Ø130,Ø120 | 28:1,10:1 | 200-250 | 55/18.5 | 10-75 |
| LDS-SJP-140-130 | Ø140,Ø130 | 28:1,10:1 | 250-300 | 75/22 | 10-75 |
| LDS-SJP-150-140 | Ø150,Ø140 | 28:1,10:1 | 300-350 | 90/30 | 10-75 |
| LDS-SJP-160-150 | Ø160,Ø150 | 28:1,10:1 | 350-400 | 90/30 | 10-75 |
| LDS-SJP-170-150 | Ø170,Ø150 | 28:1,10:1 | 400-450 | 110/37 | 10-75 |
| LDS-SJP-180-160 | Ø180,Ø160 | 28:1,10:1 | 500-600 | 132/37 | 10-75 |
