PVC PET hydraulic screen changer add steal sealing ring filter area 220*220mm
PVC PET hydraulic screen changer add steal sealing ring pevent the material overflow
PVC PET hydraulic screen changer add steal sealing ring filter area 220*220mm
Production information:
1)This screen changer installs steel sealing ring which can prevent the material overflow,saving material and reducing cost.
2)It has the single board and single net design, which is suitable for clean first grade materials or new granulating machine, easy operation.
3)Screen changer can not only filter the impurities, but also can significantly improve the plasticizing and homogenization effect of the raw material. In this way, it can make the product structure more homogeneous and product surface more smooth, thus improve the quality of extruded products. In a word,screen changer can reduce the unit cost and increase hourly output.
4)The semi-continuous hydraulic slide-plate screen changer utilizes a fast-acting hydraulic cylinder to move the screen packs in and out of the melt flow.
Features:
1.Exhaust system device can fully exclude the gas mixed in the materials and improve the product
quality.
2. Apply to extrusion production in a wide range of materials and product.
3.The good sealing system with steel sleeve ensures perfect sealing effect.
4.. The function of filling material exhaust and pollution discharge guarantees the process of replacing
screen continuously.
5. We design and manufacture products of various sizes according to the customers' requirement
Specifications:
| Model | Filter area | Screw dia | Die cube |
| LD-MD-01 | 140×140 | 65 | 0.3 |
| LD-MD-02 | 160×160 | 80 | 0.35 |
| LD-MD-03 | 180×180 | 90 | 0.4 |
| LD-MD-04 | 200×200 | 100 | 0,45 |
| LD-MD-05 | 220×220 | 120 | 0.5 |
| LD-MD-06 | 240×240 | 130 | 0.55 |
| LD-MD-07 | 250×250 | 140 | 0.6 |
| LD-MD-08 | 300×300 | 150 | 0.65 |
| LD-MD-09 | 330×330 | 160 | 0.7 |
| LD-MD-10 | 350×350 | 180 | 0.75 |

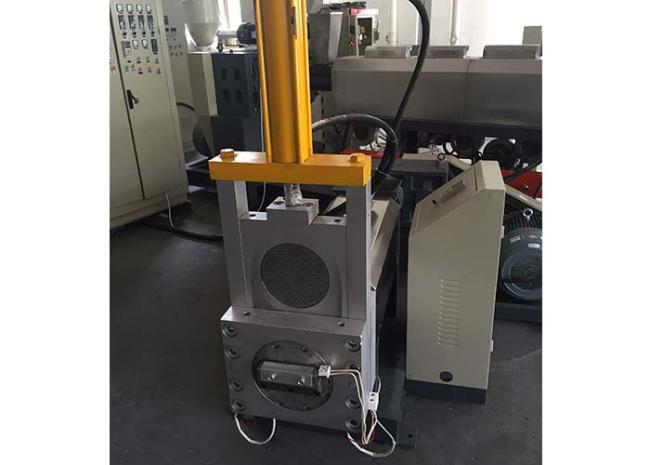

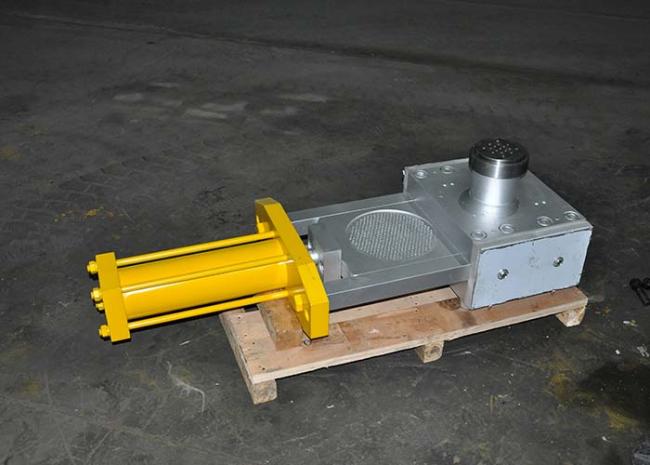

Detail images:
Packaging & Delivery:
1. We can provide custom-made packaging.
2.Prompt deliver at the very day.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
5. Sophisticated and professional logistic agent..
Competitive advantages:
1.Since 1992, professional manufacturer of plastic recycling machinie and pelletizing machine ;
2.The biggest manufacturer of plastic pelletizing machine in zhejiang province .
3.3000 pcs quatity of pelletizer in one year .300 pcs quantity of recycling machine in one year.
4.Promise:We will provide technical support for all lifetime with over 20 years experiences.
