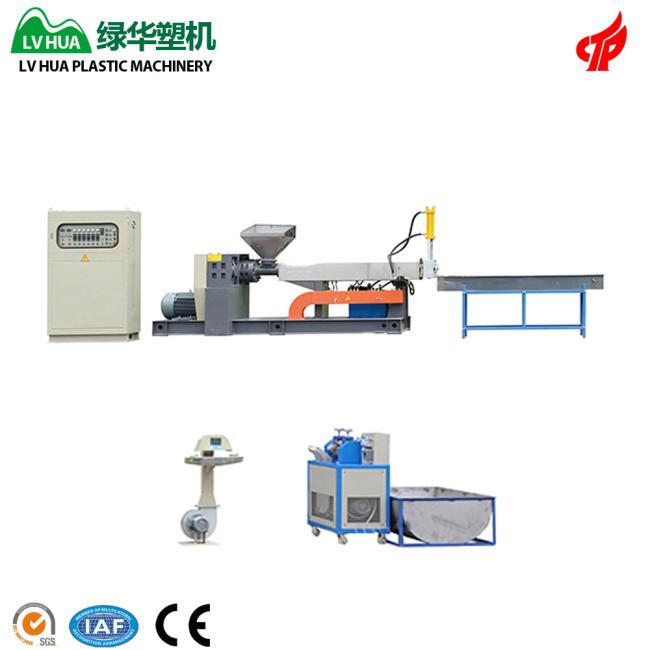

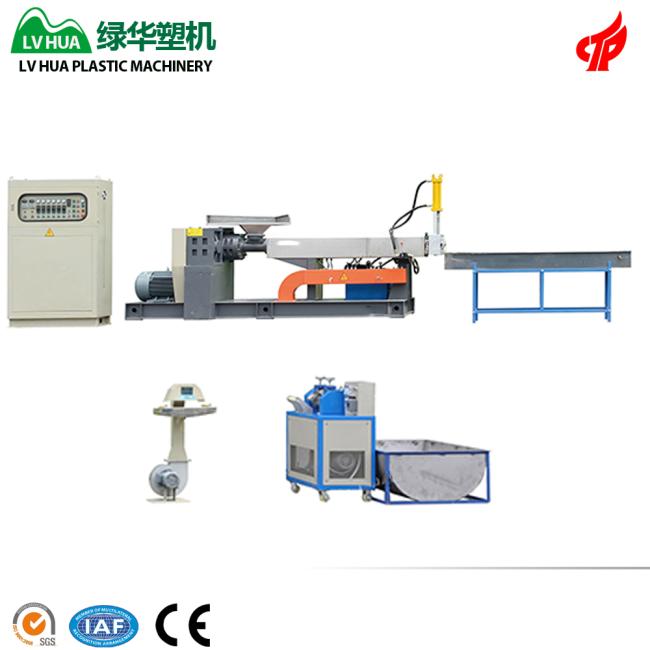

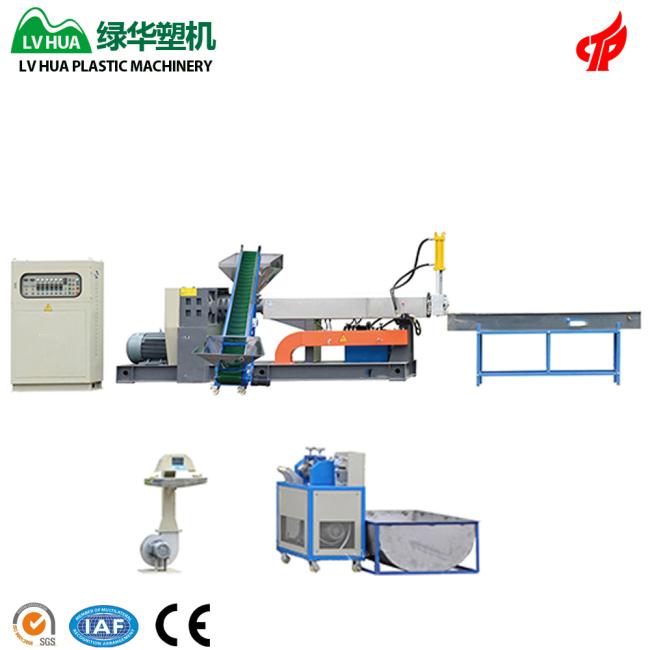

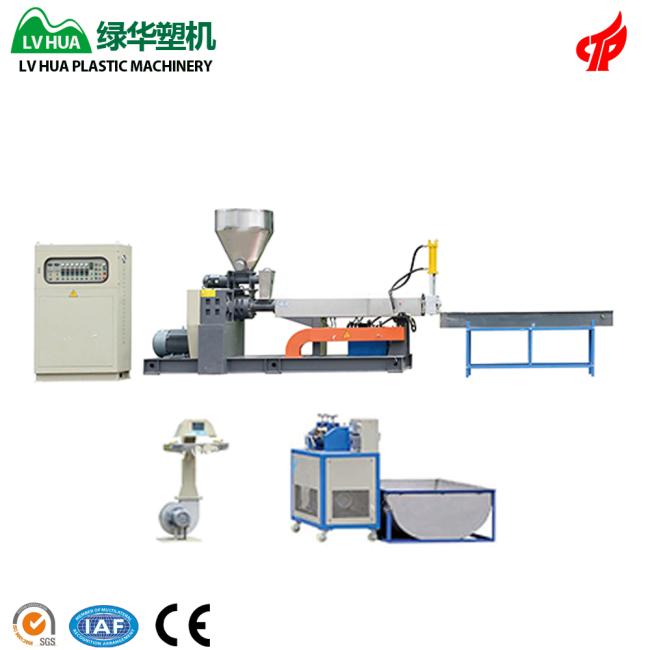

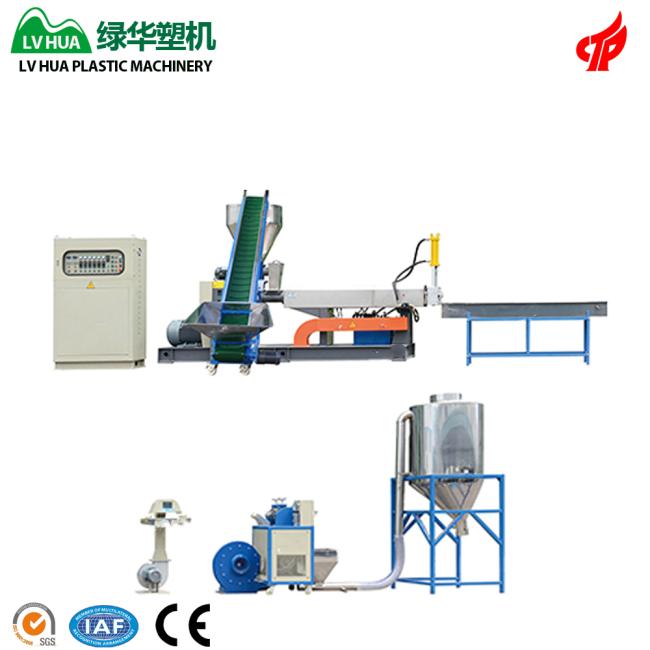

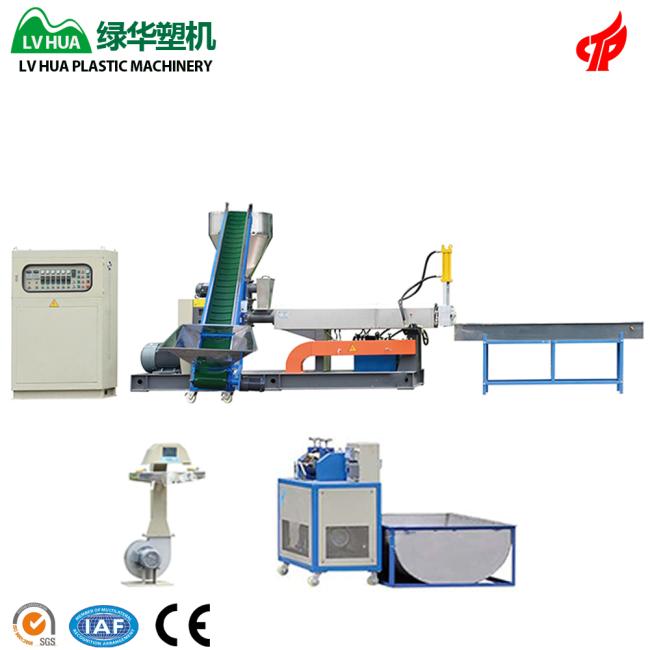

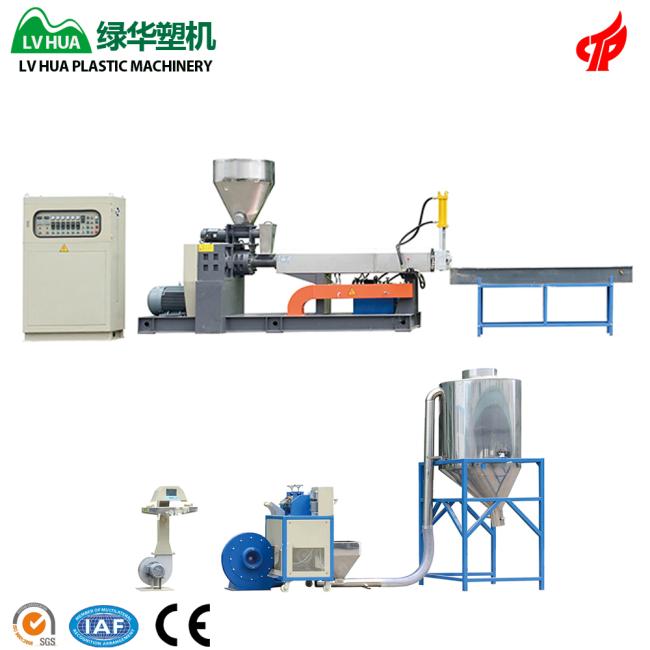

350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line
Plastic PET Granulator Machine is designed for the pellet and re-pellet production obtained from plastic, especially forcused on PET granulation.

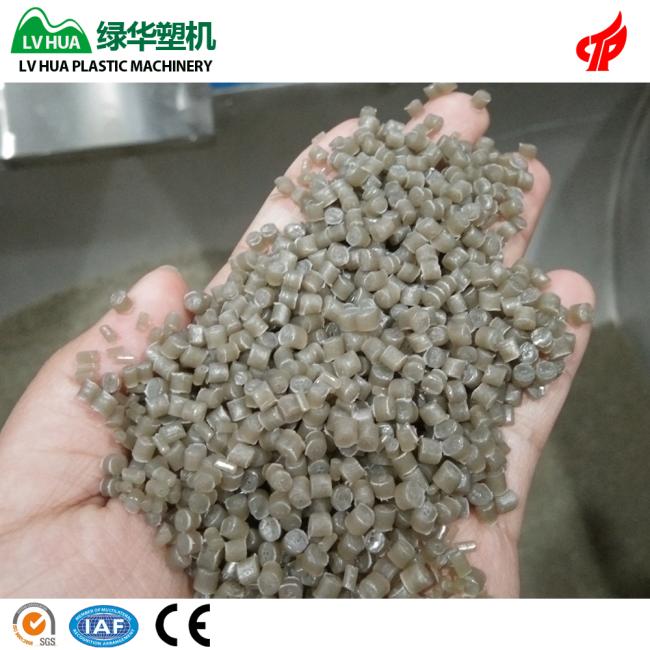

The granules that the LVDAO particle cutting machine produce are uniform and beautiful.
Advantages:
1) noodle water-cooling cutting , ensures good shape.
2) Complete degassing
3) fhaving 2 filtrations. ensuring the purity of final pellets
4) Extrude more evenly, having more stable output and better pellets
5) CE Certificate
6) Long service life
7)Customized
Manufacturing Process:

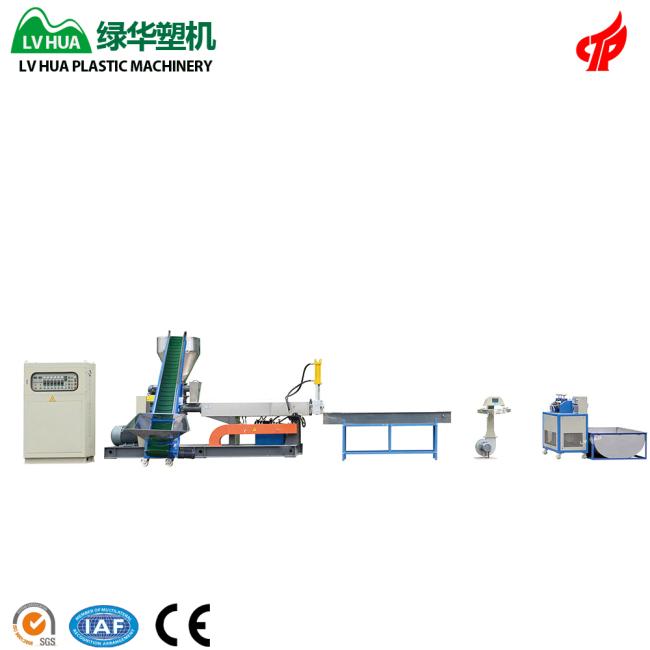

materials being preheated feeding materials onto the belt conveyor- being squeezed evenly in the extruder- coming out from the machine head after venting and filtering system hydraulic screen changer- being cut by pelletizing system- being transferred into the silo- the end
| Model | Screw dia(mm) | Out put(kg/h) | Power(kw) |
|
LDC-SJP-110 |
110 |
150-200 |
37 |
|
LDC-SJP-120 |
120 |
200-250 |
45 |
|
LDC-SJP-130 |
130 |
250-300 |
55 |
|
LDC-SJP-140 |
140 |
300-350 |
75 |
|
LDC-SJP-150 |
150 |
350-400 |
90 |
|
LDC-SJP-160 |
160 |
450-500 |
110 |
specifications
| Feeding | belt conveyor |
| Extruder | Single screw, One stage extrusion |
| Cutting Type | Strand (noodle) type pelletizing |
| Cooling Type | Water cooled |
|
Product
|
Plastic pellets/granules |
|
Material Type
|
PET(Polyethylene terephthalate) |
|
Material Shape
|
(pre-crushed)Flakes |
|
Machine Components
|
Cabinet,extruder,water cooling tank,blower,cutter,silo |
| Output range | 150kg~ 500 kg/hr |
| Screw Diameter | 110~160mm (customized) |
| Screw L/D |
30:1 (customized)
|
| Screw Material |
38CrMoAL
|
| Voltage | Customized based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...) |
| Optional Devices | Conveyor,crusher,force feeder |
| Delivery Time | 50days for customized machine. |
| Warranty | 1 year |
| Technical Assistance | Engineers available to service machinery overseas |
FAQ
Q:Are you machinery factory or trading company?
A:We are machinery factory with 20 years experience in Ningbo. And we can export machines by ourselves.
Q: Which kind of machine do you make?
A: We mainly produce plastic recycling machine,pelletizing machine and other auxiliary machine , according to the different raw material, different output and different industrial voltage in working place,you can choose different machines.
Q: How can we visit your company and machines?
A: Our factory is located in Ningbo City,near Shanghai and Hangzhou. About 3 hours away from Shanghai International Airport.
Q:Can you customized machine?
We can make the products following the customers' requirement,like the shape,size,color,logo and other spec details.
