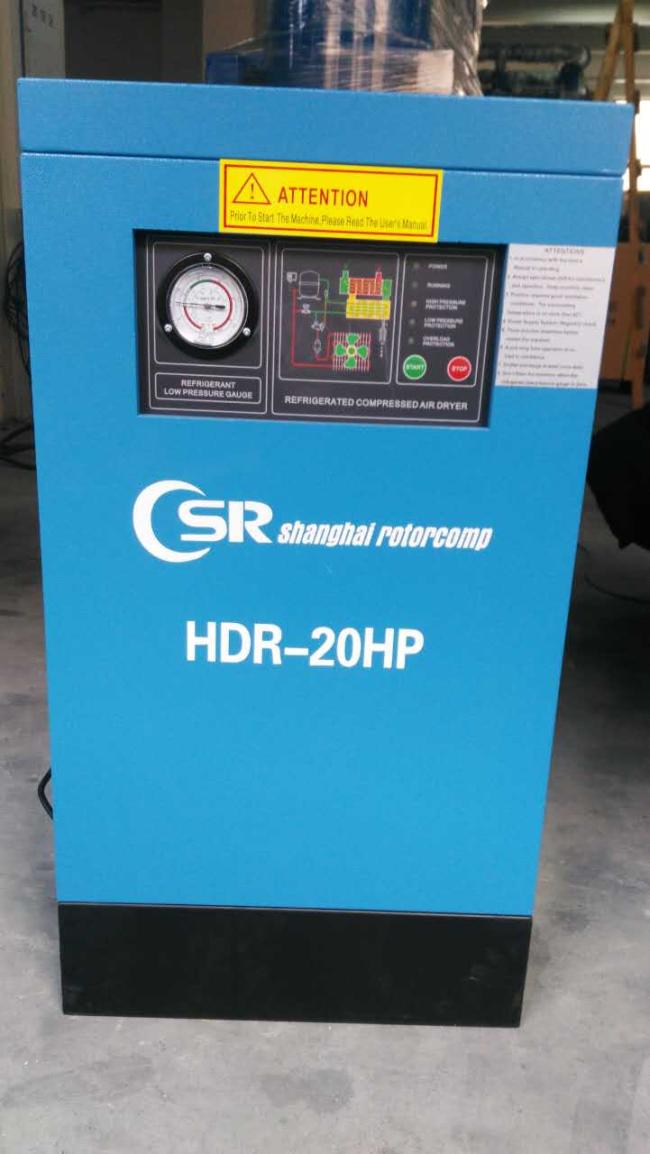

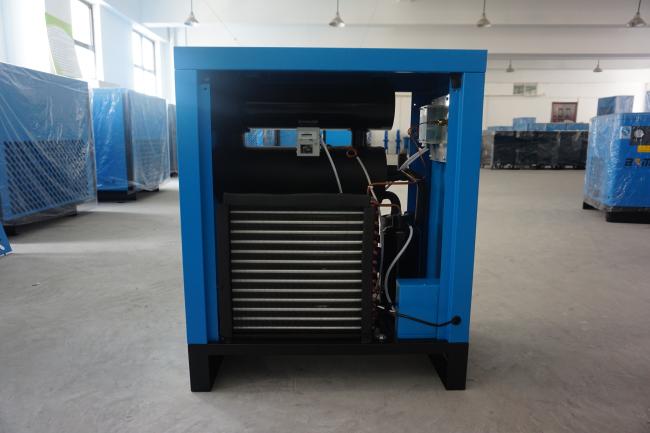

Super Cool inlet temp.82°C 20HP High-temp Refrigerated Compressed Air Dryer
Features of High-temp Refrigerated Air Dryer:
Capacity: 2.4m3/min
Working Pressure: ≤13bar
Max.inlet temp: 82°C Max Ambient Temp:50°C
Min.Ambient Temp: 5°C Refrigerant: R22, R407C,R134A,R410A
Cooling type: Air-cooled&Water-cooled Dew Point: 2°C ~8°C
Description of 20HP High-temp Refrigerated Compressed Dryer:
1. Shanghai rotorcomp compressor dryer Using filtered liquid separator American HANKISON filter, Japanese Panasonic & Korean LG Refrigeration compressor to keep durability and stability. Gas-liquid separation effect completely to avoid secondary evaporation of moisture, cold and dry to ensure that the important role of the drying effect, it is more efficient than the cyclone separation, separation efficiency 99.99%.
2. Galvanized copper piping systems using internal working pressure 0.3-4.5MPa arbitrary choice.
3. Made of stainless steel tubing for pharmaceutical, food industry, acid and alkali corrosion.
| Model | Cpacity m3/min |
Power Kw | Voltage V/50Hz |
connection | Dimension L×W×H |
Weight Kg |
| HDR-20HP | 2.4 | 1.0 | 220 | Rc1″ | 700×450×830 | 80 |
| Note: |
| 1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail; |
| 2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail; |
| 3. 1 year warranty, 2 years warranty for refrigerated compressor |
