Direct Diesel Driven Air Compressor Ingersoll Rand For Mineral Lubricated Oil

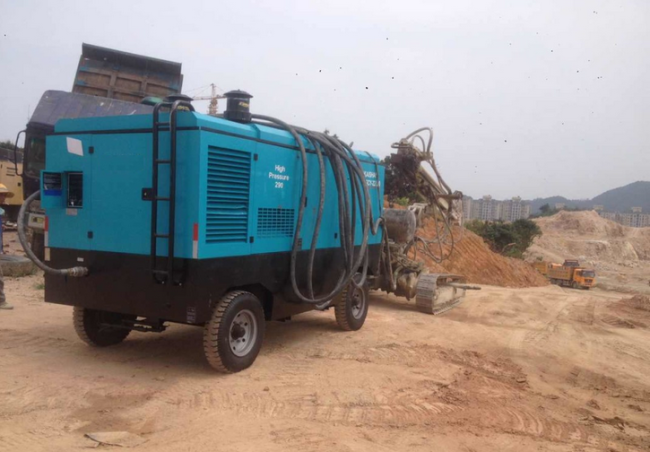

610Cfm 210Psi CUMMINS Trailer Portable Diesel Driven Screw compressor for drilling rig hammer,sand blasting
The most efficient wheeled Diesel compressor, Deutz, Ctapillar, Cummins diesel engine, less10-15% diesel consumption than the traditional model. More flexible in various working conditions for mining, road construction. Sand blasting.
Advantages of Diesel Portable Screw Compressor:
1. two-stage screw block is patented;
2. Designed for a maximum pressure of 40 bar;
3. Two-stage compression; Deutz, Cummins, and Yuchai World well-known engines
4. SKF bearings, direct drive, no noise gears;
Application of Diesel Portable Screw Compressor:
Shanghai rotorcomp diesel Portable/Mobile screw air compressor is widely used in mines, water conservancy, transportation, shipbuilding, urban construction, energy, industry and other industries.
• Interim Tier 4 exhaust emission compliance
• Operates under widely varying climatic conditions, water-cooled engine, large capacity oil cooling system, high efficiency heavy-duty two-stage intake filters (with cartridge replacement indicators)
• Highly efficient oil extraction system means low oil consumption
• Large capacity fuel tank placed low for good road handling and easy filling
• Gull wing doors for easy access to engine and components
• Few moving parts, minimum mechanical wear
• Rugged and reliable, needing little maintenance
• Optional after-cooler / water separator & filtration system for cool, dry & clean air
• 600 CFM @ operating pressures from 58-200 PSI easily adjustable to meet the specified requirements of the job.
| Model | Capacity (m3/min) |
Working Pressure (Mpa) |
Diesel Engine (kw) |
Dimension (mm) |
| LY17/14.5 | 17 | 1.45 | CUMMINS 6CTA8.3-C260 |
3980×1800×2450 |
Screw air compressor main spare parts configuration:
| Item | Parts | Brand |
| 1 | Air end | rotorcomp |
| 2 | Intake Valve | rotorcomp |
| 3 | Solenoid Valve | DANFOSS |
| 4 |
Temperature sensor |
rotorcomp |
| 5 | Pressure sensor |
Huba original (from Switzerland) |
| 6 | Engine | Cummins |
| 7 | Coupling | Germany KTR |
| 8 |
Thermostat Valve |
Hongxing |
| 9 | PLC | PLOT |
| 10 |
Minimal Pressure Valve |
rotorcomp |
| 11 | Air filter element | rotorcomp |
| 12 | Oil filter element | rotorcomp |
| 13 |
Oil and gas separator element |
rotorcomp |
| 14 | Bearing |
Sweden SKF (Life 60000 hours) |
