Excellent Design Screw Drive Air Compressor LGSD Series Coupled Structure
Tank Mounted 11Kw 15Hp compact screw air compressor air dryer,filters combined
Compact, heavy duty, quiet and highly reliable belt &direct driven rotary screw compressors series, to satisfy all the requirements.
Advanced compressor research and development and management system
-
Shangai Rotorcomp management system;
- Before production of new product, all should go through five stages and more one thousand process research and developments
European standard production management
-
Reasonable process arrangement;
-
Quality tracing and responsibility system;
-
Every process progress and quality controlled;
Rigorous factory testing program
The LGSD series comprises a comprehensive range of premium quality rotary screw air compressors from 4 kW to 15 kW. Each model is constructed to the highest standard using the best quality components in order to ensure a long life and total reliability.
The design of the LGSD series benefits from years of experience in the production of innovative high quality air compressors where attention to detail and quality are at the highest level.

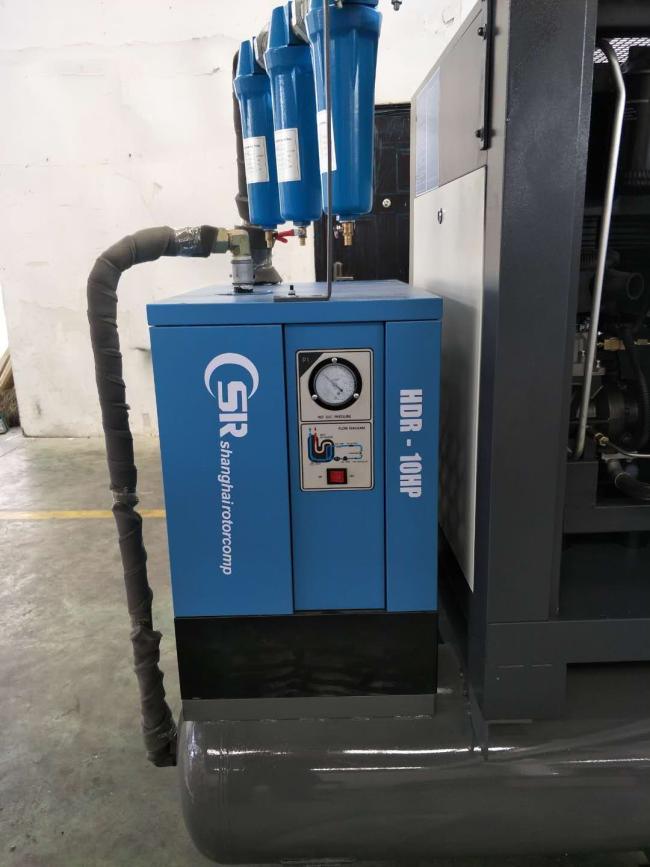

Coupled structure with excellent design formed compressor, dryer and air tank is carefully combined with the series.
SPACE SAVING
Compressor, air receiver and dryer assembled together occupy less space than located separately.
INDEPENDENT WORKING
The units forming system have separate control panels, if necessary, allows compressor and dryer to operate separately.
COUPLED STRUCTURE ADVANTAGE
Units in the system connected each other with short connections for banning possible pressure drops. Couple structure also avoidpossible oil leakages.
EVO® – Screw air ends
Reliable and versatile
Our oil-injected screw air ends create the heart of your compressor system. Used with our wide range of components, you can build the perfect compressor package with ultimate efficiency, low noise, at the highest quality standards.
Advantages of our new EVO® technology Ultimate efficiency and reduced noise through
New ROLLING PROFILE® – ultimate efficiency with
reduced noise
Long life cycle due to increased bearing dimensions
and wear-free ROLLING PROFILE®
Wide operating pressure range from 5 to 15 barg
High quality manufacturing and assembling –
“Made in Germany”
Quality assurance – bench test of every air end
before leaving our factory
Easy application selection with our new
ROTORCOMP® SIZING AIR software
Highest flexibility for your package design
• Suitable for all types of drive driving motors
• Drive options: Belt drive, direct drive, internal
|
Model |
Tank |
Power |
Air delivered |
Max. Pressure | Sound level |
Connection |
Net Weights |
Net Dimensions L x W x H | ||||
| lt | kW | HP | m3/min. | m3/h | CFM | bar | p.s.i. | dB(A) | G | Kg | (cm) | |
| LGSD 11-08-500 | 500 | 11 | 15 | 1.65 | 99 | 58.2 | 8 | 116 | 65 | 1" | 565 | 130 x 85 x 165 |
| Note: |
| 1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail; |
| 2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail; |
|
3. Frequency converters (optional). |
Screw air compressor main spare parts configuration:
| Item | Parts | Brand | ||
| 1 | Air end | Rotorcomp(Germany) | ||
| 2 | Intake Valve | Rotorcomp(Germany) | ||
| 3 | Solenoid Valve | Danfoss(Danmark) | ||
| 4 |
Temperature sensor |
Danfoss(Danmark) | ||
| 5 | Pressure sensor |
Huba original (from Switzerland) |
||
| 6 | Motor | Hebei | ||
| 8 |
Thermostat Valve |
Rotorcomp | ||
| 9 | PLC | PLOT | ||
| 10 |
Minimal Pressure Valve |
rotorcomp | ||
| 11 | Air filter element | Mann(Germany) | ||
| 12 | Oil filter element | Mann(Germany) | ||
| 13 |
Oil separator element |
Mann(Germany) | ||
| 14 | Bearing |
Sweden SKF (Life 60000 hours) |
||
