Crawler Full Hydraulic Rock Drilling Rig For Open Pit Mining DZYG38B
Crawler Full Hydraulic Rock Drilling Rig For Open Pit Mining DZYG38B
Introduction
ZL138A drill rig is a type of all-hydraulic rock drilling rig that integrated with a screw air compressor system,Hydraulic impact drilling system,Dry dust collection system of mining equipment,Suitable for water and electricity, railway, traffic, open-air mine, quarry, national defence engineering and various kinds of large construction projects in 64-102 mm drill blasting holes, bolt holes, etc.
Features:
1. Equipped with DZYG38B type hydraulic rock drill;
2. High efficiency of the borehole;1-1.5 times higher than the same kind of pneumatic rig of other brands
3. Low energy consumption;1/3--2/3 lower than the same kind of pneumatic rigs ;
4. Solid structure, compact layout, passing ability, good cross-country performance;
5. Safe operation, lower dust, low noise;
Specifications:
| Drilling diameter(mm) | 64-102 |
| Depth m | 18 |
| Travel speed /Km/h | 2 |
| Gradeability | 30° |
| Ground clearance /mm | 430 |
| Power /kW | 112 |
| Diesel engine | Commins 6BTA5.9-C150 |
| Displacemint m³/min | 5 |
| Working pressure bar | 7 |
| Dimension(LxWxH) /mm | 8000x2260x2800 |
| Weight /Kg | 9000 |
| Carriage lifting Angle | Up28°Down42° |
| Carriage pitch Angle | 129° |
| Carriage pendulum Angle | Right38°Left35° |
| Carriage of lateral horizontal pendulum Angle | Right4°－89° |
| Swing angle of drill boom | Right39°Left60° |
| The frame leveling Angle | Up10°Down9° |
| Drill stem lengthmm | 3050 |
| Length Compensation | 900 |
| Hydraulic rock drill | DZYG38B |
| Drill stem | T45×3050mm |
| Method of collecting dust | Dry(Hydraulic drive cyclone layer flow) |

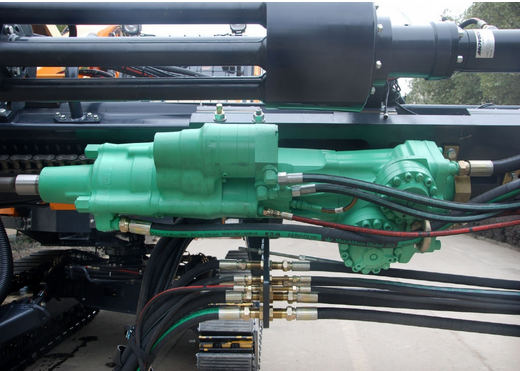

DZYG38B Hydraulic rock drill specifications as follows:
| Weight(Kg) | 150 |
| Surge pressure(MPa) | 15-21.5 |
| Rotary pressure(Max)(MPa) | 10 |
| Torque(Max)(N·m) | 0-750 |
| Impact frequency (Hz) | 40-60 |
| Rotating speed(r/min) | 0-300 |
| Power(Kw) | 45 |

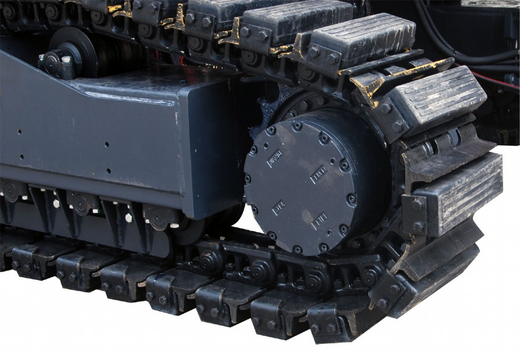

Details
