1.2kg.Cm Dual Shaft 12V DC Nema11 28mm Stepper Motor For Automatic Shutter
1.2kg.cm dual shaft 12V DC Nema11 28mm Stepper Motor for automatic shutter

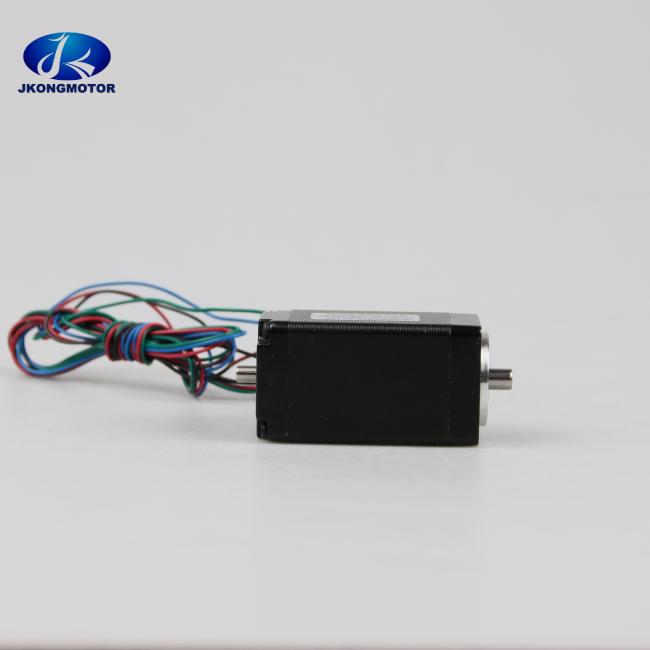

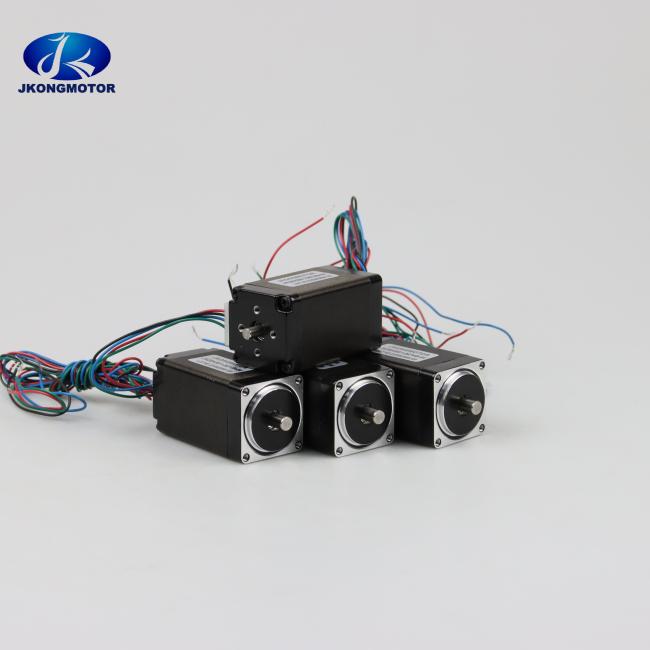

1) Product Description and images
Stepping motor is a kind of motor that converts electric pulse signal into corresponding angular displacement or linear displacement. Each time a pulse signal is input, the rotor rotates by an angle or advances one step. The angular displacement or linear displacement of the output is proportional to the number of input pulses, and the rotation speed is proportional to the pulse frequency. Therefore, stepping motor is also called pulse motor. Based on the most basic principle of electromagnet, the stepping motor is a kind of electromagnet that can rotate freely. Its action principle is to generate electromagnetic torque by the change of air gap permeability.
2) Product DataSheet
| Genaral Specification: | |||||||||
| Item | Specifications | ||||||||
| Step Angle | 1.8° | ||||||||
| Temperature Rise | 80℃max | ||||||||
| Ambient Temperature | -20℃~+50℃ | ||||||||
| Insulation Resistance | 100 MΩ Min. ,500VDC | ||||||||
| Dielectric Strength: | 500VAC for 1minute | ||||||||
| Shaft Radial Play | 0.02Max. (450g-load) | ||||||||
| Shaft Axial Play | 0.08Max. (450g-load) | ||||||||
| Max. radial force | 28N (20mm from the flange) | ||||||||
| Max. axial force | 10N | ||||||||
| Electrical Specifications: | |||||||||
| Model No. | Step Angle | Motor Length | Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque | # of Leads | Rotor Inertia | Weight |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm2 | Kg | |
| JK28HS32-0674 | 1.8 | 32 | 0.67 | 5.6 | 3.4 | 600 | 4 | 9 | 0.11 |
| JK28HS32-0956 | 1.8 | 32 | 0.95 | 2.8 | 0.8 | 430 | 6 | 9 | 0.11 |
| JK28HS45-0956 | 1.8 | 45 | 0.95 | 3.4 | 1.2 | 750 | 6 | 12 | 0.14 |
| JK28HS45-0674 | 1.8 | 45 | 0.67 | 6.8 | 4.9 | 950 | 4 | 12 | 0.14 |
| JK28HS51-0956 | 1.8 | 51 | 0.95 | 4.6 | 1.8 | 900 | 6 | 18 | 0.2 |
| JK28HS51-0674 | 1.8 | 51 | 0.67 | 9.2 | 7.2 | 1200 | 4 | 18 | 0.2 |
| Above only for representative products, products of special request can be made according to the customer request. | |||||||||

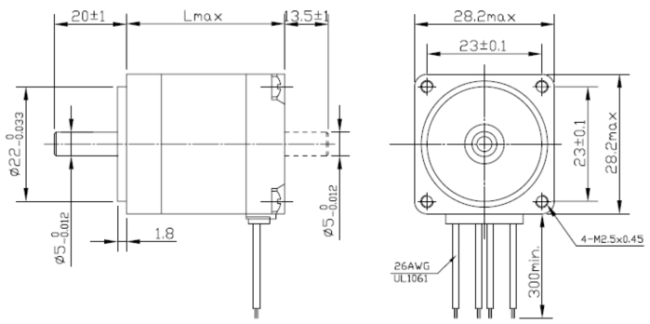

3) Product Drawing
| Stepper Motor Series | |||||
| Motor series | Phase No. | Step angle | Motor size | Motor length | Holding torque |
| Nema 8 | 2 phase | 1.8 degree | 20x20mm | 30~42mm | 180~300g.cm |
| Nema 11 | 2 phase | 1.8 degree | 28x28mm | 32~51mm | 430~1200g.cm |
| Nema 14 | 2 phase | 1.8 degree | 35x35mm | 27~42mm | 1000~2000g.cm |
| Nema 16 | 2 phase | 1.8 degree | 39x39mm | 20~44mm | 650~2800g.cm |
| Nema 17 | 2 phase | 1.8 degree | 42x42mm | 25~60mm | 1.5~7.3kg.cm |
| Nema 23 | 2 phase | 1.8 degree | 57x57mm | 41~112mm | 0.39~3.1N.m |
| Nema 24 | 2 phase | 1.8 degree | 60x60mm | 56~111mm | 1.17~4.5N.m |
| Nema 34 | 2 phase | 1.8 degree | 86x86mm | 67~155mm | 3.4~12.2N.m |
| Nema 42 | 2 phase | 1.8 degree | 110x110mm | 99~201mm | 11.2~28N.m |
| Nema 52 | 2 phase | 1.8 degree | 130x130mm | 173~285mm | 13.3~22.5N.m |
