Nema24 60mm Hybrid Stepper Motor With 8mm Shaft CE ROHS Certificated
Nema24 60mm Hybrid Stepper Motor With 8mm Shaft CE ROHS Certificated
1.Genaral Specification:
- Step Angle : 1.8°
- Temperature Rise : 80℃max
- Ambient Temperature : -20℃~+50℃
- Insulation Resistance : 100 MΩ Min. ,500VDC
- Dielectric Strength : 500VAC for 1minute
- Shaft Radial Play : 0.02Max. (450g-load)
- Shaft Axial Play : 0.08Max. (450g-load)
- Max. radial force : 75N (20mm from the flange)
- Max. axial force : 15N
2.Electrical Specification:
| Model No. | Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm | Kg | |
| JK60HS56-2008 | 56 | 2 | 1.8 | 3. | 1.17 | 8 | 700 | 300 | 0.77 |
| 2.8 | 0.9 | 3.6 | 1.65 | ||||||
| 1.4 | 3.6 | 14.4 | 1.65 | ||||||
| JK60HS67-2008 | 67 | 2 | 2.4 | 4.6 | 1.5 | 8 | 900 | 570 | 1.2 |
| 2.8 | 1.2 | 4.6 | 2.1 | ||||||
| 1.4 | 4.8 | 18.4 | 2.1 | ||||||
| JK60HS88-2008 | 88 | 2 | 3 | 6.8 | 2.2 | 8 | 1000 | 840 | 1.4 |
| 2.8 | 1.5 | 6.8 | 3.1 | ||||||
| 1.4 | 6 | 27.2 | 3.1 | ||||||
| JK60HS100-2008 | 100 | 2 | 3.2 | 6.4 | 2.8 | 8 | 1100 | 980 | 1.7 |
| 2.8 | 1.6 | 6.4 | 4.0 | ||||||
| 1.4 | 6.4 | 25.6 | 4.0 | ||||||
| JK60HS111-2008 | 111 | 2.0 | 4.4 | 8.3 | 3.2 | 8 | 1200 | 1120 | 1.9 |

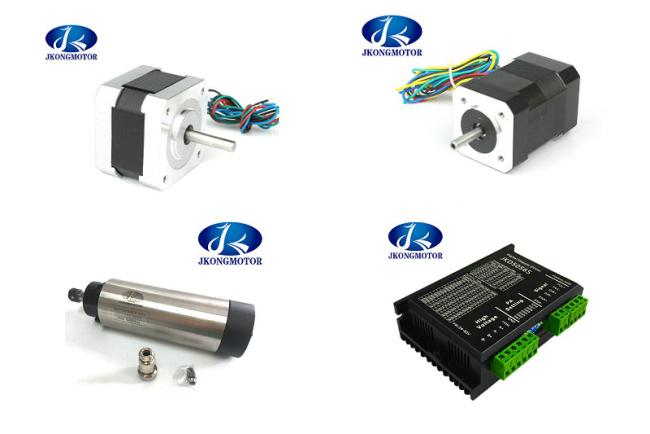

Matched Stepper motor Driver: JKD5056S
3.Wiring Diagram:

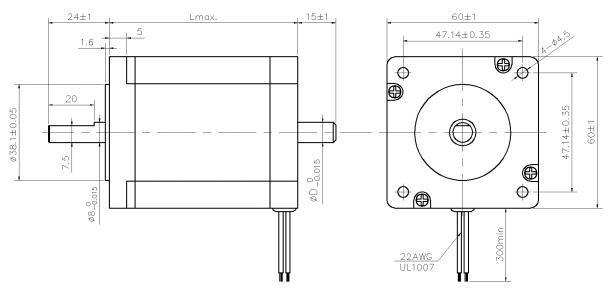

4.Dimensions: (Unit=mm)

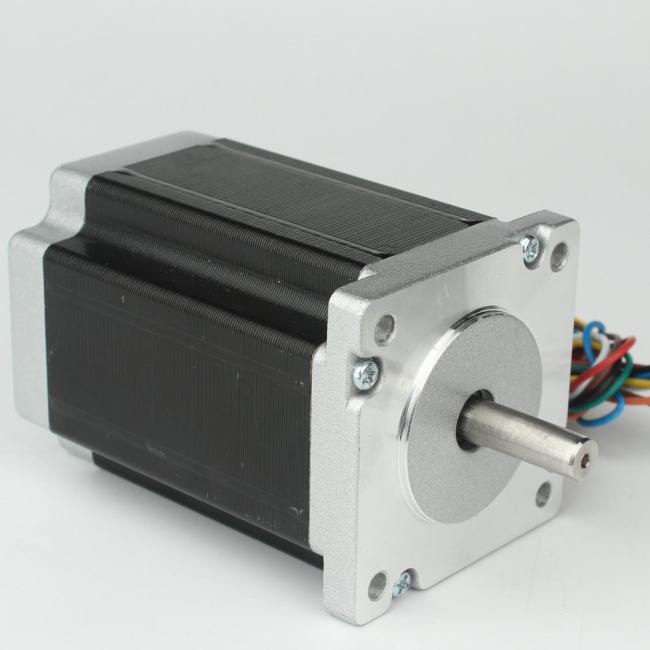

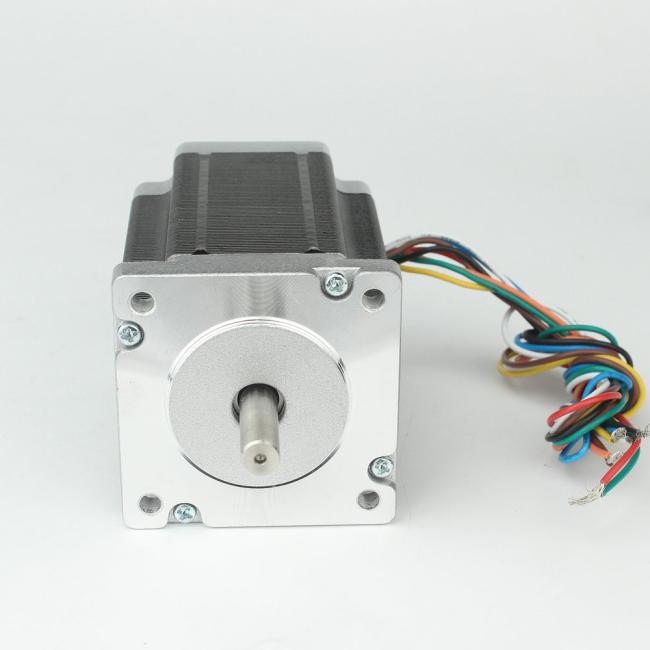

5.Photos
6.FAQ (Q=Question, A=Answer)
Q: What's your main products?
A:We currently produce Stepper motors, Brushless Dc Motors, Brushed Dc Motors, Spindle motor, Ac Motors and drivers etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q:How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q:Can I have samples for testing first?
A:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples.
Q:How do you make sure motor quality?
A:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q:What's your lead time?
A:Generally speaking, our regular standard product will need 15-25days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders.
Q:What certifications do you have?
A:We currently have CE and ROSH certifications.
Q:Can you send me your price list?
A:Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquirues to make sure you can get the price in time.
7.Applications:
Use for
Industry of automation
Medical and health care equipment
3d printer machines
Packing devices
Information Technology
Household appliance products
Our Company offers three major series of products: Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor. We are always continues develop new type models.
We are also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motors, Spindle motor and Motor drivers.
