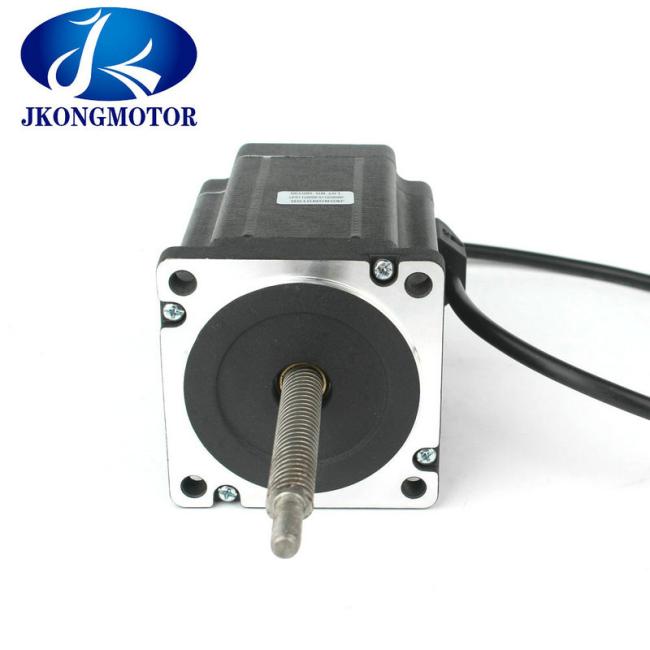

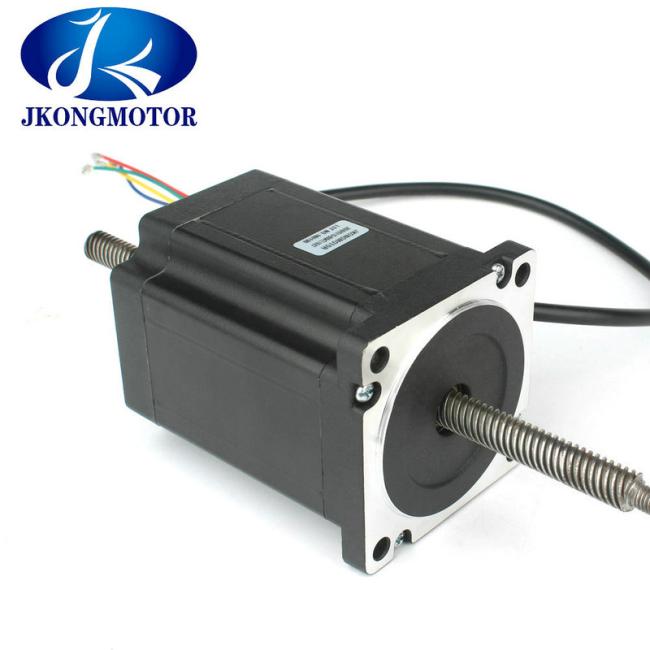

Nema 34 12.2N.M High Torque Stepper Motor , TR12 Screw Drive Motor

Item

Specifications

Step Angle

1.8°

Temperature Rise

80℃max

Ambient Temperature

-20℃~+50℃

Insulation Resistance

100 MΩ Min. ,500VDC

Dielectric Strength

820VAC for 1s 3mA

Shaft Radial Play

0.02Max. (450g-load)

Shaft Axial Play

0.08Max. (450g-load)

Max. radial force

220N (20mm from the flange)

Max. axial force

60N

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

( °)

(L)mm

A

Ω

mH

N.m

No.

Kg.cm

g.cm^2

Kg

JK86HS78-5504

1.8

78

5.5

0.46

4.0

4.6

4

1.2

1400

2.3

JK86HS78-4208

1.8

78

4.2

0.75

3.4

3.2

8

1.2

1400

2.3

JK86HS97-6004

1.8

97

6.0

0.5

3.8

7.0

4

1.7

2100

3.0

JK86HS115-6004

1.8

115

6.0

0.5

5.8

8.7

4

2.4

2700

3.8

JK86HS155-6004

1.8

155

6.0

0.68

9.0

13

4

3.6

4000

5.4

JK86HS155-4208

1.8

155

4.2

1.25

8.0

8.5

8

3.6

4000

5.4

Screw Diameter(mm)

Screw Lead(mm)

Screw Pitch(mm)

Travel per step(mm)

Screw Diameter(mm)

Screw Lead(mm)

Screw Pitch(mm)

Travel per step(mm)

Tr10

2

2

0.01

Tr12

2

2

0.01

3

1.5

0.015

3

3

0.015

4

2

0.02

8

2

0.04

8

2

0.04

10

2

0.05

10

2

0.05

12

2

0.06
