48V Black Three Phase Brushless Motor 250W / 283W 1000 - 4000 Rpm For CNC Machine
Price:
US $29 - 48 / Units | 3 Unit/Units (Min. Order)
MOQ:
3-10pcs
Delivery Time:
For samples , 7-15 days / For batch , 15-25days
Brand:
Jkongmotor
Product Description
NEMA24 48V Black Three Phase Brushless Motor 250W 283W 1000RPM - 4000RPM For Cnc Machine

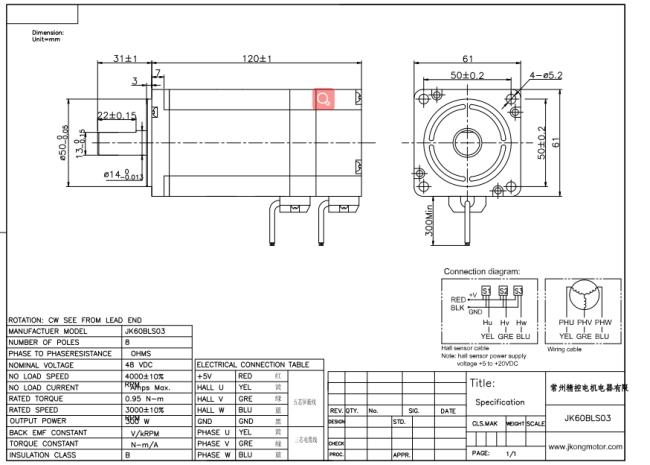

Drawing of three phase brushless dc motor:
Electrical Specification of brushless dc motor:
| Model | |||
| Specification | Unit | JK60BLS03 | JK60BLS04 |
| Number Of Phase | Phase | 3 | |
| Number Of Poles | Poles | 8 | |
| Rated Voltage | VDC | 48 | |
| Rated Speed | Rpm | 3000 | |
| Rated Torque | N.m | 0.9 | 1.2 |
| Rated Current | Amps | 7.5 | 9.5 |
| Rated Power | W | 283 | 377 |
| Peak Torque | N.m | 2.7 | 3.6 |
| Peak Current | Amps | 22.5 | 28.5 |
| Back E.M.F | V/Krpm | 12.4 | 13.3 |
| Torque Constant | N.m/A | 0.118 | 0.127 |
| Rotor Inertia | Kg.cm^2 | 0.72 | 0.96 |
| Body Length | mm | 120 | 141 |
| Weight | Kg | 1.65 | 2.05 |
| Sensor | Honeywell | ||
| Insulation Class | B | ||
| Degree of Protection | IP30 | ||
| Storage Temperature | -25～+70℃ | ||
| Operating Temperature | -15～+50℃ | ||
| Working Humidity | 85% or under 85% RH(non condensing) | ||
| Working Environment | outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust |
||
| Altitude | 1000m or under 1000m | ||
Products of special request can be made according to the customer request !

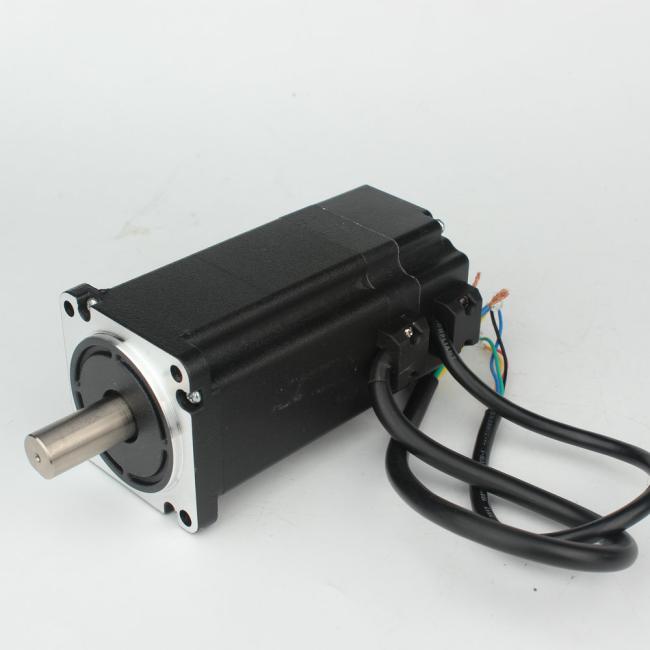

photo of nema24 brushless dc motor:
