36V Nema 23 Brushless DC Motor , CE ROHS Approved BLDC Motor 100W 200W
Price:
US $10 -35 / Pieces | 2 Piece/Pieces (Min. Order)
MOQ:
3-10pcs
Delivery Time:
For samples , 7-15 days / For batch , 15-25days
Brand:
Jkongmotor
Product Description
Nema23 36V 48V Brushless Dc Motor CE ROHS Approved BLDC Motor 100W 200W
57mm Diameter 36V Rated speed 4000rpm 3Phase brushless dc motor
| Electrical Specification of brushless dc motor: | ||||||
| Model | ||||||
| Specification | Unit | JK57BLS005 | JK57BLS01 | JK57BLS02 | JK57BLS03 | JK57BLS04 |
| Number Of Phase | Phase | 3 | ||||
| Number Of Poles | Poles | 4 | ||||
| Rated Voltage | VDC | 36 | ||||
| Rated Speed | Rpm | 4000 | ||||
| Rated Torque | N.m | 0.055 | 0.11 | 0.22 | 0.33 | 0.44 |
| Rated Current | Amps | 1.2 | 2 | 3.6 | 5.3 | 6.8 |
| Rated Power | W | 23 | 46 | 92 | 138 | 184 |
| Peak Torque | N.m | 0.16 | 0.33 | 0.66 | 1 | 1.32 |
| Peak Current | Amps | 3.5 | 6.8 | 11.5 | 15.5 | 20.5 |
| Back E.M.F | V/Krpm | 7.8 | 7.7 | 7.4 | 7.3 | 7.1 |
| Torque Constant | N.m/A | 0.074 | 0.073 | 0.07 | 0.07 | 0.068 |
| Rotor Inertia | g.cm^2 | 30 | 75 | 119 | 173 | 230 |
| Body Length | mm | 37 | 47 | 67 | 87 | 107 |
| Weight | Kg | 0.33 | 0.44 | 0.75 | 1 | 1.25 |
| Sensor | Honeywell | |||||
| Insulation Class | B | |||||
| Degree of Protection | IP30 | |||||
| Storage Temperature | -25~+70℃ | |||||
| Operating Temperature | -15~+50℃ | |||||
| Working Humidity | 85% or under 85% RH(non condensing) | |||||
| Working Environment | outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust |
|||||
| Altitude | 1000m or under 1000m | |||||
Products of special request can be made according to the customer request !

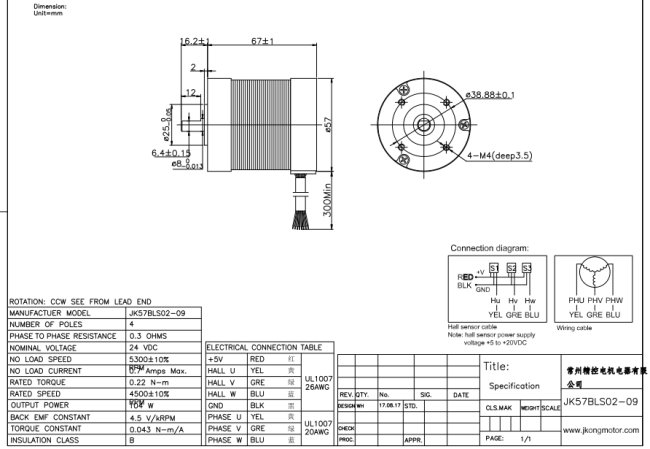

The drawing of 34V nema23 brushless dc motor:
