JKBLD750 3 Phase BLDC Motor Driver +18V~50VDC 5A For 750W BLDC Motor
18V~50VDC 25A - 45A Brushless Dc Motor Driver JKBLD750 For 0-750W Bldc Motor
Description:
The JKBLD750 BLDC motor drive is a high performance, cost-effective 3phase BLDC motor drive, which can provide power output Max 750VA.The design is based on advanced DSP technology and feature high torque, low noise, low vibration, PID speed loop, PID current loop, over current protection, over load protection and a combined use of manual speed adjustment and automatic speed adjustment.
Electrical Specifications:
| Parameter | Min | Rated | Max | Unit |
| Motor Hall Sensor Angle | 120°/240° | |||
| DC Power Input | 18 | 48 | 50 | V |
| Drive Current Output | 0 | 25 | 45 | A |
| Suitable Motor Speed | 0 | 20000 | rpm | |
| Hall Sensor Voltage | 4.5 | 5 | 5.5 | V |
| Hall Sensor Current | 20 | mA | ||
| External Potentiometer | 10K | Ω | ||
Connection Definition:
| Mark | Definition |
| DC+/DC- | DC power input (DC24V~DC48V) |
| U,V,W | Motor lead wire |
| Hu,Hv,Hw | Hall sensor lead wire |
| Vcc | External Potentiometer Power Supply ( Internal Power Supply Only) |
| EN | Enable: High Level/Stop Low Level/Run |
| SV | External potentiometer |
| F/R | Direction: Low Level/CCW High Level or No Connection/CW |
| BRK | Quick Brake: High Level/Stop Low Level/Run |

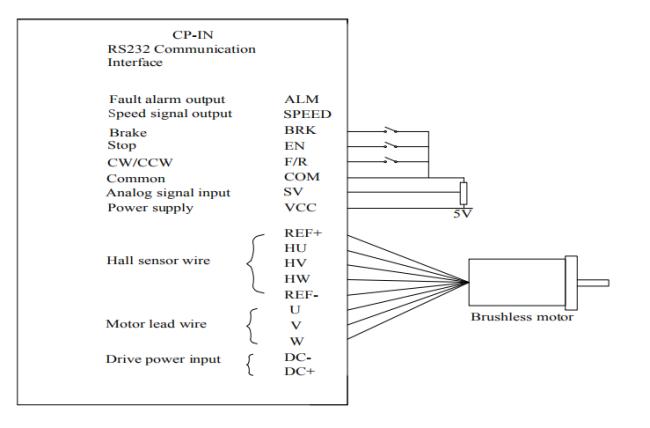

Connection:

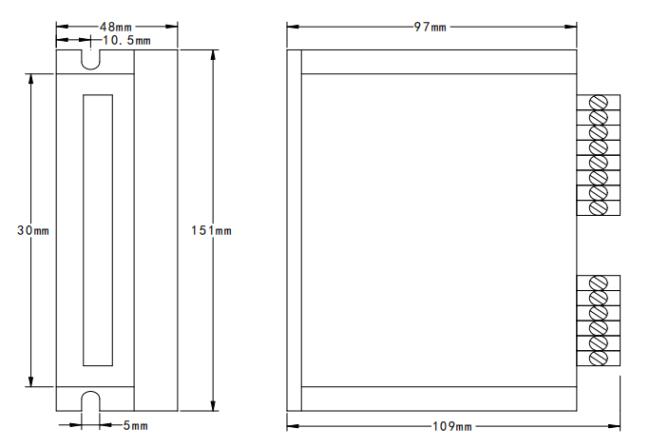

Mechanical Drawings:

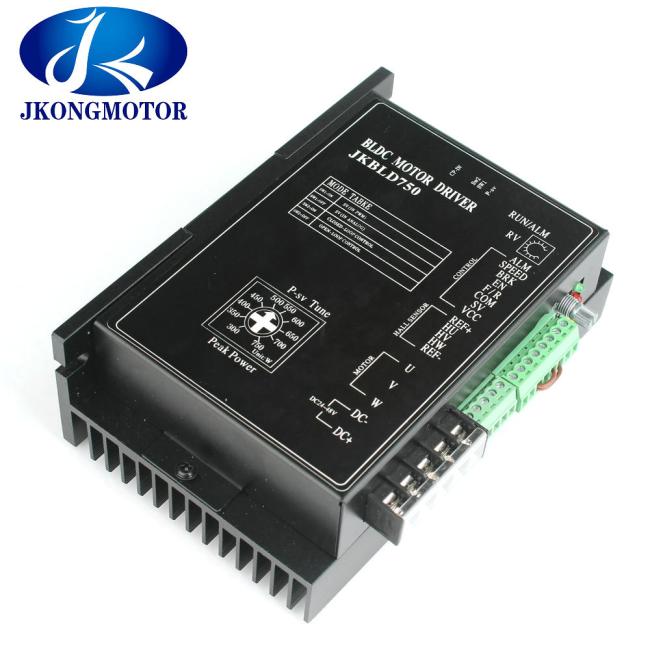

JKBLD750 Photos:
We aslo supply Stepper motor Kits, linear stepper motor, Dc motor, Brake stepper motor, Stepper motor with Encoder, Flexible Coupling, Pully, Power supply, Breakout Board and so on..
Warranty:
- We offer one year warranty.
- Within the warranty period, if your item has any problems when you use it, please send us an e-mail with photos or video to show the problem.
- The replacement of the products for free are considerable due to it's own defects during warranty period.
![]()
![]()
