35mm 1A 14N.cm 4 Wires Nema 14 2 Phase Hybrid Stepper Motor For Engraving Machine
35mm 1.8° 1A 14N.cm 4wires Nema14 2 phase hybrid step motor
A hybrid stepper motor is a combination of the variable reluctance and permanent magnet type motors. The rotor of a hybrid stepper motor is axially magnetized like a permanent magnet stepper motor, and the stator is electromagnetically energized like a variable reluctance stepper motor. Both the stator and rotor are multi-toothed.The stator is electromagnetically stimulated like variable reluctance stepper motor, and the rotor of the stepper motor is axially magnetized like permanent magnet stepper motor. This stepper motor is an actuator that converts electrical pulses into angular displacement.
Genaral Specification:
Item | Specifications |
Step Angle | 1.8° |
Temperature Rise | 80℃max |
Ambient Temperature | -20℃~+50℃ |
Insulation Resistance | 100 MΩ Min. ,500VDC |
Dielectric Strength | 500VAC for 1minute |
Shaft Radial Play | 0.02Max. (450g-load) |
Shaft Axial Play | 0.08Max. (450g-load) |
Max. radial force | 28N (20mm from the flange) |
Max. axial force | 10N |
Electrical Specification:
| Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | g.cm | Kg | |
| JK35HS28-0504 | 1.8 | 28 | 0.5 | 20 | 14 | 1000 | 4 | 80 | 11 | 0.13 |
| JK35HS34-1004 | 1.8 | 34 | 1 | 2.7 | 4.3 | 1400 | 4 | 100 | 13 | 0.17 |
| JK35HS42-1004 | 1.8 | 42 | 1 | 3.8 | 3.5 | 2000 | 4 | 125 | 23 | 0.22 |
*Note: We can also manufacture products according to customer's requirements.

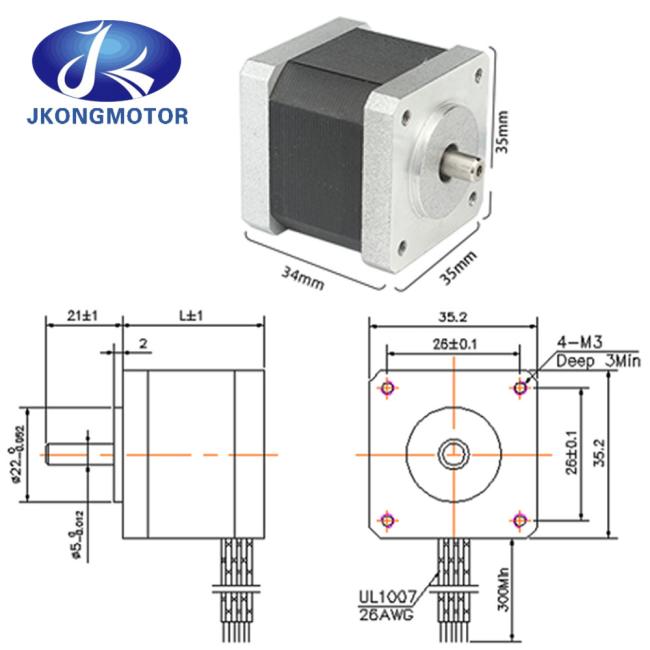

Dimensions:(Unit=mm)
Produce equipment:
Production Process:
Advantages of Hybrid Stepper Motor
- The advantages of the Hybrid Stepper Motor are as follows:-
- The length of the step is smaller.
- It has greater torque.
- Provides Detent Torque with the de-energized windings.
- Higher efficiency at lower speed.
- Lower stepping rate.
Stepper Motor Applications
- As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
- They are used in numeric control of machine tools.
- Used in tape drives, floppy disc drives, printers and electric watches.
- The stepper motor also use in X-Y plotter and robotics.
- It has wide application in textile industries and integrated circuit fabrications.
- The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
- These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
- Stepper motors of microwatts are used in the wrist watches.
- In the machine tool, the stepper motors with ratings of several tens of kilowatts is used
