China 2 Phase 5kgCm 1.68A Nema 17 Linear Stepper Motor With Ball Screw Integrated Driver for sale

2 Phase 5kgCm 1.68A Nema 17 Linear Stepper Motor With Ball Screw Integrated Driver

Price Negotiable

Price: US$5.5~US$35

MOQ: 3-10pcs

Delivery Time: For samples , 7-15 days / For batch , 15-25days

Brand: Jkongmotor

Product Description

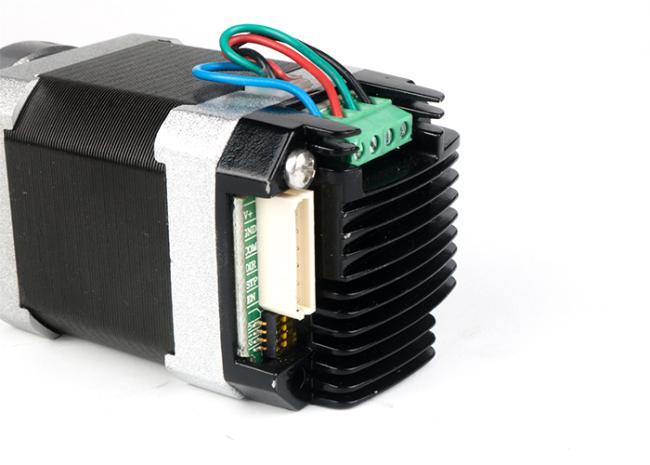

2phase 5kg.cm 1.68A Nema17 stepper motor with Ball screw, integrated driver

1.Genaral Specification of hybrid stepper motor:

Item	Specifications
Step Angle	1.8°
Temperature Rise	80℃max
Ambient Temperature	-20℃~+50℃
Insulation Resistance	100 MΩ Min. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	28N (20mm from the flange)
Max. axial force	10N

Model: JK42HS48-1684GZL1204-8
Resolution: 200 steps/rev (1.8°)
Rated voltage: 2.8 V
Current consumption per coil: 1.7 A
Coil resistance: 1.65Ω
Winding inductance: 2.8 mH
Holding torque 5 kg*cm (0.5 Nm)
Shaft diameter: 5 mm
Weight: 500 g
Standard: NEMA 17
Dimensions: 42 x 42 x 48 mm (without shaft)

2.Electrical Specification of nema17 stepper moror:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
	( °)	(L)mm	A	Ω	mH	N.m	No.	g.cm	g.cm	Kg
JK42HS25-0404	1.8	25	0.4	24	36	1.8	4	75	20	0.15
JK42HS34-1334	1.8	34	1.33	2.1	2.5	2.2	4	120	34	0.22
JK42HS40-1684	1.8	40	1.68	1.65	3.2	3.6	4	150	54	0.28
JK42HS48-1684	1.8	48	1.68	1.65	2.8	4.4	4	260	68	0.35
JK42HS60-1004	1.8	60	1.0	8	13	7.5	4	280	102	0.5

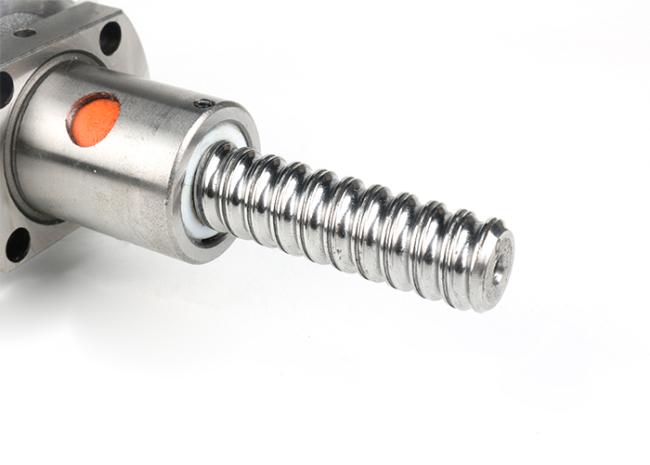

Screw rod Specification of 42mm stepper motor:

Screw Diameter(mm)	Screw Lead(mm)	Screw Pitch(mm)	Travel per step(mm)	Screw Diameter(mm)	Screw Lead(mm)	Screw Pitch(mm)	Travel per step(mm)
Tr5	1	1	0.005	Tr8	8	2	0.04
	2	1	0.01		10	2	0.05
Tr6	2	1	0.01		12	2	0.06
	4	1	0.02		14	2	0.07
	6	1	0.03	Tr10	2	2	0.01
	12	2	0.06		3	1.5	0.015
Tr8	1	1	0.005		4	2	0.02
	2	2	0.01		8	2	0.04
	3	1.5	0.015		10	2	0.05
	4	2	0.02		12	2	0.06

3.Drawing of step motor with integrated driver:

4.Produce equipment of motor :

5.Production Process of motors:

6.Advantages of hybrid Stepper Motor 42mm:

The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.

7.Applications of 42mm electric motors:

As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
They are used in numeric control of machine tools.
Used in tape drives, floppy disc drives, printers and electric watches.
The stepper motor also use in X-Y plotter and robotics.
It has wide application in textile industries and integrated circuit fabrications.
The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
