4000rpm 120 Degree Electrical Angle 50W 3 Phase 24 Volt Brushless Motor
Price:
US $12.-19 / Pieces | 2 Piece/Pieces (Min. Order)
MOQ:
3-10pcs
Delivery Time:
For samples , 7-15 days / For batch , 15-25days
Brand:
Jkongmotor
Product Description
24V 50W Brushless DC Motor 4000rpm Three Phase BLDC Motor 12V 36V 1000PRM - 5000RPM
General Specification Of 3 phase brushless dc motor:
| Item | Specification |
| Winding type | Delta |
| Hall effect angle | 120 degree electrical angle |
Electrical Specification of 24v dc brushless motor:
| Model | ||||
| Specification | Unit | JK42BLS02 | JK42BLS03 | JK42BLS04 |
| Number Of Phase | Phase | 3 | ||
| Number Of Poles | Poles | 8 | ||
| Rated Voltage | VDC | 24 | ||
| Rated Speed | Rpm | 4000 | ||
| Rated Torque | N.m | 0.125 | 0.185 | 0.25 |
| Rated Current | Amps | 3.3 | 4.8 | 6.3 |
| Rated Power | W | 52.5 | 77.5 | 105 |
| Peak Torque | N.m | 0.38 | 0.56 | 0.75 |
| Peak Current | Amps | 10.6 | 15.5 | 20 |
| Back E.M.F | V/Krpm | 4.2 | 4.3 | 4.3 |
| Torque Constant | N.m/A | 0.04 | 0.041 | 0.041 |
| Rotor Inertia | g.cm^2 | 48 | 72 | 96 |

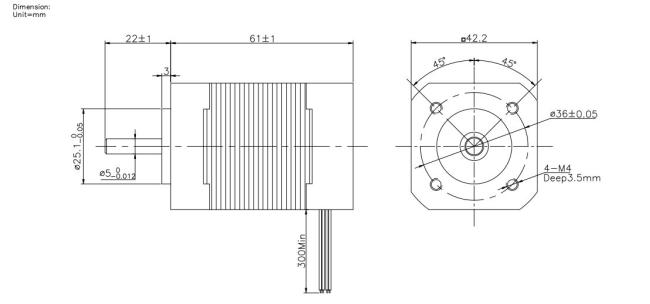

| Body Length | mm | 61 | 81 | 100 |
| Weight | Kg | 0.45 | 0.65 | 0.8 |
| Sensor | Honeywell | |||
| Insulation Class | B | |||
| Degree of Protection | IP30 | |||
| Storage Temperature | -25~+70℃ | |||
| Operating Temperature | -15~+50℃ | |||
| Working Humidity | 85% or under 85% RH(non condensing) | |||
| Working Environment | outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust |
|||
| Altitude | 1000m or under 1000m | |||
*Note: We can also manufacture products according to customer's requirements.
