1.8° 60mm 2 Phase 2A 22kg.Cm 8 Wires Hybrid Nema 24 Stepper Motor

1.8° 60mm 2phase 2A 22kg.cm 8wires Nema 24 Hybrid Stepper Motor


1.Genaral Specification of hybrid stepper motor:

2.Electrical Specification of stepper morors:

Model No.	Mode of connection	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
		(L)mm	A	Ω	mH	N.m	No.	g.cm	g.cm	Kg
JK60HS56-2008	Unipolar	56	2	1.8	3.	1.17	8	700	300	0.77
	Parallel		2.8	0.9	3.6	1.65
	Series		1.4	3.6	14.4	1.65
JK60HS67-2008	Unipolar	67	2	2.4	4.6	1.5	8	900	570	1.2
	Parallel		2.8	1.2	4.6	2.1
	Series		1.4	4.8	18.4	2.1
JK60HS88-2008	Unipolar	88	2	3	6.8	2.2	8	1000	840	1.4
	Parallel		2.8	1.5	6.8	3.1
	Series		1.4	6	27.2	3.1
JK60HS100-2008	Unipolar	100	2	3.2	6.4	2.8	8	1100	980	1.7
	Parallel		2.8	1.6	6.4	4.0
	Series		1.4	6.4	25.6	4.0
JK60HS111-2008	Unipolar	111	2.0	4.4	8.3	3.2	8	1200	1120	1.9
	Parallel		2.8	2.2	8.3	4.5
	Series		1.4	8.8	33.2	4.5

Above only for representative products, products of special request can be made according to the customer request.

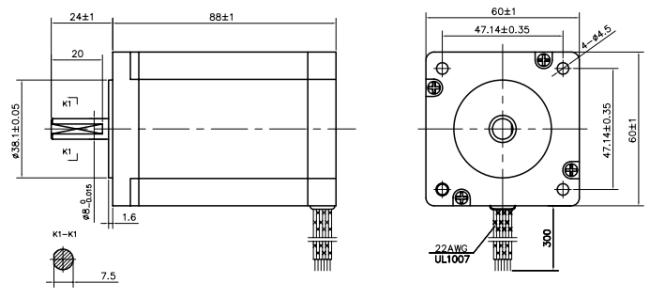

3.Drawing of JK60HS stepper motor:


4.Produce equipment:



5.Production Process:

6.Advantages of hybrid Step Motor:

The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.

   7.Applications of electric motor:

• As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
• They are used in numeric control of machine tools.
• Used in tape drives, floppy disc drives, printers and electric watches.
• The stepper motor also use in X-Y plotter and robotics.
• It has wide application in textile industries and integrated circuit fabrications.
• The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
• These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
• Stepper motors of microwatts are used in the wrist watches.
• In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
