2phase 5.6N.m 86HS97 4 pins cable connectors Nema34 86mm hybrid stepper motor

1.Electrical Specification:

Manufacturer Part Number: JK86HS97-2304-01JF
Number of phase: 2
Step Angle: 1.8 deg
Holding Torque: 5.6N.m (800oz.in)
Rated Current/phase: 6.51 A
Phase Resistance: 0.4 ohms± 10%
Inductance: 3 mH ± 20%(1KHz)

Physical Specification:

Frame Size: 86 x 86 mm
Body Length: 97 mm
Shaft Diameter: Φ12.7 mm
Shaft Length: 30.2 mm
Number of Leads: 4
Lead Length: 2000 mm
Weight: 3 kg

2.Genaral Specification of 86mm hybrid stepper motor:

3.Electrical Specification of Nema34 stepper motors:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
	( °)	(L)mm	A	Ω	mH	N.m	No.	Kg.cm	g.cm	Kg
JK86HS68-5904	1.8	67	5.9	0.28	1.7	3.4	4	0.8	1000	1.7
JK86HS68-2808	1.8	67	2.8	1.4	3.9	3.4	8	0.8	1000	1.7
JK86HS78-5504	1.8	78	5.5	0.46	4.0	4.6	4	1.2	1400	2.3
JK86HS78-4208	1.8	78	4.2	0.75	3.4	4.6	8	1.2	1400	2.3
JK86HS97-4504	1.8	97	4.5	0.66	3.0	5.8	4	1.7	2100	3.0
JK86HS97-4008	1.8	97	4.0	0.98	4.1	4.7	8	1.7	2100	3.0
JK86HS100-6004	1.8	100	6.0	0.36	2.8	7.0	4	1.9	2200	3.1
JK86HS115-6004	1.8	115	6.0	0.6	6.5	8.7	4	2.4	2700	3.8
JK86HS115-4208	1.8	115	4.2	0.9	6.0	8.7	8	2.4	2700	3.8
JK86HS126-6004	1.8	126	6.0	0.58	6.5	6.3	4	2.9	3200	4.5
JK86HS155-6004	1.8	155	6.0	0.68	9.0	13.0	4	3.6	4000	5.4
JK86HS155-4208	1.8	155	4.2	1.25	8.0	12.2	8	3.6	4000	5.4

Above only for representative products, products of special request can be made according to the customer request.

4.Drawing of JK86HS97 stepper motor:

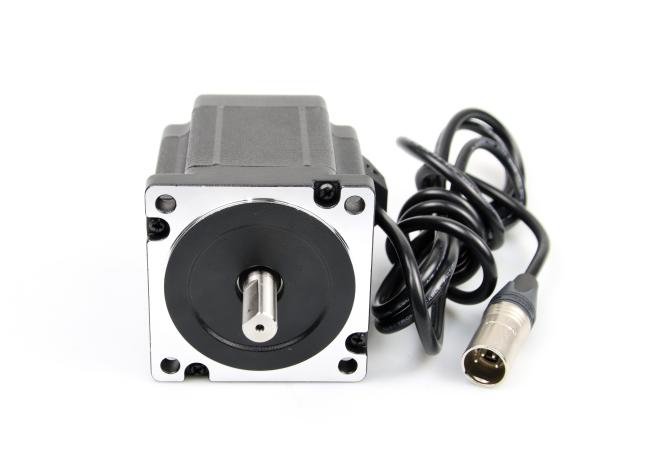

5. The picture of JK86HS97 :


6.Produce equipment:



7.Production Process:

8.Advantages of hybrid Step Motor:

The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.

   9.Applications of electric motor:

• As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
• They are used in numeric control of machine tools.
• Used in tape drives, floppy disc drives, printers and electric watches.
• The stepper motor also use in X-Y plotter and robotics.
• It has wide application in textile industries and integrated circuit fabrications.
• The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
• These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
• Stepper motors of microwatts are used in the wrist watches.
• In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
