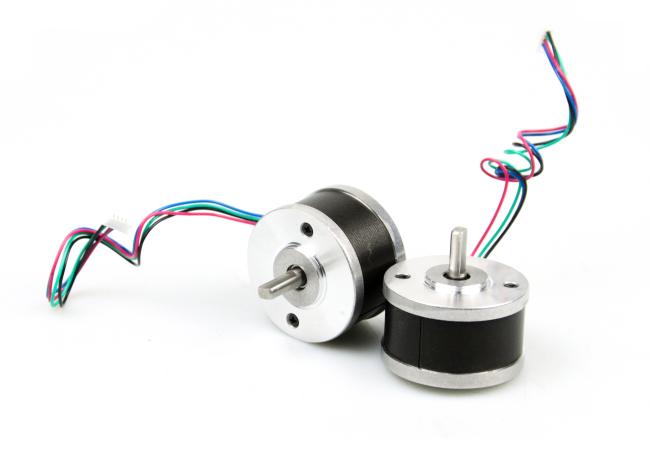

0.9° 5V 0.5A 4wire 1000g.Cm 36HM Nema 14 CNC Stepper Motor Driver
0.9° 5V 0.5A 4wire 1000g.cm 36HM Nema 14 CNC Hybrid Stepper Motor
With the development of science and technology, especially the development of permanent magnet materials, semiconductor technology and computer technology, these stepper motors have been widely used in industrial automation, robotics, textile and medical industries.
1.Genaral Specification of stepper motors:
* Model: JK36HM21-05042-03AF
* Stepping angle: 0.9°
* Voltage: 5V
* Current: 0.5A
* Resistance (Ohms): 10
* Inductance (mH): 8
* Phase: 2 phase
* Rated torque: 1000g/cm
* Diameter for the shaft: 5mm
* Net Weight: 0.13kg
| Step angle | 0.9° |
| Temperature rise | below 80 ℃ |
| Ambient temperature | -20 ℃ ~ + 50 ℃ |
| Insulation resistance | minimum 100MΩ, 500VDC |
| Dielectric strength | 500VAC for 1 minute |
| Shaft radial clearance | 0.02 max (450 g load) |
| Shaft axial clearance | 0.08Max. (450 g load) |
| Maximum radial force | 28N (20mm from flange) |
| Maximum axial force | 10N |
2.Electrical Specification of 36HM stepper moror:
|
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | g.cm |
Kg | |
| JK36HM12-0304 | 0.9 | 12 | 0.3 | 16.8 | 8.5 | 420 | 4 | 80 | 4 | 0.06 |
| JK36HM18-0404 | 0.9 | 19 | 0.4 | 12 | 5 | 560 | 4 | 100 | 6 | 0.1 |
| JK36HM21-0404 | 0.9 | 21 | 0.425 | 9 | 5 | 810 | 4 | 125 | 7 | 0.13 |

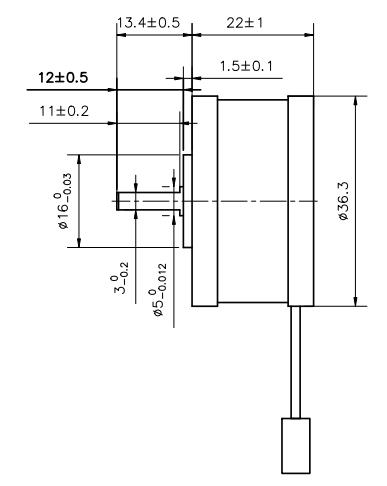

3.Details of JK36HM step motor:
4.Produce equipment:
5.Production Process:
6.Advantages of hybrid Stepper Motor
The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.
