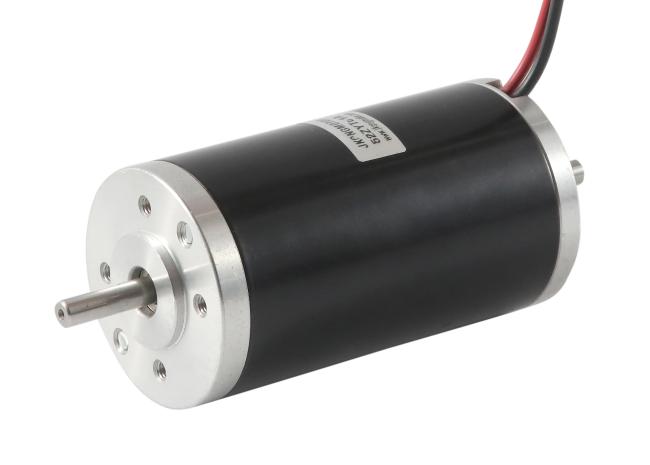

60v 3700rpm 0.11nm 43w 52ZYT01A Brush Electric DC Motor For Table Fan
A BRUShless DC motor is a rotating motor with a brush device that converts dc electrical energy to mechanical energy (a DC motor) or mechanical energy to direct electrical energy (a DC generator). It has the characteristics of fast start, timely braking, speed regulating smoothly in a large range, relatively simple control circuit, etc.
Motor Specifications:
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP40, option for IP54
Insulation class: F
Certified by CE and ROHS
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
| Model |
52ZYT01A |
52ZYT02A |
52ZYT02A |
52ZYT03A |
52ZYT03B |
| Rated Voltage | 24v (option for 12v up to 60vdc) | ||||
| Rated Speed (rpm) | 3700 | 3500 | 9736 | 3300 | 4200 |
| Rated Torque (Nm) | 0.11 | 0.20 | 0.20 | 0.27 | 0.35 |
| No load speed (rpm) | 4200 | 4200 | 10652 | 4000 | 5200 |
| Weight (Kg) | 0.85 | 0.98 | 0.98 | 1.16 | 1.16 |
| Motor Length (mm) | 95 | 110 | 110 | 125 | 125 |
| Output Power (W) | 43 | 73 | 204 | 93 | 154 |
A dc motor has a good starting and speed control performance, often used in the occasion of starting and speed regulation have higher requirements, such as a large reversible rolling mill, mine hoist, the hotel high-speed elevators, planing machine, electric locomotives, diesel locomotive, city tram, subway trains, electric bicycle, papermaking and printing machinery, ship machinery, large precision machine tools and large crane and other production machinery.

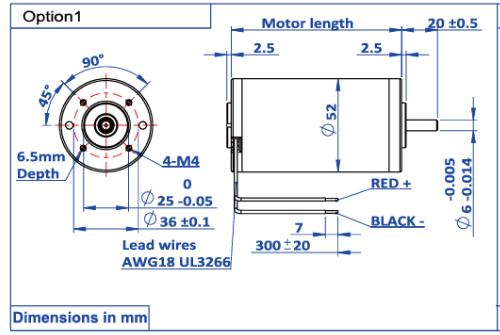

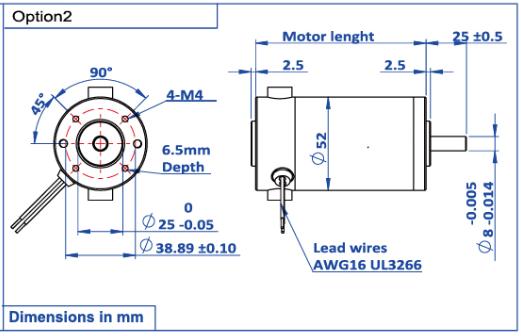

Drawing:
