1 , 5 , 18 , 20 Litres gyroscopic paint mixer for aqueous liquid and viscous liquid



Technical Data



Brief Introduction

The automatic gyroscopic mixer YJ-2A-02 designed by YIJIU Co., It works on the theory that the table revolve around the shaft meanwhile rotate on their axes with the character of high-efficiency , high-speed .It is suitble to different chemical liquids : paint colorant , coating , ink , glue , etc. Fit for big package and high viscosity chemical liquids mixing .
Can be used to mix chemical liquids : paint colorant , coating , ink , glue , etc.


Features

1. Mixing time setting: 15 second to 9 min 45 second (If special requirement,please tell us which time you want when place the order).
2. Inverter control the clamping force and intelligent identify the paint drum size and weight to give the correct mixing speed.
3. Adjustable Speed: 80r/min to 150r/min.
4. Safelock on the door, machine stop working when the door is open, make operation more safe.
5. Error alarm when wrong operation.With wheel under the bottom, convinient to move the mixer machine.



Sample Show

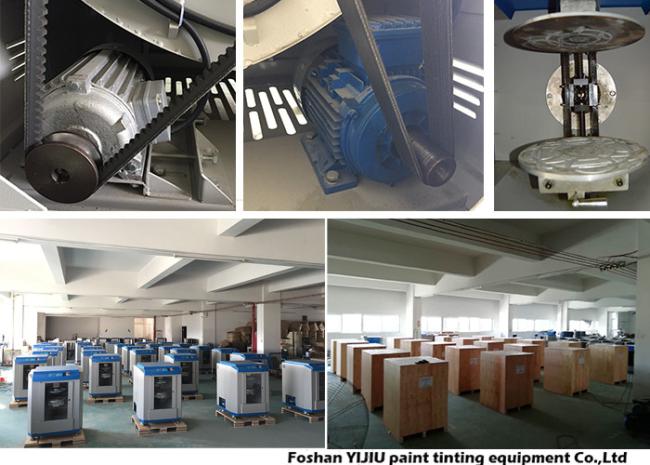

• There are two motor in the mixer, one is rotating motor, one is clamping motor.
• The belts is durable which imported from Japan.
• Top cover can open, convinient to maintain
• The lower clamping plate can be pulled out, easy to load the can.




Mixer machine FAQ

1. What's the max mixing ability?
20L, 35 kg, 5 US gallon

2. Can it be used for other liquid except paint?
yes, any liquid chemicals such as : ink , glue , coating , colorants

3. Which types of pails can be used for mixer?
Round or Square both OK, but the upper and bottom should be flat.

4.Can it adjust time and speed?
yes!  MixingTime can be set: 15S , 30S ,  45S...9mins 45s
Speed can be set: two levels, low speed for big cans and high speed for small cans.

5. Does the adjustable speed say (80 r/min --150 r/min) have the maximum rpm value of 150 rpm?
---Yes!
for big can(which with the height more than 26cm, the fastest is 100rpm/min.
for small can(which with the height less than 26cm, the fastest is 150rpm/min.
 6. Also, what is the default speed at the time of purchase?
- small can default speed: 130rpm/min
big can default speed: 80rpm/min

7. Can I operate the mixer after adjusting its clamp strength?
-Yes, you can

8. What year was YJ-2A-02 developed?
- year of 2010


Our Support to the Agent

• Inspection: The agent can send inspectors to our factory for inspection or we self-inspect following the technical requirements mentioned in contracts.
• Training:The agent can send personnel to our factory for free training on the machine, testing and maintaining.
• Warranty Service: We share the after-sales service with our agents, division is as follows: We provide free spare parts to our agents and help to judge the fault according to the failure phenomenon by E-mail within the 1st one year. However, if the issues is man-made, we will sell new spare parts to the agent at a favorable price.
• For easily damaged accessories: we recommend the agent prepare more for emergency use. When the retail customers have any issues on the machine, the agent should solve in time and all the cost of after-sales should be billed to the agent. In case of any remaining issues out of the agent's technical ability, our technician can be sent but all the service cost should be pay by the agent.


Our products

Automatic paint dispenser, Manual paint dispenser,Automatic paint mixer,Manual paint mixer,Automatic paint shaker. All our equipment machinery and products are developed and manufactured under stringent safety rules and meet CE.They are sold globally to retail paint stores, paint manufacturers, point of sale retailers and industrial users.
