BV Certificate Inflatable Marine Airbags 1.5X24M For Ship Launching
BV Certificate 1.5X24M Inflatable Marine Airbags For Ship Launching
Marine Rubber Airbag Introduction
6000 years ago, our ancestor begin to use log-rolling method to lift and move weights, which is still widely used in daily production and actual life nowadays. Marine rubber airbag is designed with soft rubber to lift and carry weights, based on log-rolling method.
Marine rubber airbag is an innovative product of Chinese own proprietary intellectual property rights. It has wide application like ship launching & upgrading, caisson lifting & moving, heavy weights lifting, underwater-engineering buoyancy aid. The marine rubber airbag is not limited to space and heavy machinery, which could efficiently shorten the construction period and save lots of funds.
Specifications
| Diameter(m) | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | |
| Medium Pressure (4-5) |
Test Pressure | 0.14-0.16 | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 |
| Working Pressure | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 | 0.06-0.08 | |
| High Pressure (6-8) |
Test Pressure | 0.22-0.26 | 0.20-0.24 | 0.15-0.20 | 0.13-0.16 | 0.12-0.15 |
| Working Pressure | 0.20-0.24 | 0.17-0.22 | 0.13-0.18 | 0.11-0.14 | 0.10-0.13 | |
| Diameter | Working Pressure | Working height | Bearing capacity per unit length | |
| KN/m | Ton/m | |||
| D=1.0m | 0.20Mpa | 0.6m | 125.76 | 12.82 |
| 0.5m | 157.16 | 16.02 | ||
| D=1.2m | 0.17Mpa | 0.7m | 133.61 | 13.62 |
| 0.6m | 160.3 | 16.34 | ||
| D=1.5m | 0.13Mpa | 0.9m | 112.63 | 12.5 |
| 0.8m | 143.03 | 14.58 | ||
| 0.7m | 163.43 | 16.66 | ||
| D=1.8m | 0.11Mpa | 1.1m | 120.96 | 12.33 |
| 1.0m | 138.22 | 14.09 | ||
| 0.9m | 155.59 | 15.86 | ||
| 0.8m | 172.85 | 17.62 | ||
| 0.7m | 190.22 | 19.39 | ||
| D=2.0m | 0.10Mpa | 1.2m | 125.76 | 12.82 |
| 1.1m | 141.46 | 14.42 | ||
| 1.0m | 157.16 | 16.02 | ||
| 0.9m | 172.85 | 17.62 | ||
| 0.8m | 188.64 | 19.23 | ||
Marine Rubber Airbag Application
- Ship Launching & Upgrading
With more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.
- Weight Lifting & Moving

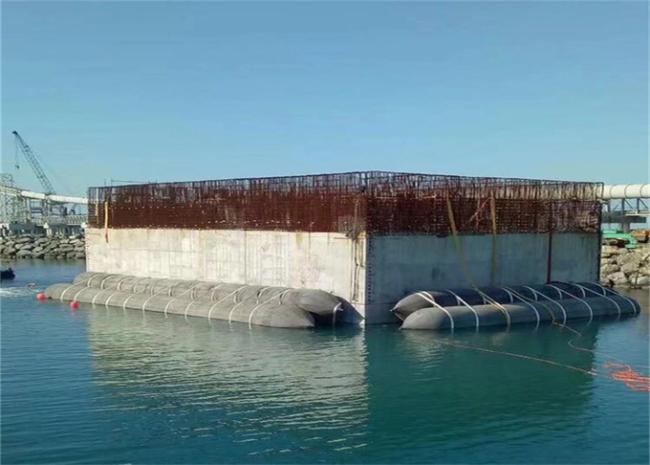

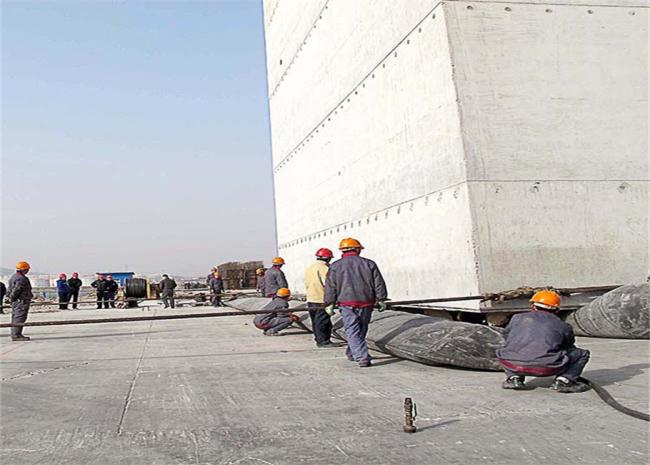

Marine rubber fend could be applied to caisson lifting, launching, moving and transporting in port constructing projects
- Buoyancy Aid & Salvage
Because marine rubber airbag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.
Our Services
Why do customers like to choose us?
1. Value for Money, you will get the best price based on the excellent quality.
2. Unrivalled Expertise, we promise first-rate product quality and service.
3. Good product lifespan and quality warranty, our products has a long servicing life for 10-15years.
4. Professional after-sales service. We will help our customers to solve any product's questions within 24 hours.
5. For our customers, we will provide a set of repaire tools with free.
Thanks for reading, if you have any interest or questions, please feel free to contact me.
