10 Layers Pneumatic Ship Launching Marine Salvage Bags With High Pressure
10 Layers Pneumatic Ship Launching Marine Salvage Bags With High Pressure
►Marine Rubber Airbag introduction
Marine Rubber Airbag is China independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting, handling, installation of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are widely used in the world. The Products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, marine rubber airbag is become more safety, effective and green environmental protection.
Whole Intertwine Technology
"Henger" Airbags overall frame structure uses cross whole intertwine technology, the overall structure is more reasonable, texture clear, no juncture, high loads, more safety than lap technology (roller), more than 20% bearing capacity.
Framework
► Features of Marine Rubber Airbag
High Kneading-resistance Capability
When the airbag is rolling under the ship bottom, it will suffer a “kneading force” from ship bottom and ground because of not uniform rolling speed, which could case problems like delamination, layer buckling, etc.
Henger improved the manufacturing technique and raw material formula to strengthen kneading-resistance capability of the airbag and avoid worse accident .Each layers of airbag are painting with specially formulated mucilage to dissolve dust & impurities.The specially formulated mucilage also higher the adhesiveness among each layers to guarantee the air tightness.While most of friendly competitors cut this process in production to save manufacturing cost.
► Product Advantage
1. Long lifespan
2. Movable and reusable
3. Saving investment costs
4. Saving labor and time
►Marine Rubber Airbag Application
Weight Lifting & Moving
Marine rubber fend could be applied to caisson lifting, launching, moving and transporting in port constructing projects
| Our advantages |
|---|
|
1.We have more than 10 years of production experience in airbags, marine fenders and other marine supplies, and have our own production workshop with rich experience. |
|
2.We are a manufacturer and we can communicate directly, which saves us a lot of time. |
|
3.Regarding delivery, our manufacturer can do some adjustment, if there is an urgent need, we can arrange production for you in advance. |
| 4.There isn't any middleman between us, the price will be very competitive. |
►Marine Rubber Airbag Parameter
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |

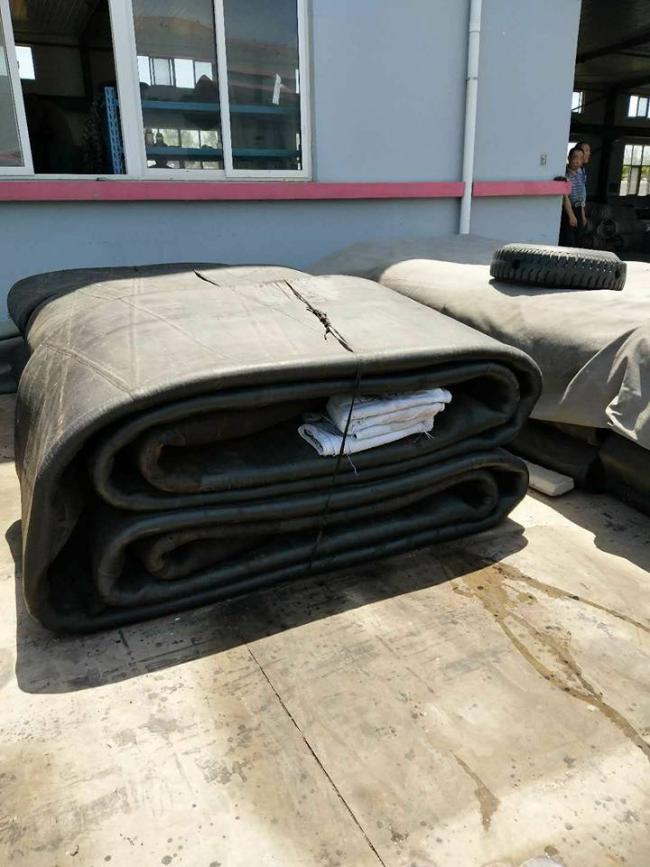

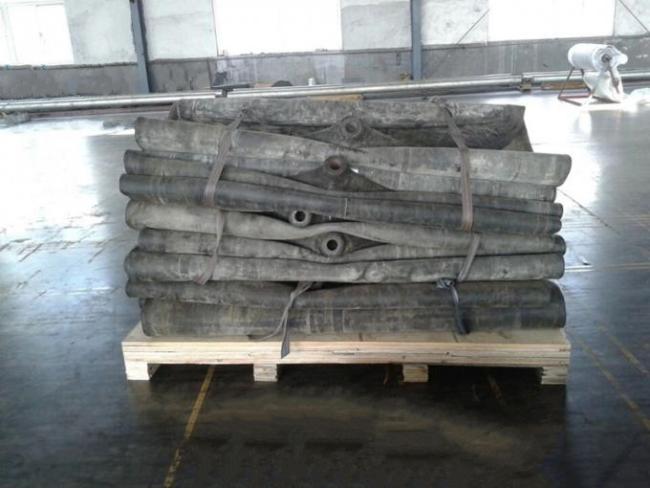

►Marine Rubber Airbag packing
