Type Ⅵ Hydro-pneumatic Type Fender

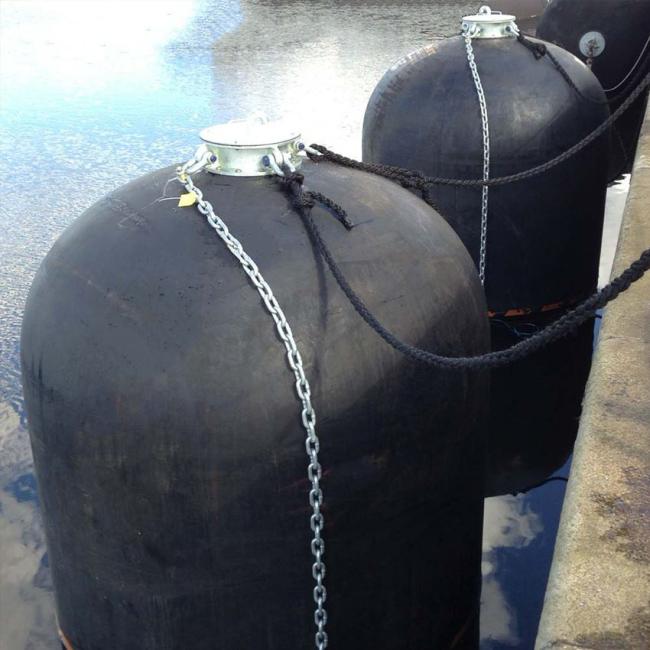

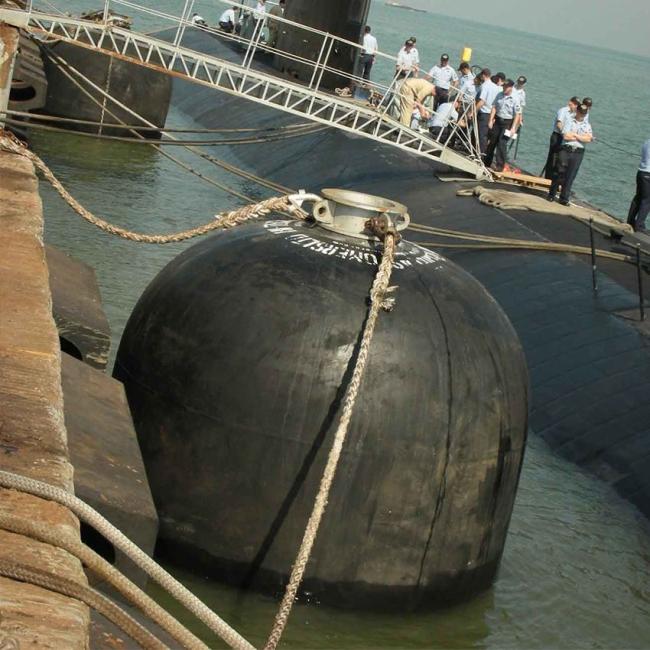

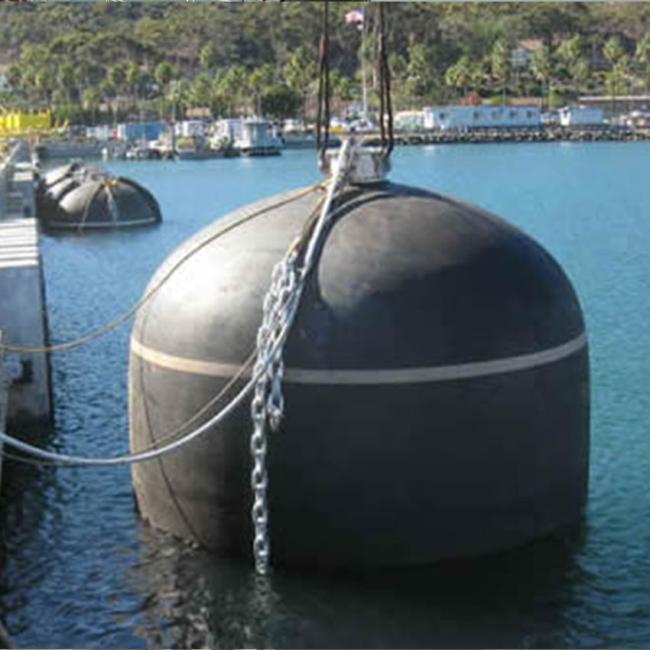

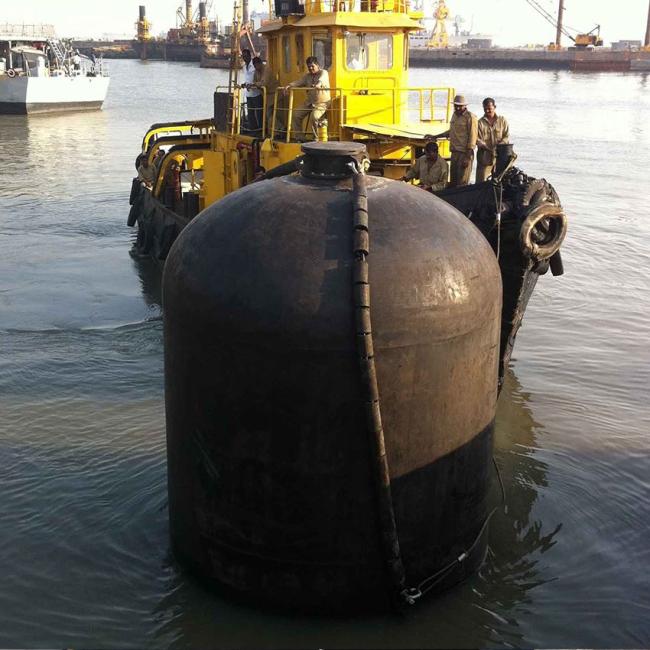

Submarines and other vessels which contact fenders below waterline require a unique solution. Type Ⅵ hydro-pneumatic type fender are specially adapted to this application.
Introduction:
Submarines and other vessels which contact fenders below waterline require a unique solution. Type Ⅵ hydro-pneumatic type fender are specially adapted to this application. The fender body is partially water-filled, then pressurised with air and ballasted to make it stand vertically, fender draft and performance can be tuned by altering the water: air ratio and inflation pressure.
Details Of Type Ⅵ hydro-pneumatic type fender:
|
Fender size diameter*length |
Initial internal pressure 50kPa | Initial internal pressure 80kPa | ||
|
Guaranteed energy absorption (GEA) |
Reference value kPa |
Guaranteed energy absorption (GEA) |
Reference value kPa |
|
| 500 x 1000 | 6 | 67 | 8 | 85 |
| 600 x 1000 | 8 | 74 | 11 | 98 |
| 700 x 1500 | 17 | 137 | 24 | 180 |
| 1000 x 1500 | 32 | 182 | 45 | 239 |
| 1000 x 2000 | 45 | 257 | 63 | 338 |
| 1200 x2000 | 63 | 297 | 88 | 390 |
| 1350 x 2500 | 102 | 427 | 142 | 561 |
| 1500 x 3000 | 153 | 579 | 214 | 761 |
| 1700 x 3000 | 191 | 639 | 267 | 840 |
| 2000 x 3500 | 308 | 875 | 430 | 1150 |
| 2500 x 4000 | 663 | 1381 | 925 | 1815 |
| 2500 x5500 | 943 | 2019 | 1317 | 2653 |
| 3300 x 4500 | 1256 | 1884 | 1752 | 2742 |
| 3300 x 6500 | 1814 | 3015 | 2532 | 3961 |
| 3300 x 10600 | 3067 | 5257 | 4281 | 6907 |
| 4500 x 12000 | 6473 | 7984 | 9037 | 10490 |
Type Ⅵ hydro-pneumatic type fender Features:
The performance can be adjusted by changing the air-water ratio
The required draft can be adjusted
Low hull pressure
Self-regulation when the tide changes
Low installation and maintenance costs
FAQ:
1. "I have the submarine's specifications, but I don't know how to choose the submarine's fender size. Can you help me?"
Answer: You don't need to worry at all. We have more than 20 years of production and sales experience. As long as you provide me with the corresponding parameters, we can suggest the appropriate size and number of submarine fenders for you.
2. "I want to try your submarine fender, but I have never used it, and I don't know how to use it. Can you help me?"
Answer: You don't need to worry at all. We will provide you with instructions when shipping, and send them together with the submarine fender. You can contact me if you have any questions during the later installation and use.
3. "What is the minimum order quantity for your submarine fender?"
Answer: Our minimum order quantity is 1PC.
Henger Service:
1. Hener has one-to-one VIP service.
2. Hener has lifetime after-sales service.
3. Hener will recommend the appropriate size and number of submarine fenders and other professional suggestions for you according to the actual situation and the parameters provided by the customer.
4. Any questions about underwater fenders will be answered within 24 hours.
5. Teach customers to use our submarine shields on site.
