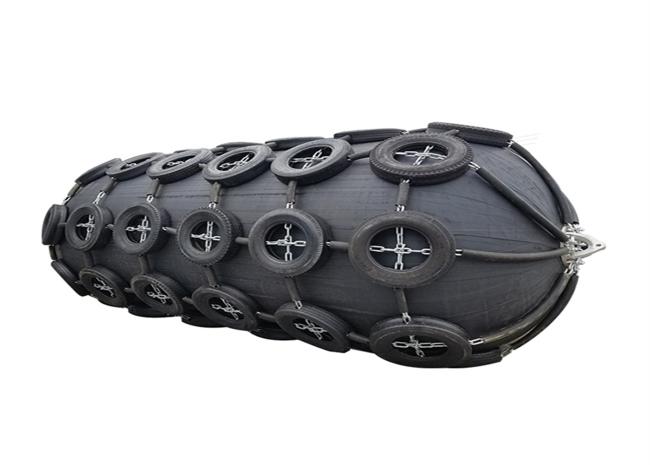

Yokohama Type Rubber Boat Fender Pneumatic Marine Fenders With Tire Sheath Type
Pneumatic Rubber Fender
1. Pneumatic rubber fender introduction
Progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures.
Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.Such as VLCC, CONTAINER VESSEL, OFFSHORE SEAR TASK PLATFORM, LARGE SHIPYARD AND DOCK,LARGE SHIP AND CRUISE SHIP etc.
Since its creation until today, Henger more than 10,000 fenders have been supplied worldwide both for ship-to-ship and ship-to-dock operations serving our valuable customers.These fenders play a critical role in the safe operation of ship berthing and mooring.
2. Pneumatic rubber fender Parameter
| Pneumatic 50 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection(R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10 % kN |
Reference value kPa |
||
| 500 x 1000 | 50 | 6 | 64 | 132 |
| 600 x 1000 | 50 | 8 | 74 | 126 |
| 700 x 1500 | 50 | 17 | 137 | 135 |
| 1000 x 1500 | 50 | 32 | 182 | 122 |
| 1000 x 2000 | 50 | 45 | 257 | 132 |
| 1200 x2000 | 50 | 63 | 297 | 126 |
| 1350 x 2500 | 50 | 102 | 427 | 130 |
| 1500 x 3000 | 50 | 153 | 579 | 132 |
| 1700 x 3000 | 50 | 191 | 639 | 128 |
| 2000 x 3500 | 50 | 308 | 875 | 128 |
| 2500 x 4000 | 50 | 663 | 1381 | 137 |
| 2500 x5500 | 50 | 943 | 2019 | 148 |
| 3300 x 4500 | 50 | 1175 | 1884 | 130 |
| 3300 x 6500 | 50 | 1814 | 3015 | 146 |
| 3300 x 10600 | 50 | 3067 | 5257 | 158 |
| 4500 x 9000 | 50 | 4752 | 5747 | 146 |
| 4500 x 12000 | 50 | 6473 | 7984 | 154 |
3. Pneumatic Rubber Fender Features
♦ Advantage:
● Safety and Reliability
● No Deterioration or Variation in Performance● Advantages at Inclined Berthing
● Most Cost Competitive System● Soft Reaction Force for Ship and Jetty Structure
● Lower Mooring Forces under Rough Weather Conditions
"Henger" management system has passed ISO9001:2008 certification, "Henger" guarantees the high standards and excellent performance of all products. "Henger" attaches great importance to the quality control of rubber fenders, and each fender is tested according to ISO17357:2002 requirements.

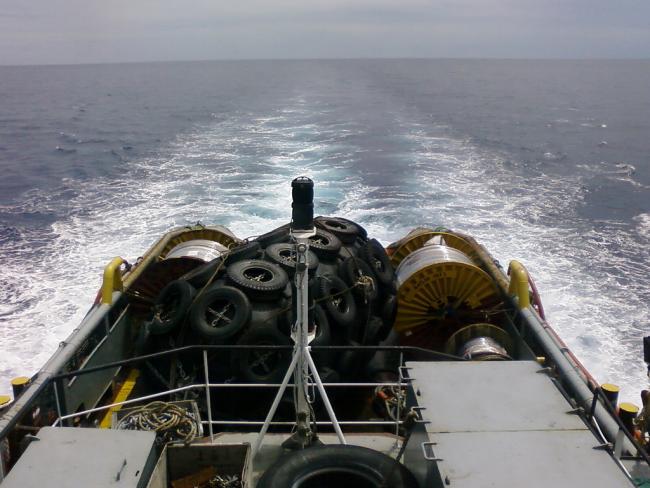

4. Pneumatic Rubber Fender Transportation
Henger has many deliver ways to choose and We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
5. Pneumatic Rubber Fender Application
1. large crude oil carrier, VLCC
3. offshore sea task platform
4. large shipyard and dock
5. large ship and cruise ship
6. army harbor dock
7. large bridge pier
6. After-sale service
The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.
After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.
Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
Qingdao Henger Shipping Supplies Co., Ltd provides following services to all customers.
1. 24 hours instant online technical consultation and support.
2. 24 months warranty period(without any artificial damage) and free repairing service within warranty period.
3. lifetime reparing service.
