50kpa Yokohama Pneumatic Fender Ship Anticollision Pneumatic Rubber Fender

Price Negotiable
Price: $100-$1000
MOQ: 1
Delivery Time: 10
Brand: Henger
Product Description

Yokohama Type And Pneumatic Fenders Ship Anticollision Pneumatic Rubber Fender

Qingdao Henger Shipping Supplies co.,ltd as a manufacturing plant, The Company is a production, scientific research and design,product development, technical services for the integrated enterprise.The Company is mainly produce marine rubber airbags and marine rubber fenders , which as the leading enterprise has passed the certification of CCS , ISO9001:2008, SGS, LR etc.

Why do customers like to choose us?





1. Value for Money, you will get the best price based on the excellent quality.



2. Unrivalled Expertise, we promise first-rate product quality and service.



3. Good product lifespan and quality warranty, our products has a long servicing life for 10-15years.



4. Professional after-sales service. We will help our customers to solve any product's questions within 24 hours.



5. For our customers, we will provide a set of repaire tools with free.

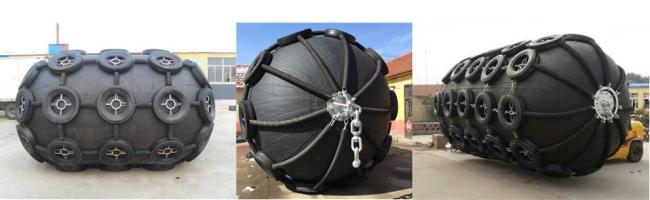

boat rubber fenderOur equipment :

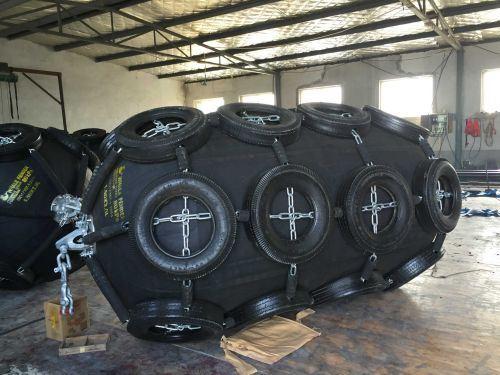

IMG_1605



Product Description





ship anticollision pneumatic rubber fender is the advanced anti-collision device for marine application in the world. Pneumatic Rubber Fender also known as floating fender or Yokohama type rubber fender, it is often installed on the terminal or ship, which aims to absorb or reduce the collision energy between ship to ship and ship to dock. This kind of product can protect the ship or dock from the damage of collision. With inner compressed air, it can float on the water and widely used as protecting medium equipment.

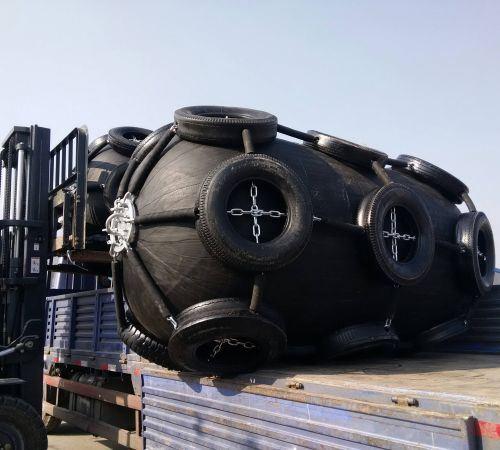

hydro pneumatic fender pneumatic yokohama rubber



ship anticollision pneumatic rubber fender Features:



1. Large compression deformation, low reaction force, high energy absorption



2. Good floating performance, can meet the needs of the water level change



3. With compressed air as medium, the collision energy consumption by compressed air power



4. Easy installation and long service life



Parameter



Pneumatic 50 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection(R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10 % kN

Reference value

kPa

500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154





Pneumatic 80 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection (R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10% kN

Reference value

kPa

500 x 1000 80 8 85 174
600 x 1000 80 11 98 166
700 x 1500 80 24 180 177
1000 x 1500 80 45 239 160
1000 x2000 80 63 338 174
1200 x 2000 80 88 390 166
1350 x 2500 80 142 561 170
1500 x 3000 80 214 761 174
1700 x 3000 80 267 840 168
2000 x 3500 80 430 1150 168
2500 x 4000 80 925 1815 180
2500 x 5500 80 1317 2653 195
3300 x 4500 80 1640 2476 171
3300 x 6500 80 2532 3961 191
3300 x 10600 80 4281 6907 208
4500 x 9000 80 6633 7551 192
4500 x 12000 80 9037 10490 202
