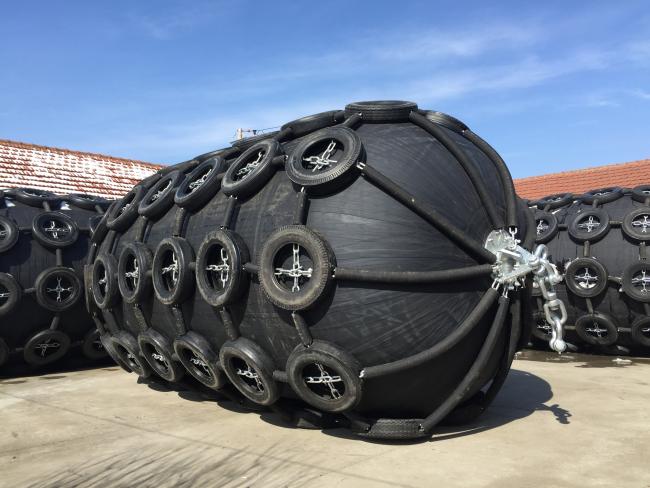

IS0 17357 BV Certificate Yokohama Rubber Fender

Yokohama Rubber Fender is the advanced anti-collision device for marine application in the world. Yokohama rubber fender also known as floating fender or Yokohama type marine rubber fender, it is often installed on the terminal or ship, which aims to absorb or reduce the collision energy between ship to ship and ship to dock. This kind of product can protect the ship or dock from the damage of collision. With inner compressed air, it can float on the water and widely used as protecting medium equipment. Size : D0.5 m x L1.0 m ~ D 4.5x L9.0m. “XINCHENG” china marine Pneumatic rubber fenders are produced in strict accordance with the ISO17357:2014-1 international quality standard. Nowadays, our products have been exported to all over the world.

Advantages Yokohama rubber fender:

1. Large compression deformation, low reaction force, high energy absorption

2. Good floating performance, meet the needs of water level change

3. With compressed air as medium, the collision energy consumption bu compressed air power

4. Easy installation and long service life

Structure of Yokohama rubber fender

1. Outer Rubber

Cover outside on the ball of rubber layer, which is used to protect skeleton material and inner rubber ball from damage of external force, the main features: high strength, wear resistance, ageing resistance and tear resistance.

2. Synthetic cord reinforced rubber layer

Reinforced cord rubber layer is composed of winding Synthetic cord layer, It is mainly used for maintain the internal air pressure, which has good elasticity, no deformation and high power etc.

3. Inner Rubber

On the ball inside the rubber layer, which is used to prevent air leakage and control the ball pressure.

 4. Flange opening

The metal parts at both ends of fender, which can be fitted with charging valve and safety valve.

Synthetic-tyre-cord layers commonly used in tyres, have been proved to provide strong efficient reinforcement layers in fenders. Each layer is coated with rubber compound on both sides as well as in between synthetic-tyre-cord threads, hence isolating all cords from each other.

1. Wrap threads that run vertically through the synthetic -tyre-cord pattern.

2. Weft threads that run perpendicular to the wrap threads.

Yokohama rubber fender dimensions

NOTE: 1. REACTION FORCE AND ENERGY ABSORPTION TOLERANCE IS ±10%

           2. WEIGHT TOLERANCE IS ±10%

           3. SPECIAL SIZE CAN BE PRODUCED FOLLOW CUSTOMER'S NEEDS

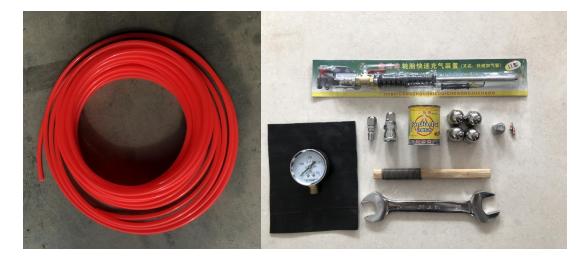

Henger Yokohama rubber fender are fitted with FREE repair and tool box for each client. At the same time, we also provide our clients with FREE instruct maintenance service.

How to inflate YOKOHAMA rubber fender?
