260m Deep / 73KW Drilling Rig for Geothermal / Civil Drilling Southeast Asia
Price:
Negotiate
MOQ:
1SET
Delivery Time:
5-8 workday
Brand:
SHITAN
Product Description
260m Deep / 73KW Drilling Rig for Geothermal & Civil Drilling
This high-performance drilling rig features a powerful 73KW engine capable of reaching maximum drilling depths of 260 meters with hole diameters ranging from 105-305mm. Designed specifically for Southeast Asian geological conditions, it offers versatile drilling capabilities for both loose strata and bedrock formations. With an impressive penetration rate of 10-35m/h, 30° climbing angle, and 2.5km/h travel speed, this equipment provides exceptional mobility for challenging mountainous terrain and construction sites.
Technical Specifications
| Type | Water Well Drilling Rig |
| Usage | Agricultural/Industrial/Construction Water |
| Drilling Diameter Range | Maximum 300mm |
| Maximum Drilling Depth | 0-260 meters |
| Place of Origin | Hebei, China |
| Engine Power | 73KW |
| Dimensions | 4m × 1.8m × 2.3m |
| Weight | 6T |
Advanced Features
- Three drilling methods: top drive hydraulic rotation, down the hole impact, and mud drilling for superior geological adaptability
- Working wind pressure of 1.25-3.5Mpa suitable for both loose layers and bedrock formations
- Footage efficiency of 10-35m/h, significantly outperforming similar equipment
- Maximum turning torque of 6900N*m providing ample drilling power
- 18T lifting force with 1.2T auxiliary winch for efficient heavy operations
- Walking speed of 2.5km/h and 30° climbing angle enabling flexible mountain movement

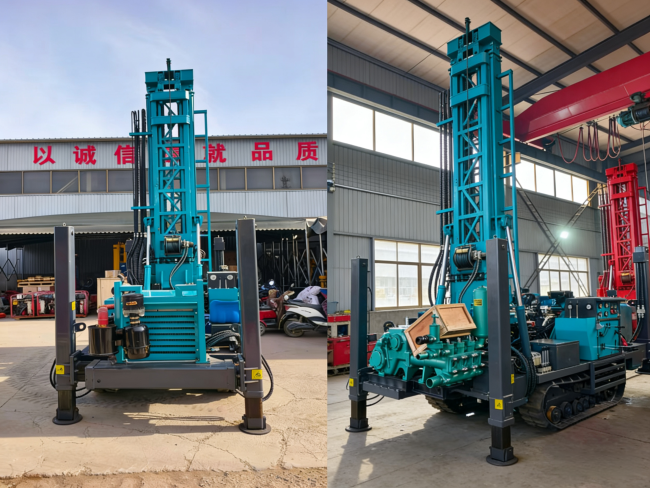

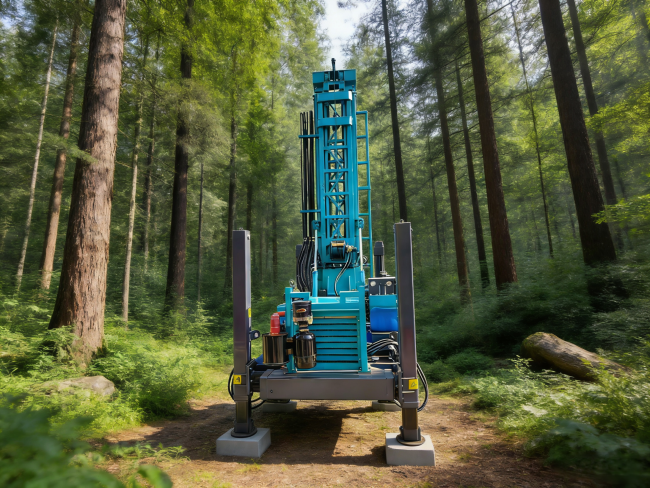

Product Gallery
Ideal for industrial, civil engineering, and geothermal drilling applications across Southeast Asia. This versatile rig combines powerful performance with exceptional mobility for challenging terrain operations.
