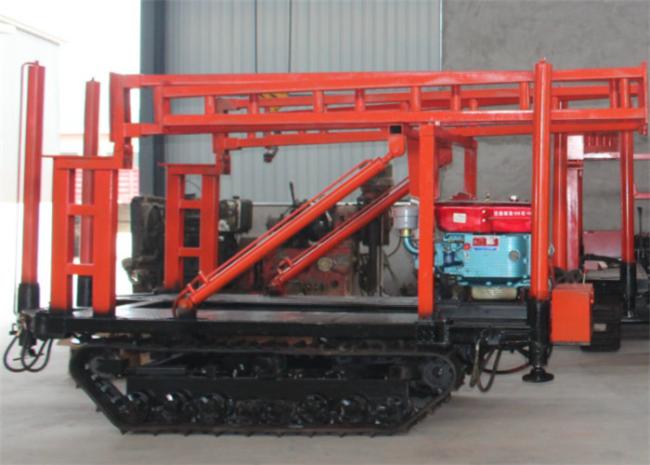

Professional Water Well Drilling Rig 380V 200m Depth With S1105 18HP Diesle Engine
Price:
USD3800-USD5200/SET
MOQ:
1SET
Delivery Time:
5-10 days after we receive the prepaid
Brand:
ShiTan
Product Description
200m Depth Tractor Mounted Water Well Drilling Rig/Machine To Dig Deep Wells
Product Application
water well drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole, drilling and direct grouting, civil wells and earth temperature central air-conditioner, ect.
|
SPECIFICATIONS FOR ST200 WATER WELL DRILLING RIG
|
|
Unity machine parameter
|
|
|
Drilling depth
|
200m
|
|
Max. open hloe caliber
|
300mm
|
|
Drilling angle
|
90°~75°
|
|
Drill weight (No include power)
|
600kg
|
|
Unity machine dimensions
|
1730*860*1360mm |
|
Spindle
|
|
|
Spindle speed
|
130, 300, 480, 730, 830, 1045r/min
|
|
Spindle stroke
|
450mm
|
|
Hoist
|
|
|
Max.single line hoisting capacity
|
1600kg
|
|
Single line lifting speed
|
1.06, 0.67, 0.32m/s
|
|
Wirerope caliber
|
13mm
|
|
Wirerope cubic measure
|
35m
|
|
Hug floodgate caliber
|
254mm
|
|
Hug folldgate belt width
|
50mm
|
|
Distance between drill and hole
|
230mm
|
|
Mud pump
|
|
|
Type
|
Horizontal single urn twin-action
|
|
Displacement
|
170L/min
|
|
Maximum pressure
|
1.5Mpa
|
|
Work pressure
|
0.7Mpa
|
|
Power
|
|
|
Diesle engine
|
S1105 18HP
|
|
Electric motor
|
Y160M—4 15KW
|
