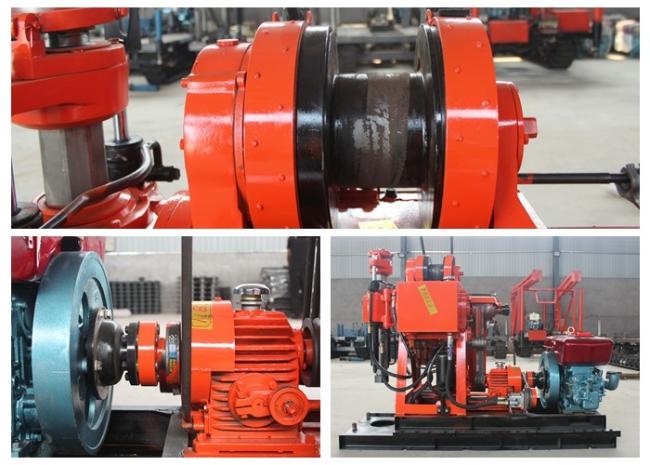

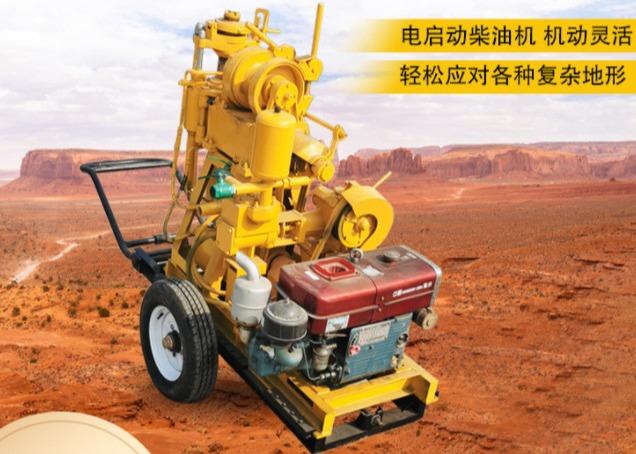

XY-1 Water Well Drilling Rig Information
XY-1 Small hydraulic core drilling rig is a kind of small-scale sampling and drilling equipment widely used in plains, mountainous areas and areas with inconvenient transportation and energy. It has the advantages of compact structure, small occupied area, light weight and convenient movement. It is suitable for geological sampling exploration, geological core drilling, small grouting holes, blasting holes, grouting holes, etc. in railway, water conservancy, water wells, construction projects and outdoor mountain areas. Diamond, composite and alloy bits can be selected for drilling according to different formations.
XY-1 Water Well Drilling Rig Technical Data
| Drill | Swivel Head | ||
|
Drilling depth
|
Max.130m |
Spindle speed
|
1010,790,470,295,140(r/min) |
|
Hole diameter
|
Max.130mm | Spindle stroke | 450kmm |
| Drill rod diameter | 42mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | ||
| Rated speed | 1500r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 15KN | Model(diesel engine | ZS1105 |
| Hoisting drum revolution |
121,76,36(r/min)
|
Rated power | 12.1KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG | ||
| SIZE | 1620*970*1560mm | ||
XY-1 Water Well Drilling Rig Main uses:
◇ engineering investigation ◇ geophysical and geochemical exploration drilling sampling ◇ advanced drilling
◇ drilling and grouting ◇ pilot holes of embedded parts ◇ various blasting drilling ◇ inspection holes
◇ small household water wells ◇ regional geological survey ◇ mine vein exploration
◇ ore grade evaluation ◇ geotechnical engineering detection
XY-1 Water Well Drilling Rig Advantages
1. The drilling rig adopts automatic telescopic drilling rig with two high strength cylinders as support, and a group of hydraulic valves to control the drilling rig supine operation is time-saving, labor-saving, safe and reliable.
2. The chassis adopts rubber track, which is light in weight. It can reduce the noise of vehicle running mechanism, reduce the vibration of vehicle body, greatly reduce the fuel consumption, and can walk on urban roads without harming the road surface.
3. The chassis has hydraulic high legs, which can be used for leveling drill rigs, loading and unloading trucks, and can be used as auxiliary support when working.

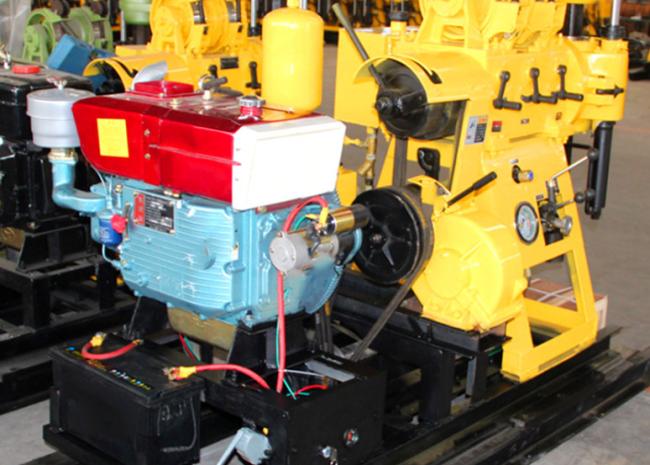

4. The use of 24V electric starting diesel engine reduces the operator's labor intensity, especially in the cold season, when the starting of diesel engine is difficult, it shows great superiority.
5. This machine is equipped with BW-160 mud pump, which has high flow rate, high pressure and convenient maintenance.
6. Hydraulic pipe-twisting machine (75-168mm) can be installed to improve work efficiency and reduce labor costs.
