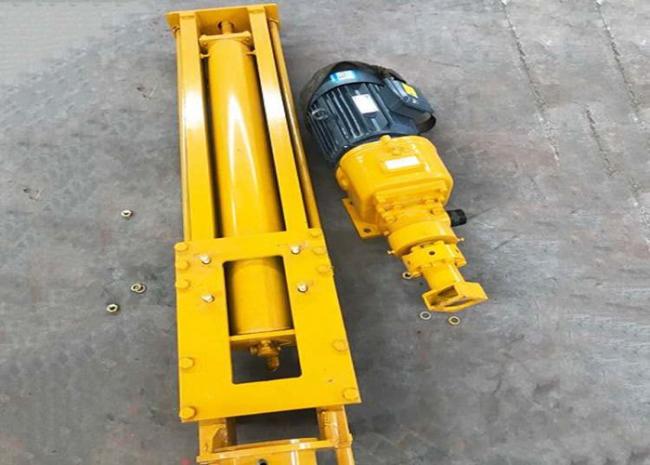

Mountain Hammer Rock Core Drilling Machine 200m Depth 220V / 380V
200m Depth Mountain Hammer Core Drill Rig for Core Drilling
Product Characteristics:
1. Multi-purpose:suitable for drilling and engineering construction,widely used for engineering, civil drilling,geothermal drilling.
2. Good quality:it has the configuration standardization compact structure, low failure rate characteristics.
3. Applicable areas:it can work in any temperament,and mostly used in mountain,foothills areas.
4. Fast speed:drilling speed is 1m/3-7minutes,but other brand machine is more slowly than it.
5. Cost little:it can work with 2 people,save manpower cost,and its drilling speed is more quickly.
6. Motor:it can work with the motor for 11Kw,and with it you can configuration air compressor.
Product Parameter:
| Mode | YG-KQZ200D |
| Hole diameter | 80-219mm |
| Hole depth | 200m |
| Total weight | 1800kg |
| Use pneumatic | 1.45-2.5mpa |
| Motor power | 11kw |
| One-time launch length | 1.5m |
| Drill post back speed | 52 |
| Gas consumption | 14.5-26 m3/min |
| Drilling direction | ground into 45-90 degrees |
