Durable Track Transporter crawler carrier featuring rubber track model 400 90 54 and 1932mm wheel base for off road transport tasks
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
7-10 days
Brand:
JINZHOU SHITAN
Product Description

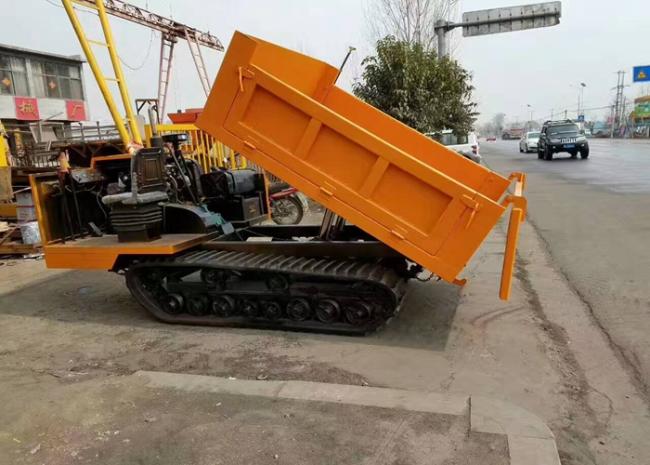

Professional Crawler Dump Truck / Carrier For Daily Transport 28 Horsepower
Key Specifications
| Attribute | Name |
|---|---|
| Value | crawler carrier |
| Type | track dump carrier |
| Model of Rubber Track | 400*90*54 |
| Mini Crawler Dump Truck Wheel Base | 1932mm |
| Ground Clearance | 280mm |
| Track Dump Carrier Capacity | 1m3 |
| Dumping Height | 570mm |
| System Pressure | 16mpa |
Detailed Product Features
- Body weight: 1.4 tons
- Weight: 2 tons
- Lorry-mounted crane hoisting capacity: 1 ton
- Boom lifting height: 3 m
- Gear and speed: 3 forward speeds + 1 reverse (8 km/h fastest, 0.6 km/h slowest)
- Standard car size: 1.6 m * 2.0 m (customizable)
- Climbing ability: 28 degrees
- Engine power: 28 horsepower
- Obstacle clearance: 30 cm
- Vehicle dimensions (L*W*H): 340 cm * 160 cm * 120 cm
- Chassis dimensions (L*W*H): 195 cm * 160 cm * 45 cm
- Diesel engine model: WL-28
- Diesel power: 20.24 kw / 2200 r/min
- Ground clearance: 25 cm
- Packing case dimensions (L*W*H): 180 cm * 160 cm * 40 cm (customizable)
- Road load capacity: 2000 kg
- Maximum gradient load: 1200 kg
- Speed range: 1.2 km/h (slowest) to 6 km/h (fastest)
- Wading depth: 40 cm
- Mud wading depth: 20 cm
- grounding length: 130 cm
- Crawler type: 400 mm
